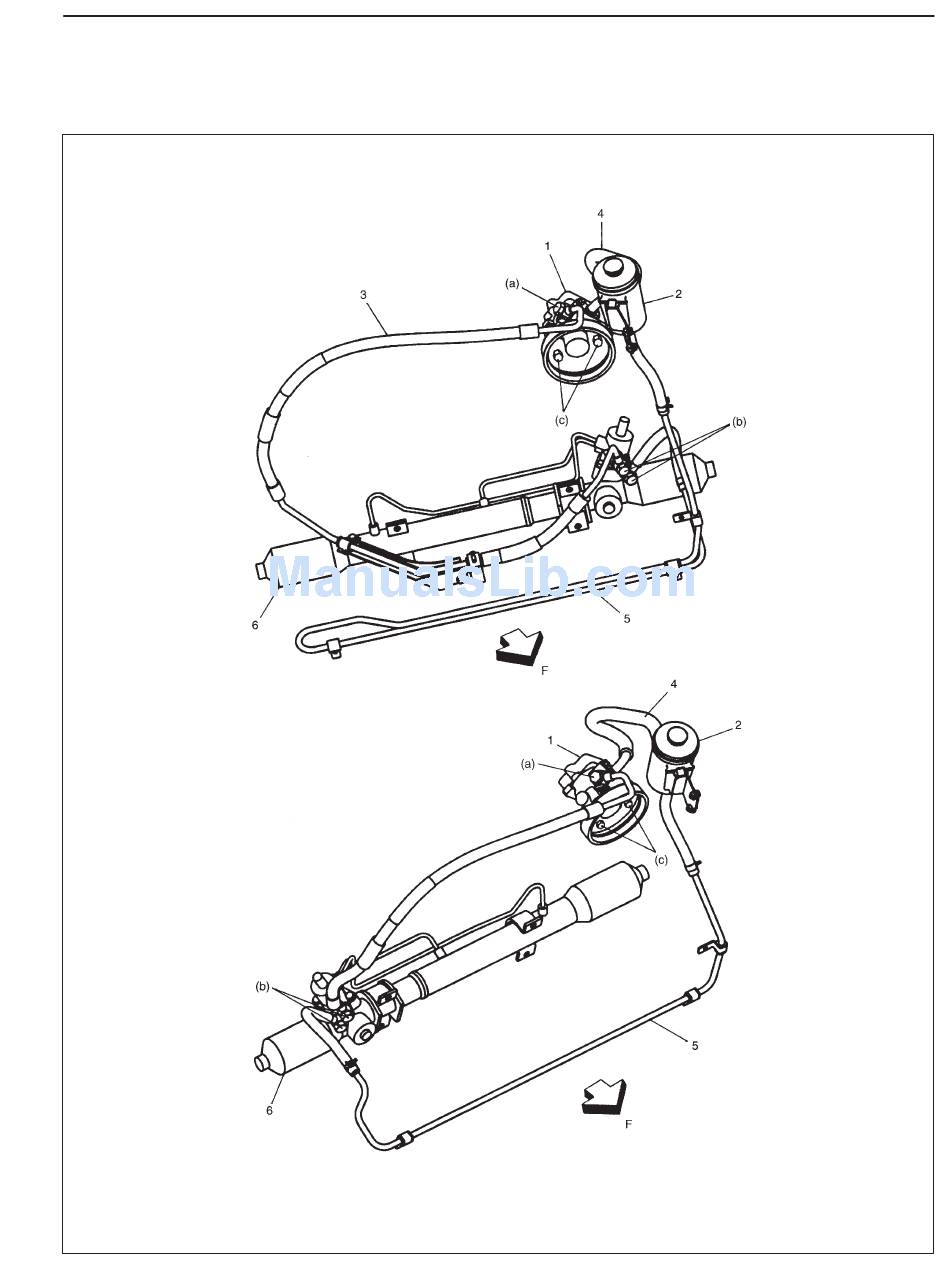

POWER STEERING PUMP

[LH]
[RH]

ON-VEHICLE SERVICE

1. Power steering pump assembly
2. P / S fluid reservoir
3. High pressure hose & pipe
4. Suction pipe
5. Low pressure return pipe
6. Steering gear case
POWER STEERING (P / S) SYSTEM 3B1-5
Tightening Torque
.
(a): 60 N m (6.0 kg-m, 43.5 lb-ft)
.
(b):35 N m (3.5 kg-m, 25.5 lb-ft)
.
(c): 25 N m (2.5 kg-m, 18.5 lb-ft)
[LH] : For left hand steering vehicle
[RH]: For right hand steering vehicle
F : Forward
