Terminal Server Graphical User Interface

You need the following minimum software to configure the terminal server using a web browser;
• Java enabled browser such as Internet Explorer
• MPS4.1 supports Java 6 and Java 7
Avaya recommends that Java 6 or later be in place to support the next generation of the MRV
firmware. Usually, the first OSCAR in the MPS 500 is used for the HyperTerm and the browser.

Making the Initial Connection

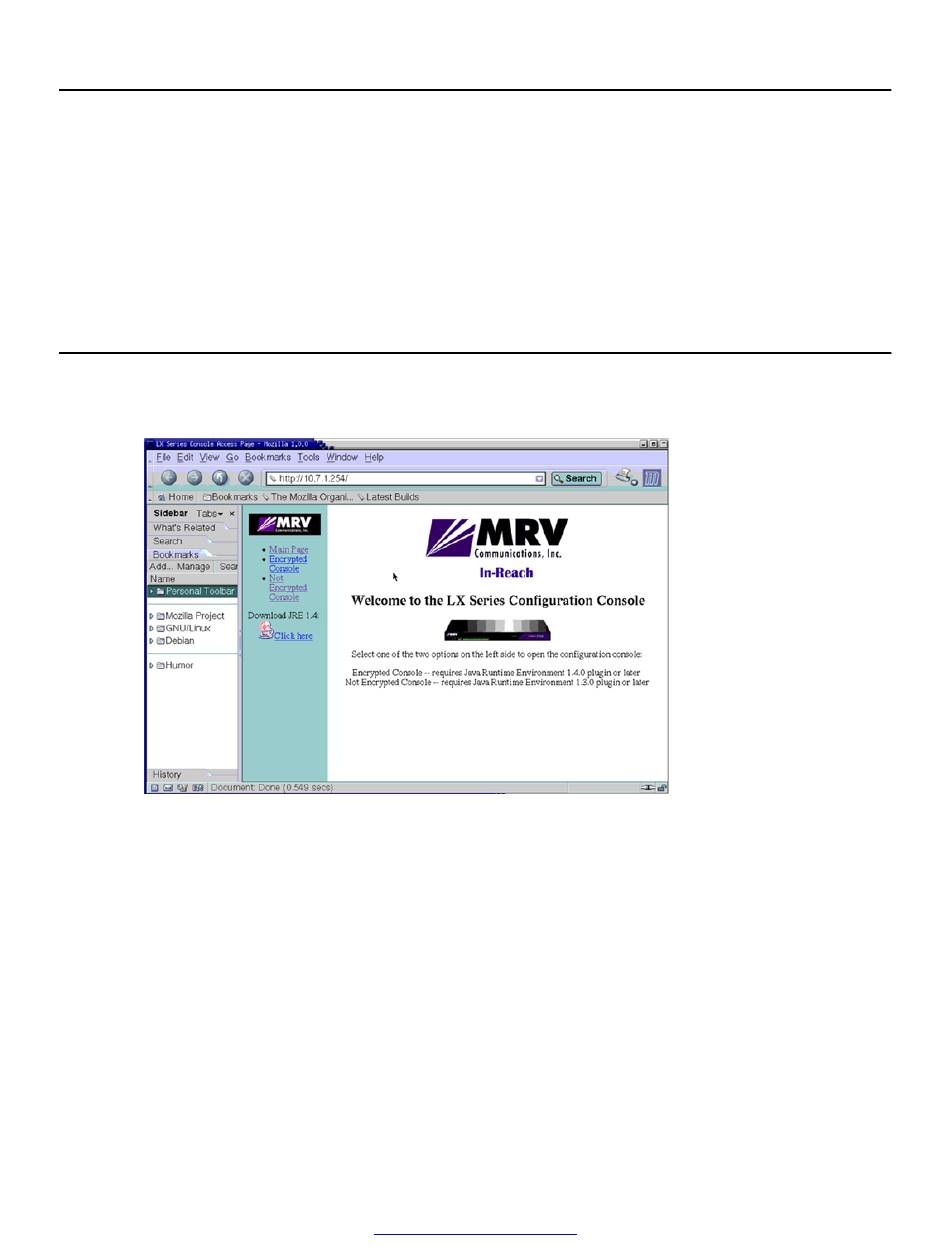

1. Open the browser and enter http://10.7.200.50/. The following screen appears.
2. Click Not Encrypted Console.
3. Double-click on the image to connect to the terminal server and display the following screen.
