connected; the combined current drain for both inputs must not exceed the current rating of the
PDU. For detailed power specifications on the PDU, see
Due to the high current requirements, the connection requires the use of a dual hole Compression
Terminal, ETC Molex p/n HDCL-6142-CC (or equivalent), and must be wired with #6 AWG wire.

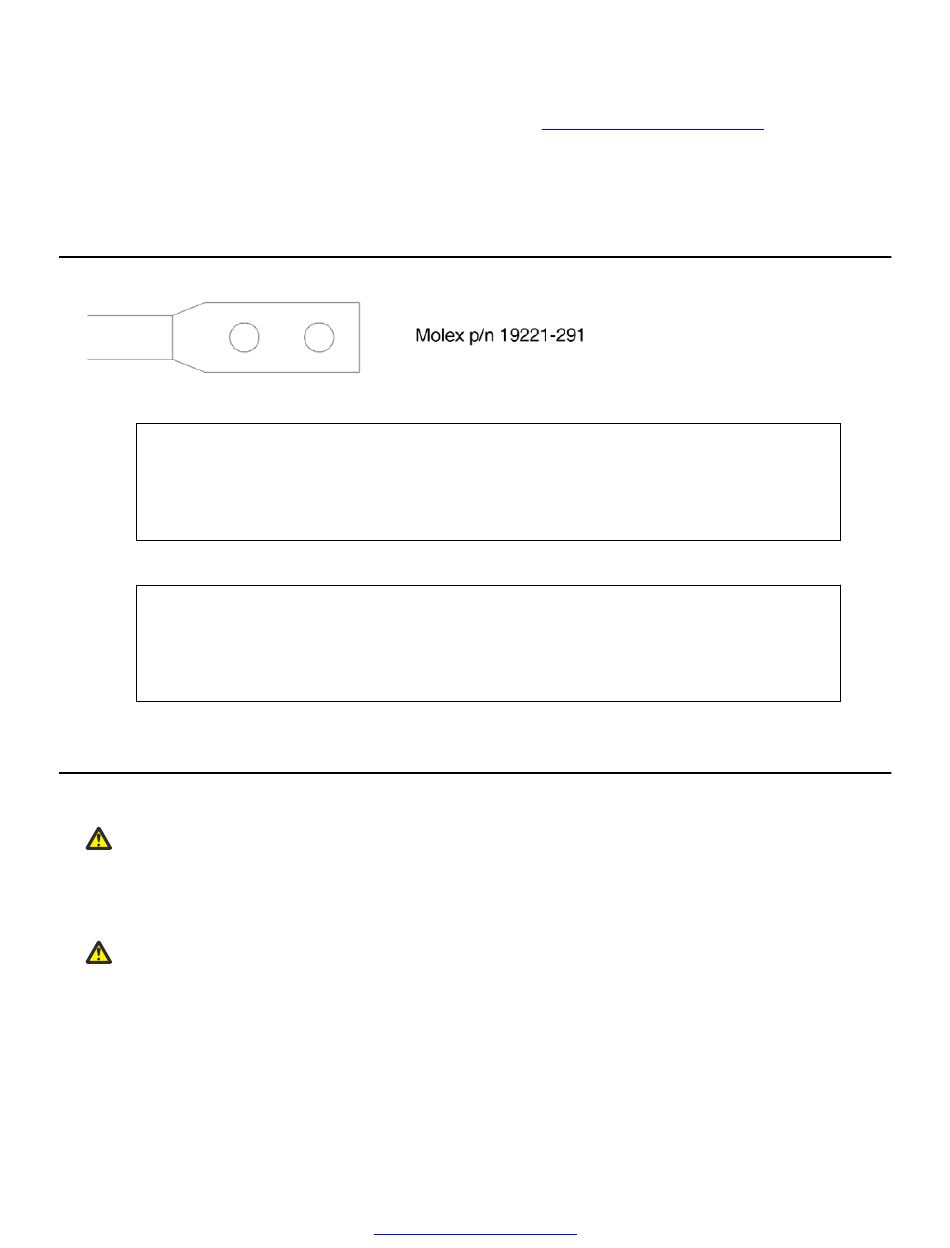

DC PDU Power Connector

The following connectors are compatible with the MPS 500 system PDU:
• Panduit LCC6-14A-L
• Panduit LCC-14A-W-L
• Molex 19221-291
Compatible connectors must have the following features.
• Wire Size: #6AWG
• Hole Size: 1/4 inch
• Hole Spacing: 0.625 inch

Connecting DC Power

Caution:
Make sure you turn off all circuit breakers on the front of the PDU before connecting power or
disconnecting power. The DC mains supply should not be connected or disconnected under
load.
Caution:
A qualified electrician must connect the DC power and grounding and provide all power feed
cabling and connectors required.
1. Assemble the following tools.
• #2 Phillips screwdriver
• 7/16 (11mm) socket wrench
October 2014 Avaya Media Processing Server 500 Hardware Installation and Maintenance
Comments? infodev@avaya.com
DC PDU Power Connector
DC Electrical Specifications on page 194.
