Installing a RAID Unit

Refer to the online documentation for the SANnet II SCSI RAID unit at:
http://www.dothill.com/index.asp
The RAID unit requires one of the following power sources. Check your SDP for the type of power
required for your installation.
Table 2: RAID Power Requirements
Type Voltage
AC 100-240VAC at 50/60 Hz, single-
phase
DC -48VDC or -60VDC

Installing Digital Audio Tape Drives

The following illustration shows the Seagate Scorpion 40 DDS-4 desktop drive and the Seagate
Scorpion 40 DDS-4 19" 3U rack mount Digital Audio Tape (DAT) drive.

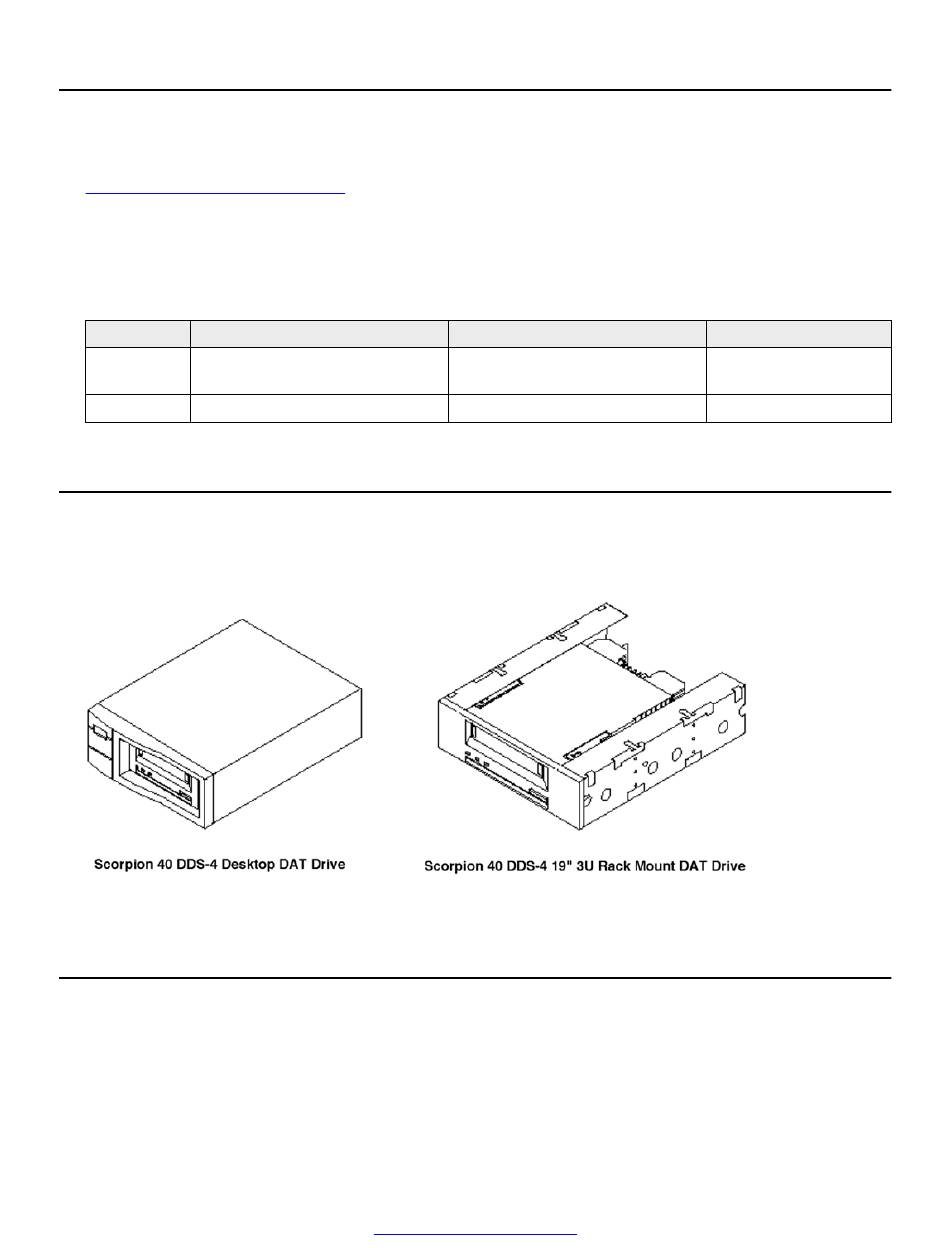

Figure 24: Seagate Scorpion Drives

Seagate Drives Operating System Configuration Settings

Make the following changes to the switch settings to use the Seagate Scorpion drives on the UNIX
operating system:
1. Remove power from the drive.
October 2014
Current
5.0A maximum per input
18A maximum per input
Avaya Media Processing Server 500 Hardware Installation and Maintenance
Comments? infodev@avaya.com
Installing a RAID Unit
Power
300W typical
300W typical
