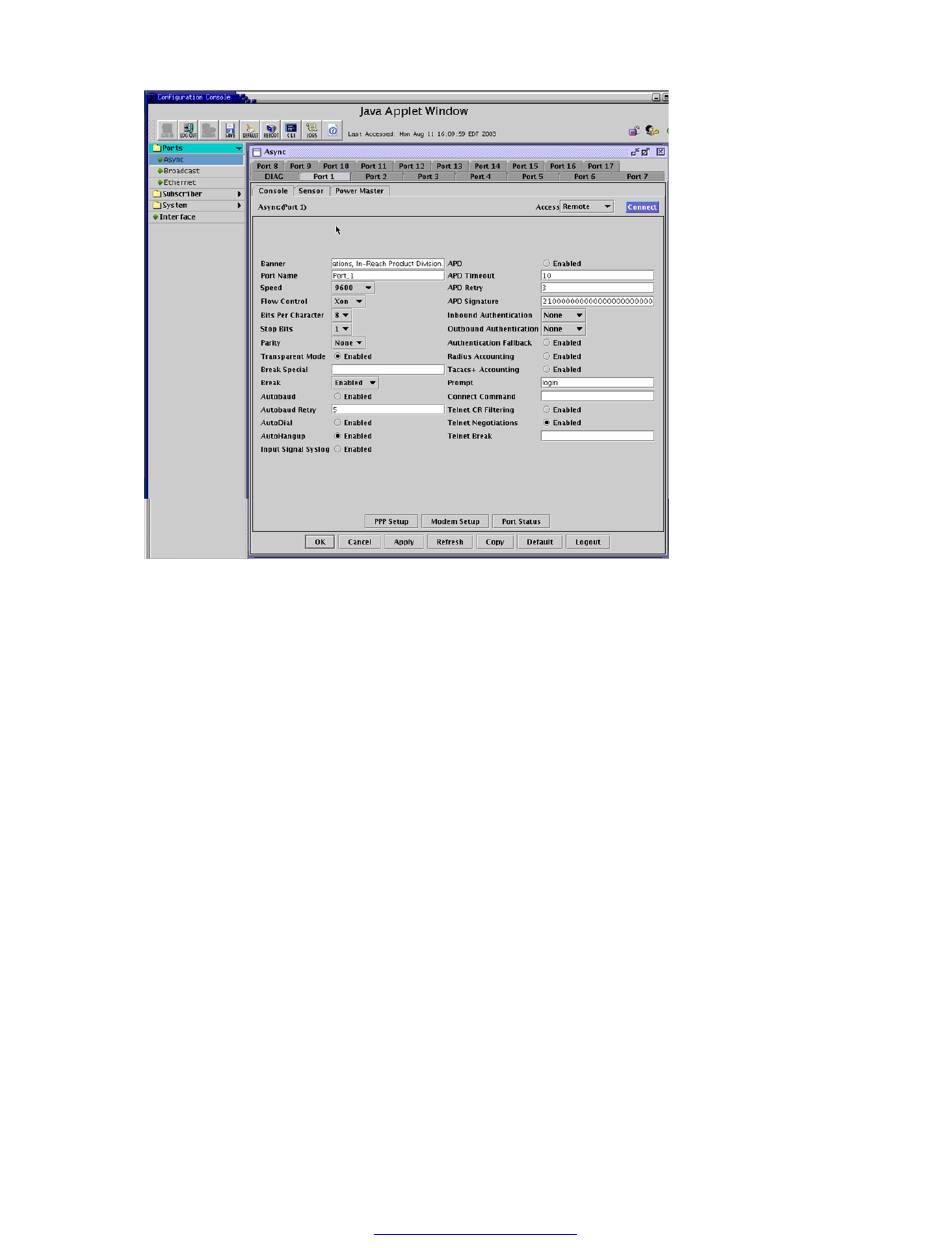

7. Select Port 1. Check that your speed, parity, and bit number settings are as shown in the
preceding window.
8. From the Inbound Authentication list choose None. This eliminates a double login when
using the terminal server.
9. Click Save at the top of the window to save the changes.
10. The parameters for Ports 1, 2, 5 - 16 are already set up. Copy the settings to the other ports.
Click Copy at the bottom of the screen.
Ports 3 and 4 are set to 38400 baud (used with the higher speed ttyb ports on SPARC-based
machines).
11. The Copy window appears. To copy the parameters to multiple ports, select the desired
ports on the left and click >>. Do not copy ports 3, 4 and 17.
October 2014
Avaya Media Processing Server 500 Hardware Installation and Maintenance
Comments? infodev@avaya.com
Making the Initial Connection
85
