Replacing the MPS 100/500 Top Cover
Caution:
Follow all appropriate ESD procedures when working inside the MPS 100 cabinet.

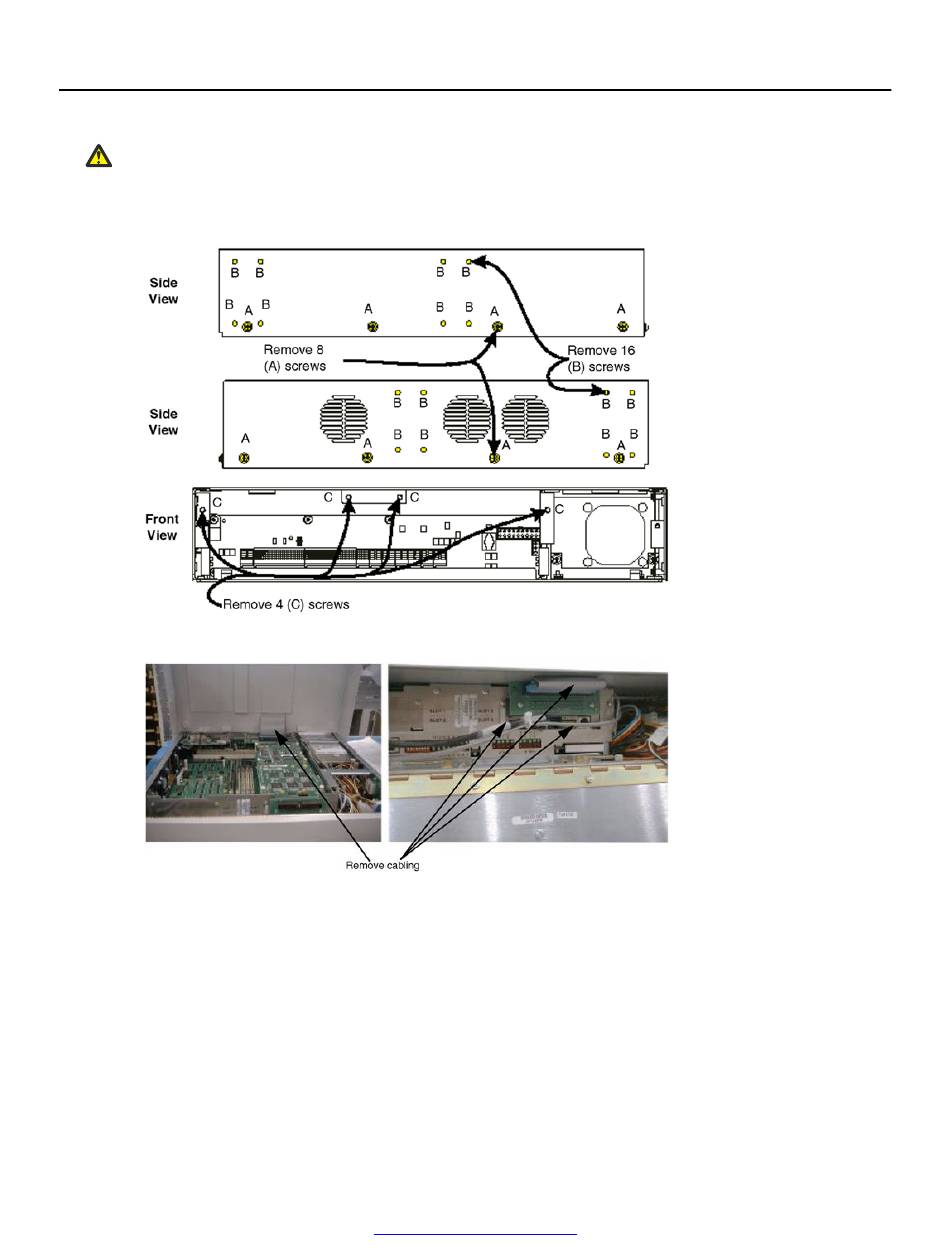

1. Remove all screws (A, B, and C) as shown in the following diagram.
2. Disconnect all cables from the front of the enclosure (ribbon cable, and so on).
3. Slide the TMS out of the enclosure.
4. Slide the cover forward far enough to remove the ribbon cable from the back of the
enclosure.
5. Lift the cover up and away from the enclosure.
6. Inspect and remove any loose debris from inside the enclosure.
7. Install the new cover, reconnect the cables, and install the screws.
