MPS 500 System Hardware Overview

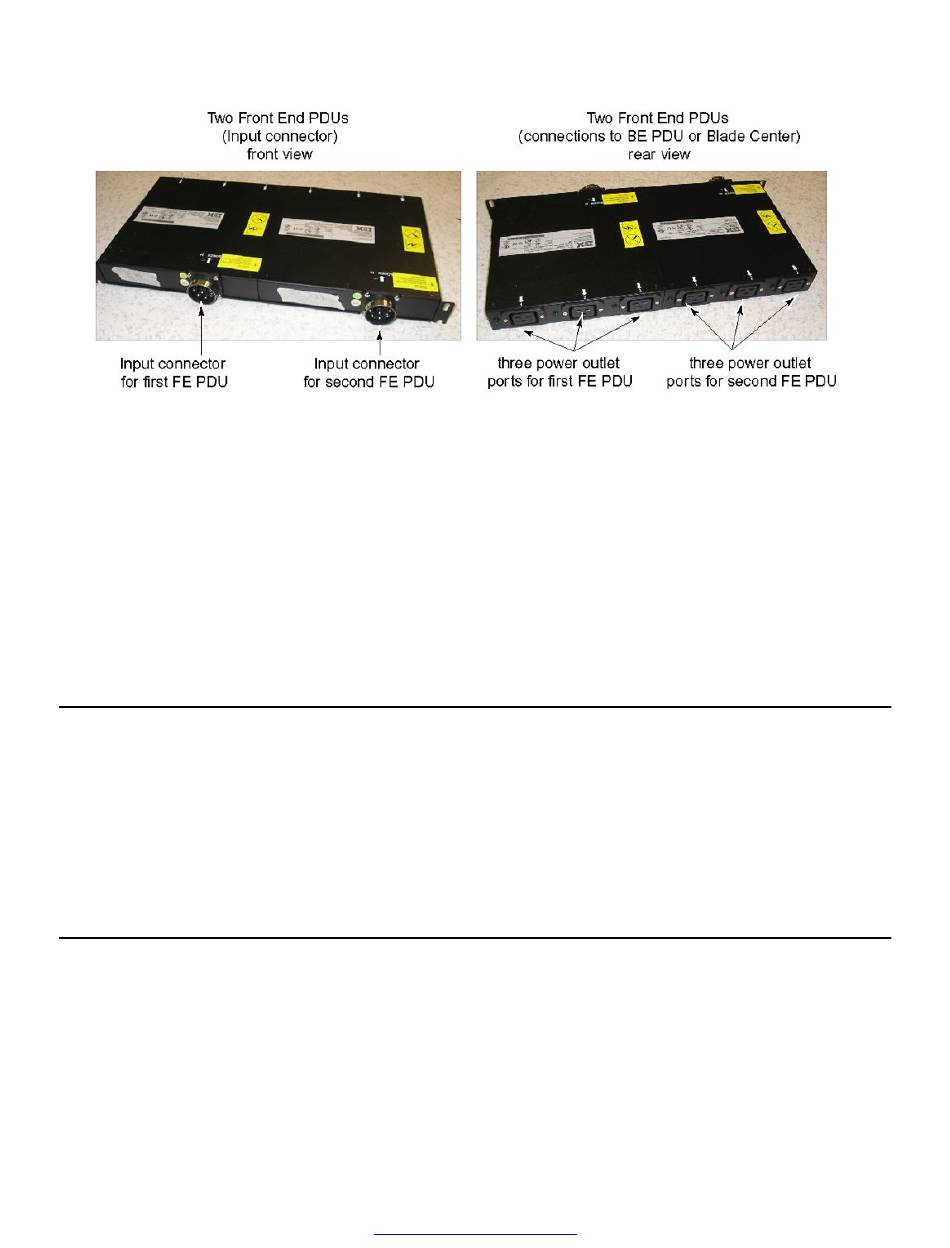

FE PDU are 200 to 250 VAC only. Each FE PDU has one power inlet port (input connector) and
three power outlet ports. The power outlet ports are IEC 320-C19 ports, with 16 amp rating.
Depending on the inlet cord type, you can connect up to three BE PDU. There are two types of input
connectors for each region.
• In non-EMEA countries, you can use two outlet ports only with an L6-30P connector for 30 amp
connectivity. You can use all outlet ports with an IEC 309-60A connector.
• In EMEA countries, you can use two outlet ports only with an IEC 309-32A connector for 30
amp connectivity. All outlet ports can be used with an IEC 309-63A connector.
• The Hubbell P/N for the connector is the 363P6W.
PDU Position
The FE PDU position in the cabinet depends on power considerations at the customer site. In most
instances, the power is supplied from the bottom of the cabinet and the FE PDU is situated there.
The input connector to the FE PDU faces the interior of the cabinet. This is to provide sufficient
clearance between the FE PDU and the cabinet mounted equipment. Refer to your System
Definition Package for the exact location of the PDU in your installation.
Back-end PDU overview
The following diagram shows two back end power distribution units (BE PDU).
