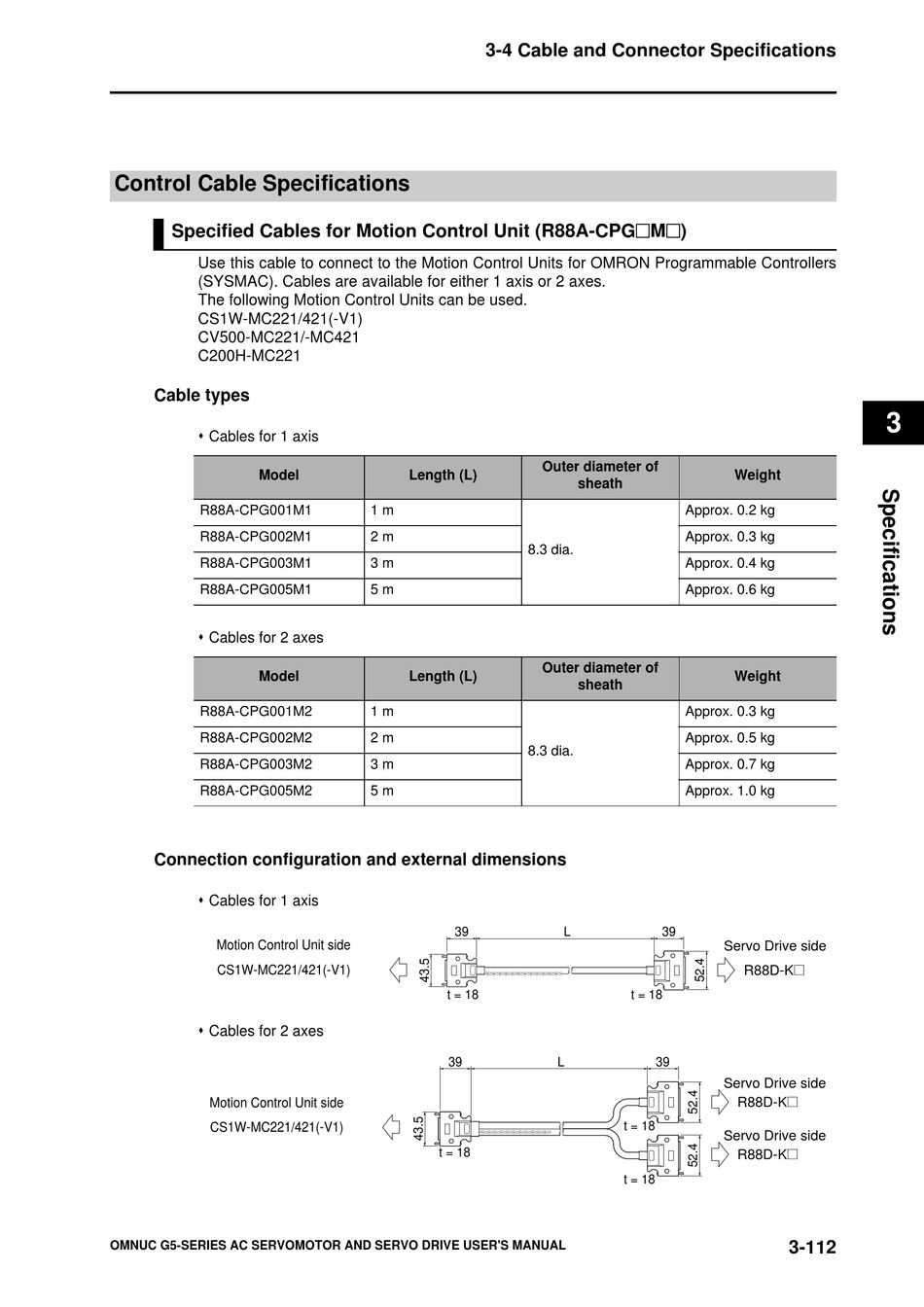

Control Cable Specifications

Specified Cables for Motion Control Unit (R88A-CPG@M@)
Use this cable to connect to the Motion Control Units for OMRON Programmable Controllers
(SYSMAC). Cables are available for either 1 axis or 2 axes.
The following Motion Control Units can be used.
CS1W-MC221/421(-V1)
CV500-MC221/-MC421
C200H-MC221
Cable types
 Cables for 1 axis
Model
R88A-CPG001M1
R88A-CPG002M1
R88A-CPG003M1
R88A-CPG005M1
 Cables for 2 axes
Model
R88A-CPG001M2
R88A-CPG002M2
R88A-CPG003M2
R88A-CPG005M2
Connection configuration and external dimensions
 Cables for 1 axis
Motion Control Unit side
CS1W-MC221/421(-V1)
 Cables for 2 axes
Motion Control Unit side
CS1W-MC221/421(-V1)
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3-4 Cable and Connector Specifications
Outer diameter of
Length (L)
1 m
2 m
8.3 dia.
3 m
5 m
Outer diameter of
Length (L)
1 m
2 m
8.3 dia.
3 m
5 m
39
t = 18
39
t = 18
sheath
Approx. 0.2 kg
Approx. 0.3 kg
Approx. 0.4 kg
Approx. 0.6 kg
sheath
Approx. 0.3 kg
Approx. 0.5 kg
Approx. 0.7 kg
Approx. 1.0 kg
L 39
Servo Drive side
t = 18
L 39
Servo Drive side
t = 18
Servo Drive side
t = 18
3
Weight
Weight
R88D-K@
R88D-K@
R88D-K@
3-112
