Chapter 5 FUNCTION SETTINGS AND OPERATIONS

5.16 Setting the Mirror Mode

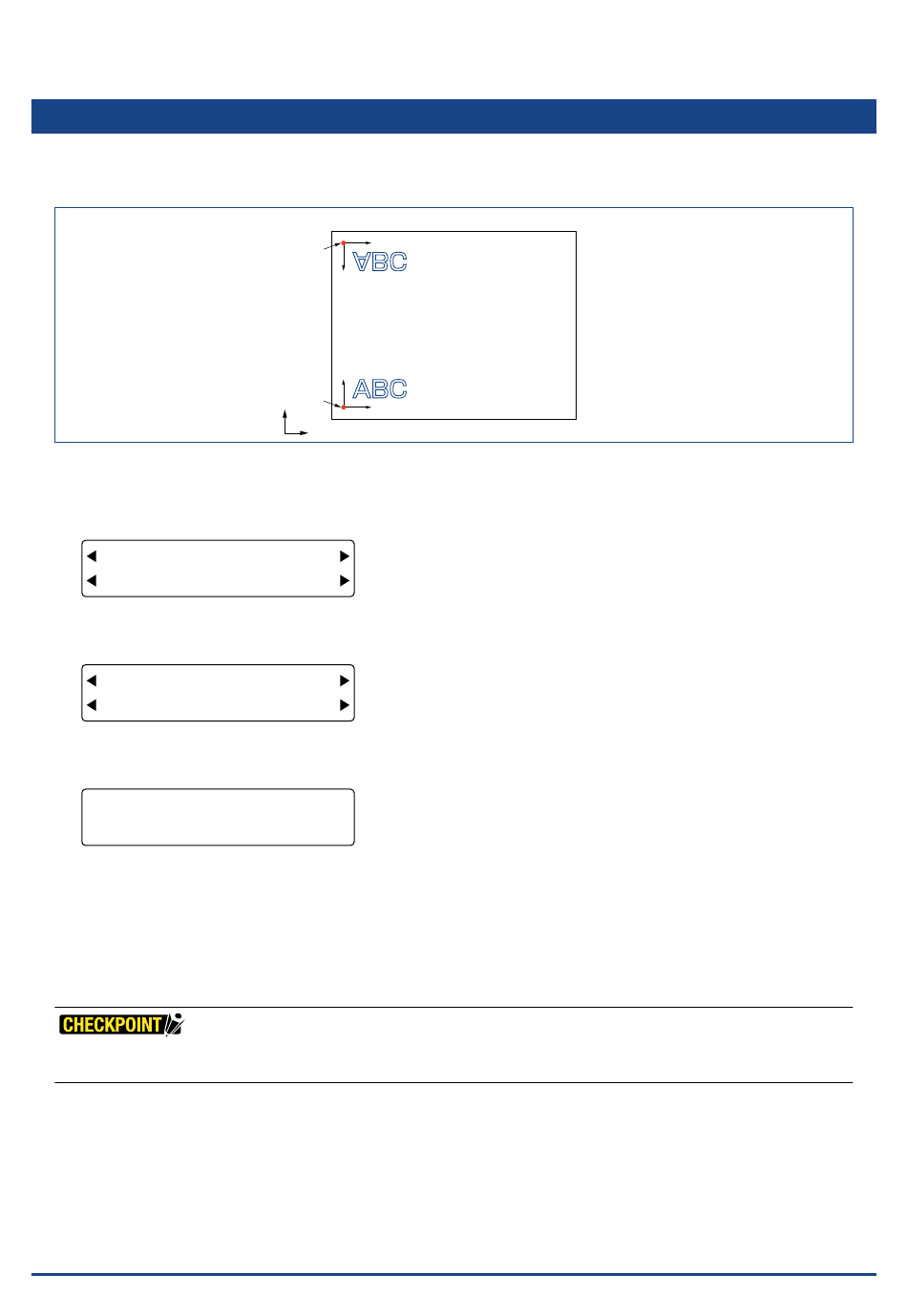

When MIRROR mode is selected using this function, the origin and coordinate axes are inverted as shown
in the figure below.
Origin when MIRROR mode is selected
(1) Press the [PAUSE] key to select PAUSE mode.
(2) Press the [NEXT] key until the following menu is displayed.
FORCE
I/F
TOOL COND AREA OPT
SPEED
(3) Press the [F4] key (AREA OPT) to display the menu shown below.
FORCE
ROTATE
L.L. U.R.
SPEED
(4) Press the [F3] key (MIRROR) to display the MIRROR mode setting screen.
FORCE
ON
SPEED
The current setting is indicated by a black dot [
To select MIRROR mode, press the [F2] key (ON).
To cancel MIRROR mode, press the [F4] key (OFF).
After you have selected the desired parameter, press the [ENTER] key to confirm your selection.
(5) Press the [PAUSE] key to cancel PAUSE mode.
•
When the plotter is turned off, the MIRROR mode returns to its default setting (OFF).
•
The MIRROR mode is set to OFF when MARK TYPE 3 is selected.
5-18
Y
Y
Origin
Y
X
OFFSET
FUNCTION
QUALITY
OFFSET
MIRROR
SCALE
QUALITY
OFFSET
MIRROR
OFF•
QUALITY
X
MIRROR mode is selected (ON)
MIRROR mode is not selected (OFF)
X
•
].
