TABLE:
Pin
1
2
3
4
5
6
7
8
Related Information
"Server Back Panel View" on page 5
■
"Disconnect Cables From the Server" on page 39
■
"Reconnect Data Cables and Power Cords" on page 149
■

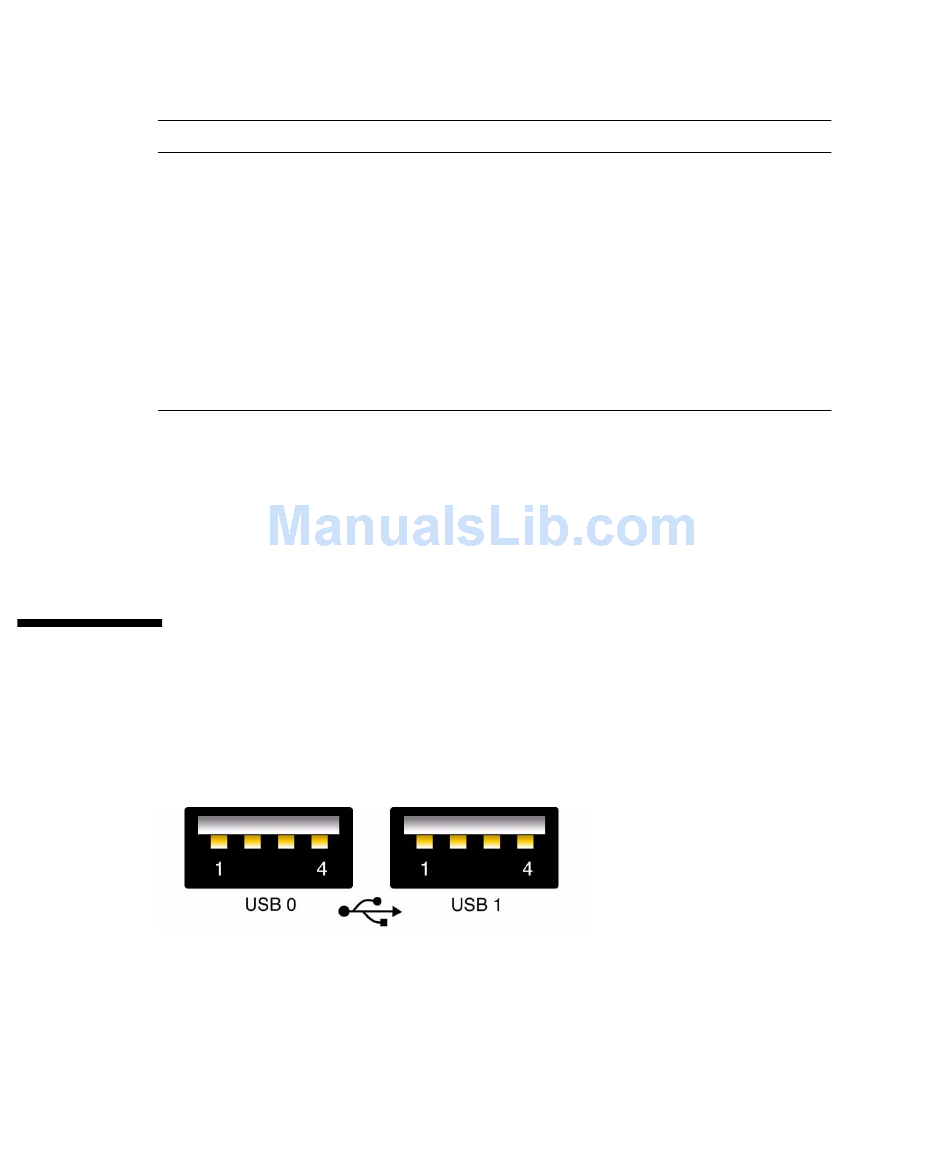

USB Ports

The server has six USB ports for attaching supported USB 2.0-compliant devices.
There are two USB ports on the server front panel, two on the rear panel, and two on
the motherboard.
158 Sun Server X4-2 Service Manual • May 2014
Video Connector Signals
Signal Description
Red Video
Green Video
Blue Video
Monitor ID - Bit 2
Ground
Red Ground
Green Ground
Blue Ground
Pin Signal Description
9 [KEY]
10 Sync Ground
11 Monitor ID - Bit 1
12 Monitor ID - Bit 0
13 Horizontal Sync
14 Vertical Sync
15 N/C (Reserved)
