Remove The Disk Backplane - Sun Oracle Sun Server X4-2 Service Manual

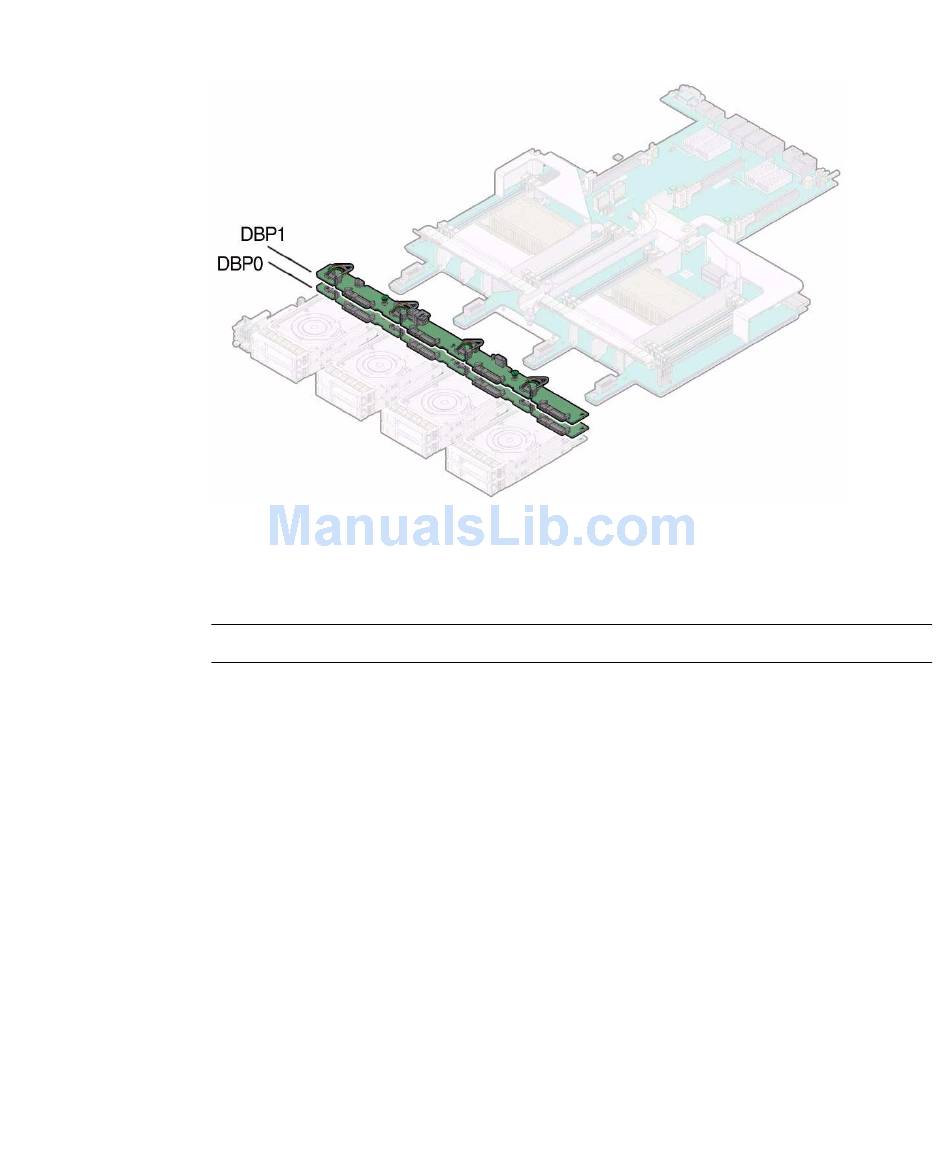

Disk Backplane Configurations
FIGURE:

▼ Remove the Disk Backplane

Note – A server with four or fewer storage drives has only one disk backplane.
1. Prepare the server for service.
a. Power off the server and disconnect the power cords from the power
supplies.
See "Powering Down the Server" on page
b. Extend the server to the maintenance position.
See "Extend the Server to the Maintenance Position" on page
c. Attach an antistatic wrist strap to your wrist, and then to a metal area on the
chassis.
See "Take Antistatic Measures" on page
d. Open the server fan door to gain access to the disk backplanes.
2. Pull each storage drive out far enough to disengage it from the disk backplane.
See "Remove a Storage Drive" on page
33.
42.
47.
39.
Servicing FRUs 119
