FIGURE:
Figure Legend
1
2
After you have determined the size of the processor installed in your server, select
the correct processor removal/replacement tool. Like the processors, the processor
removal/replacement tool also comes in two sizes. The tool for the smaller
processors (processors with 10 or fewer cores) is color-coded green. The tool for the
larger processors (12-core processors) is color-coded pink. See
Processor Removal/Replacement Tools on page
104
Sun Server X4-2 Service Manual • May 2014

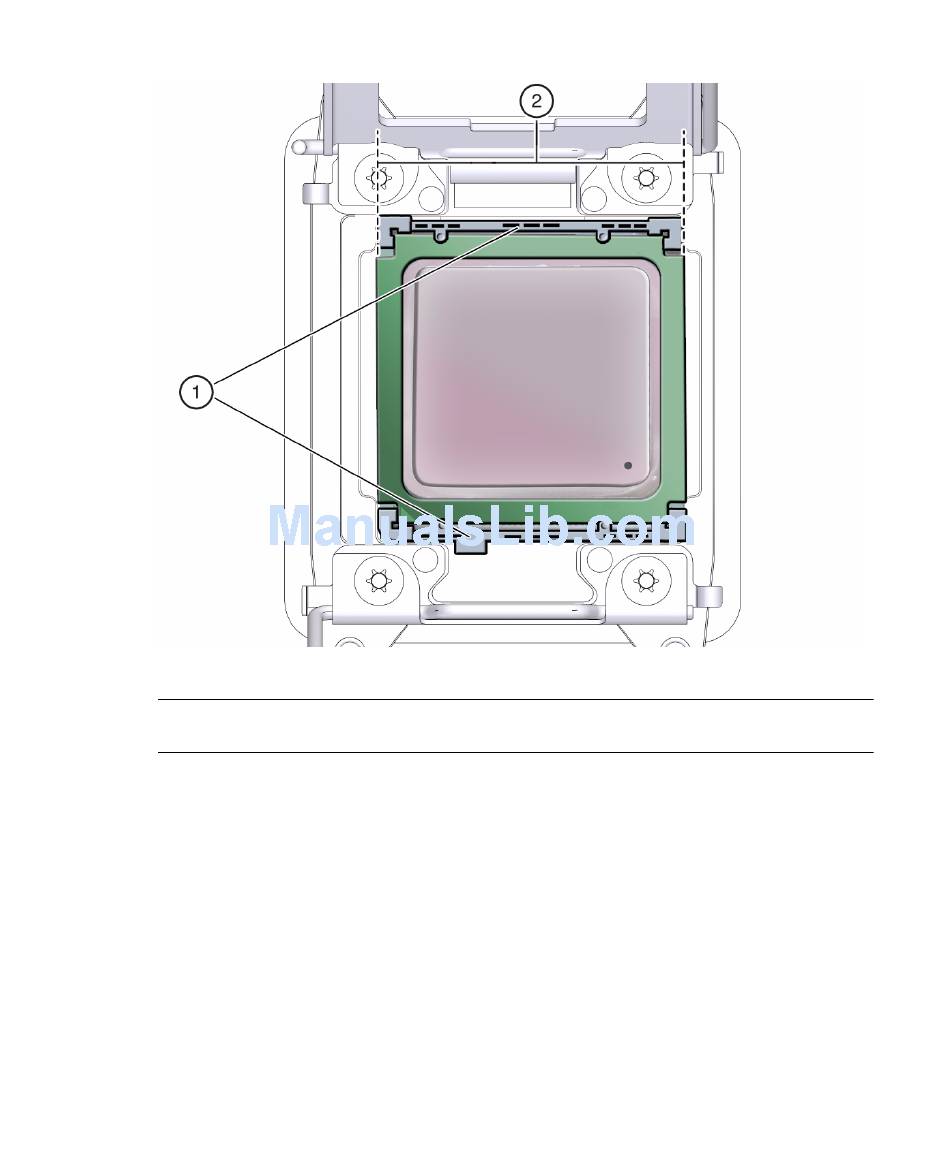

Larger Processor Installed in a Motherboard Processor Socket
Processor alignment brackets
Processor left and right edges extend beyond alignment bracket boundaries
FIGURE: Color-Coded
105.
