FIGURE:
Figure Legend
1
2
3
Related Information
"PCIe Slot Characteristics" on page 85
■
▼ Remove a PCIe Riser From PCIe Slot 1 or 2
Note – PCIe slot 1 is nonfunctional in single-processor systems.
76
Sun Server X4-2 Service Manual • May 2014

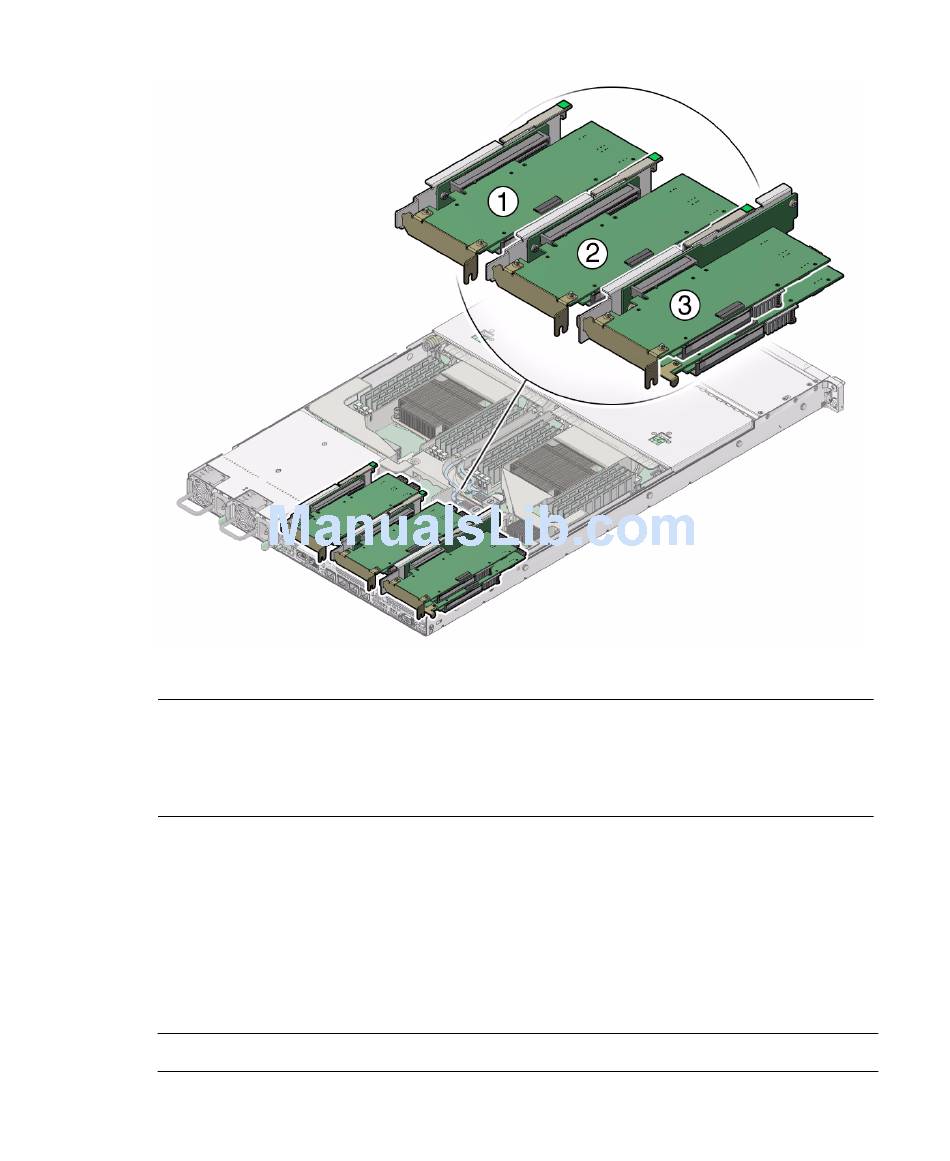

PCIe Riser Locations
PCIe riser and installed PCIe card in slot 1 (This slot is nonfunctional in single-processor systems.)
PCIe riser and installed PCIe card in slot 2
PCIe riser and installed cards (2) in slots 3 and 4 (this riser contains the internal HBA card.)
Note: This riser is different from the risers in slots 1 and 2.
