▼ Remove an Internal USB Flash Drive

The server can be equipped with up to two internal USB flash drives. Before you
remove a the USB flash drive on which Oracle System Assistant is installed, review
"Servicing the Oracle System Assistant USB Flash Drive" on page 94
1. Prepare the server for service.
a. Power off the server and disconnect the power cords from the power
supplies.
See "Powering Down the Server" on page 33
b. Extend the server to the maintenance position.
See "Extend the Server to the Maintenance Position" on page
c. Attach an antistatic wrist strap to your wrist and then to a metal area on the
chassis.
See "Take Antistatic Measures" on page
d. Remove the server top cover.
See "Remove the Server Top Cover" on page
2. To access the USB flash drives, remove the USB flash drive cover [1].

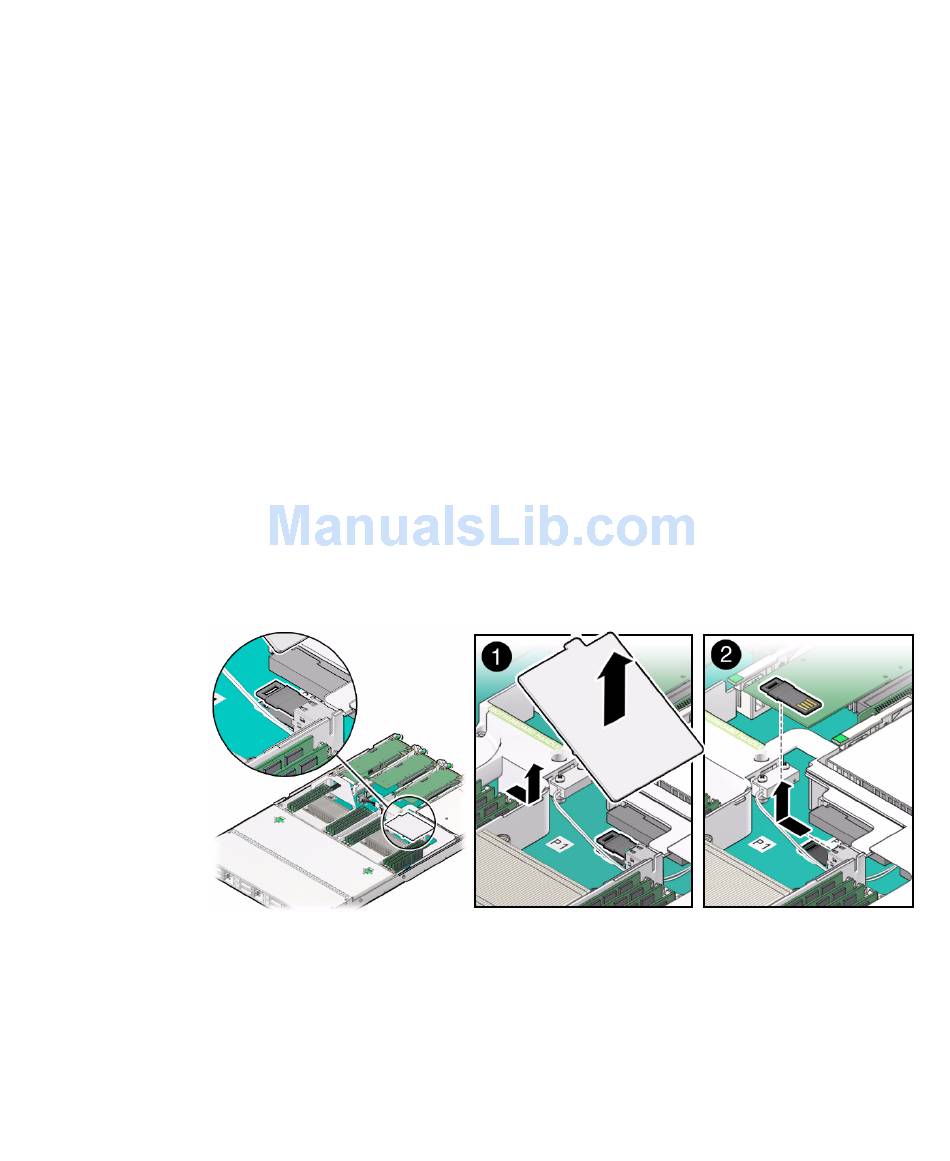

Removing an Internal USB Flash Drive
FIGURE:
3. Grasp the USB flash drive and pull it out of the internal USB port [2].

▼ Install an Internal USB Flash Drive

1. Unpack the replacement USB flash drive.
42.
43.
