Summary of Contents for Sun Oracle Netra X4250

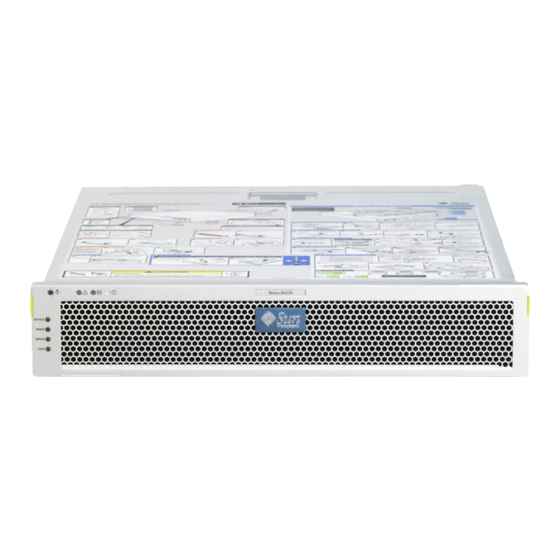

- Page 1 Sun Netra X4250 Server Site Planning Guide Part No. 820-4053-12 May 2010, Revision A...
- Page 2 Copyright © 2008, 2010, Oracle and/or its affiliates. All rights reserved. This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means.
-
Page 3: Table Of Contents
Contents Sun Netra X4250 Server Site Planning 1 Physical Specifications 1 Clearance for Service Access 2 Environmental Specifications 2 AC and DC Power Source Requirements Additional Power System Information 3 Changing Sun Servers From AC to DC Input or From DC to AC Input 4... - Page 4 Sun Netra X4250 Server Site Planning Guide • May 2010...
-
Page 5: Sun Netra X4250 Server Site Planning
This guide provides the specifications and site requirements for planning the installation of Sun Netra X4250 server from Oracle. For safety and compliance information, refer to the Sun Netra X4250 Server Safety and Compliance Guide, 820-4054, and the Important Safety Information for Sun Hardware Systems, 821-1590, that came with your server. -
Page 6: Clearance For Service Access
AC servers: 3G, 11msec half-sine AC servers: 1 in. roll off front to back, 0.5 in. roll off side to side, 20 mm step-up Seismic AC server only: Zone 4 Not applicable Sun Netra X4250 Server Site Planning Guide • May 2010... -
Page 7: Ac And Dc Power Source Requirements
The inputs to a power supply are isolated from the system chassis and the other power supply inputs. The AC or DC power inputs may be at different voltages within the acceptable range and may have different offset voltages relative to the system chassis. Sun Netra X4250 Server Site Planning... -
Page 8: Changing Sun Servers From Ac To Dc Input Or From Dc To Ac Input
EN55022 Class A 47 CFR 15B Class A ICES-003 Class A VCCI Class A AS/NZ 3548 Class A CNS 13438 Class A KSC 5858 Class A GB9254 Class A EN61000-3-2 GB17625.1 EN61000-3-3 Sun Netra X4250 Server Site Planning Guide • May 2010... -
Page 9: Operating Environment
Good practice is to connect each power supply to a separate circuit, which enables the server to remain operational if one of the circuits fails. Consult your local electrical codes for any additional requirements. Sun Netra X4250 Server Site Planning... -
Page 10: Ambient Temperature
These clearance values are based on the inlet and exhaust impedance (available open area) stated in the third bullet assume a uniform distribution of the open area across the inlet and exhaust areas. These values also improve cooling performance. Sun Netra X4250 Server Site Planning Guide • May 2010... -
Page 11: Acoustic Noise Emissions
Telcordia certified that the DC-powered version of the server meets NEBS Level 3 requirements per SR-3580, including the appropriate sections of GR-63-CORE (Network Equipment-Building System Requirements: Physical Protection) and GR-1089-CORE (Electromagnetic Compatibility and Electrical Safety – Generic Criteria for Network Telecommunications Equipment). Sun Netra X4250 Server Site Planning... - Page 12 Caution – To maintain NEBS compliance, the network management (NET MGT) Ethernet port and the RJ-45 serial management (SER MGT) port must use shielded cables, and both ends of the shield must be grounded. Sun Netra X4250 Server Site Planning Guide • May 2010...
