Video Connector - Sun Oracle Sun Server X4-2 Service Manual

RJ-45 to DB-25 Adapter Crossover Wiring Reference
TABLE:
Serial Port (RJ-45 Connector)
Pin Signal Description
1 RTS
2 DTR
3 TXD
4 Signal Ground
5 Signal Ground
6 RXD
7 DSR
8 CTS
Related Information
"Server Back Panel View" on page 5
■
"Disconnect Cables From the Server" on page 39
■
"Reconnect Data Cables and Power Cords" on page 149
■

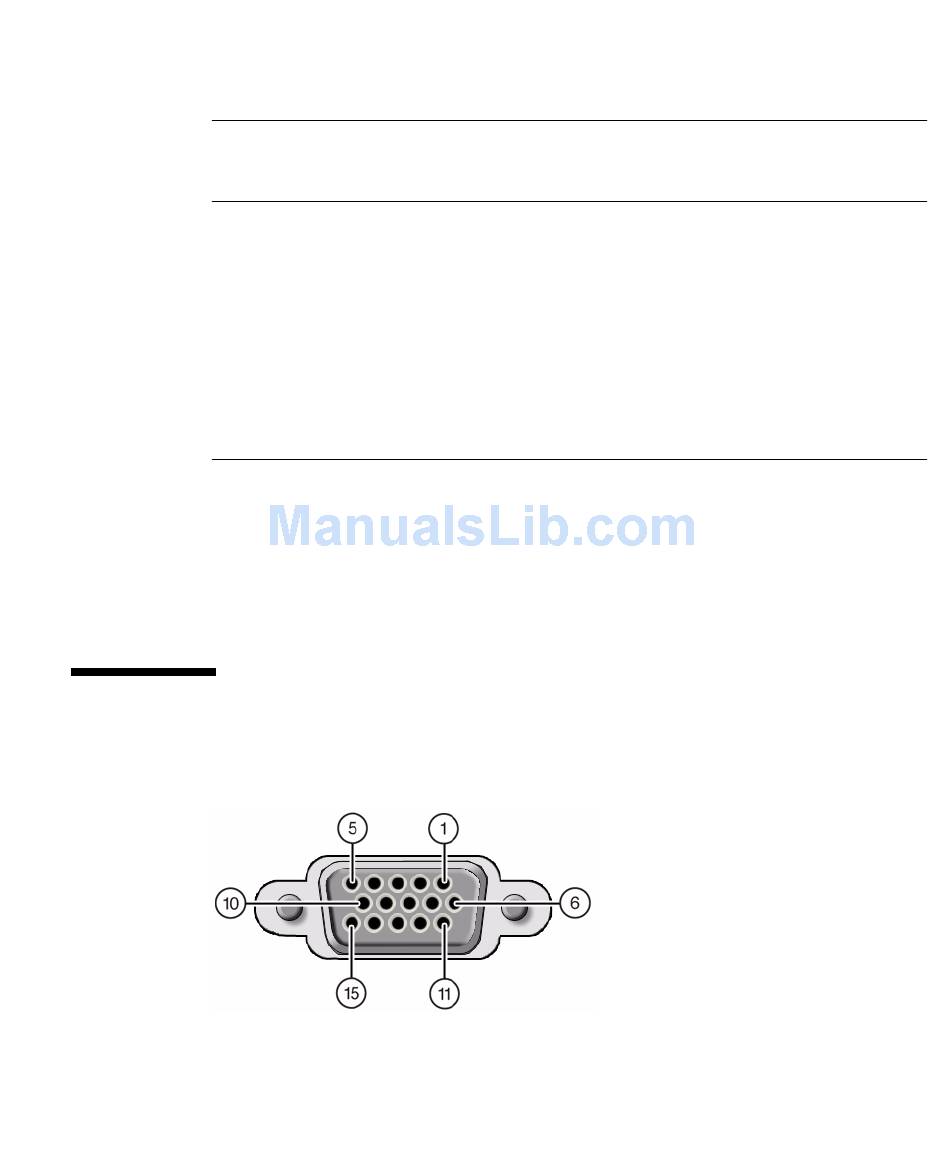

Video Connector

The video connector is a DB-15 connector that can be accessed from the back panel.
DB-25 Adapter
Pin Signal Description
5 CTS
6 DSR
3 RXD
7 Signal Ground
7 Signal Ground
2 TXD
20 DTR
4 RTS
Identifying the Server Ports 157
