rebuilt from the rest of the array with no need to reconfigure the RAID parameters. If
the replaced storage drive was configured as a hot-spare, the new storage drive is
automatically configured as a new hot-spare.
For instructions for configuring RAID on the server, refer to the
Installation Guide, "Configuring Server Drives for OS Installation" on page

Storage Drive Status Indicators

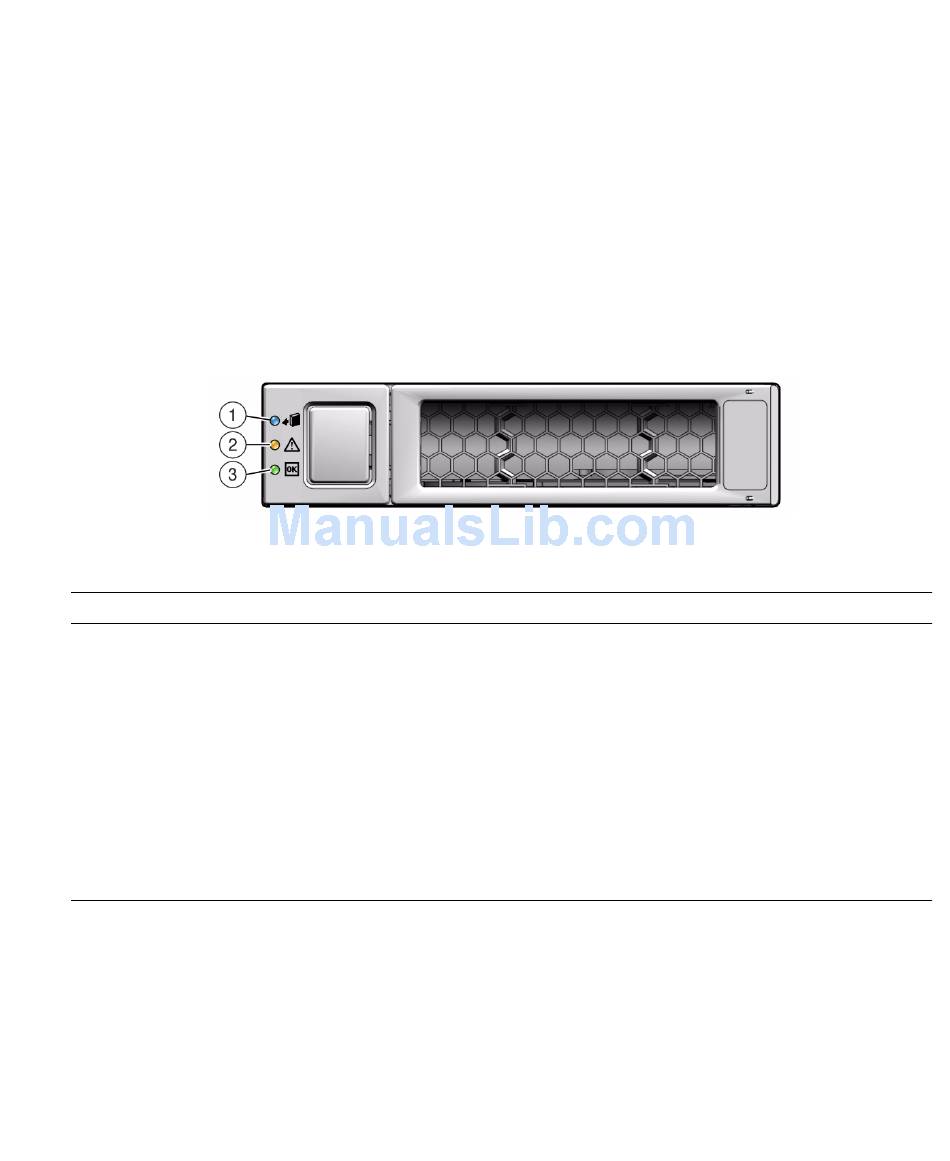

The following figure and table describe the storage drive status indicators (LEDs).
FIGURE:
Storage Drive Status Indicators
TABLE:
Legend LED
1 OK to Remove
2 Service Required
3 OK/Activity

▼ Remove a Storage Drive

1. Prepare the system for the drive removal.
See
Storage Drive Status Indicators
Color State Meaning
Blue • STEADY ON – The storage drive can be removed safely
• OFF – The storage drive has not been prepared for removal.
Amber • OFF – The storage drive is operating normally.
• STEADY ON – The system has detected a fault with the
Green • OFF – Power is off or the installed drive is not recognized by
• STEADY ON – The drive is engaged and is receiving power.
• STEADY BLINK – There is disk activity. The LED blinks on
"Take Antistatic Measures" on page
during a hot-plug operation.
storage drive.
the system.
and off to show activity.
42.
Servicing CRUs That Do Not Require Server Power-Off
Sun Server X4-2
113.
