Servicing the DIMMs (CRU)

This section describes how to remove and install DIMMs.
62 Sun Server X4-2 Service Manual • May 2014

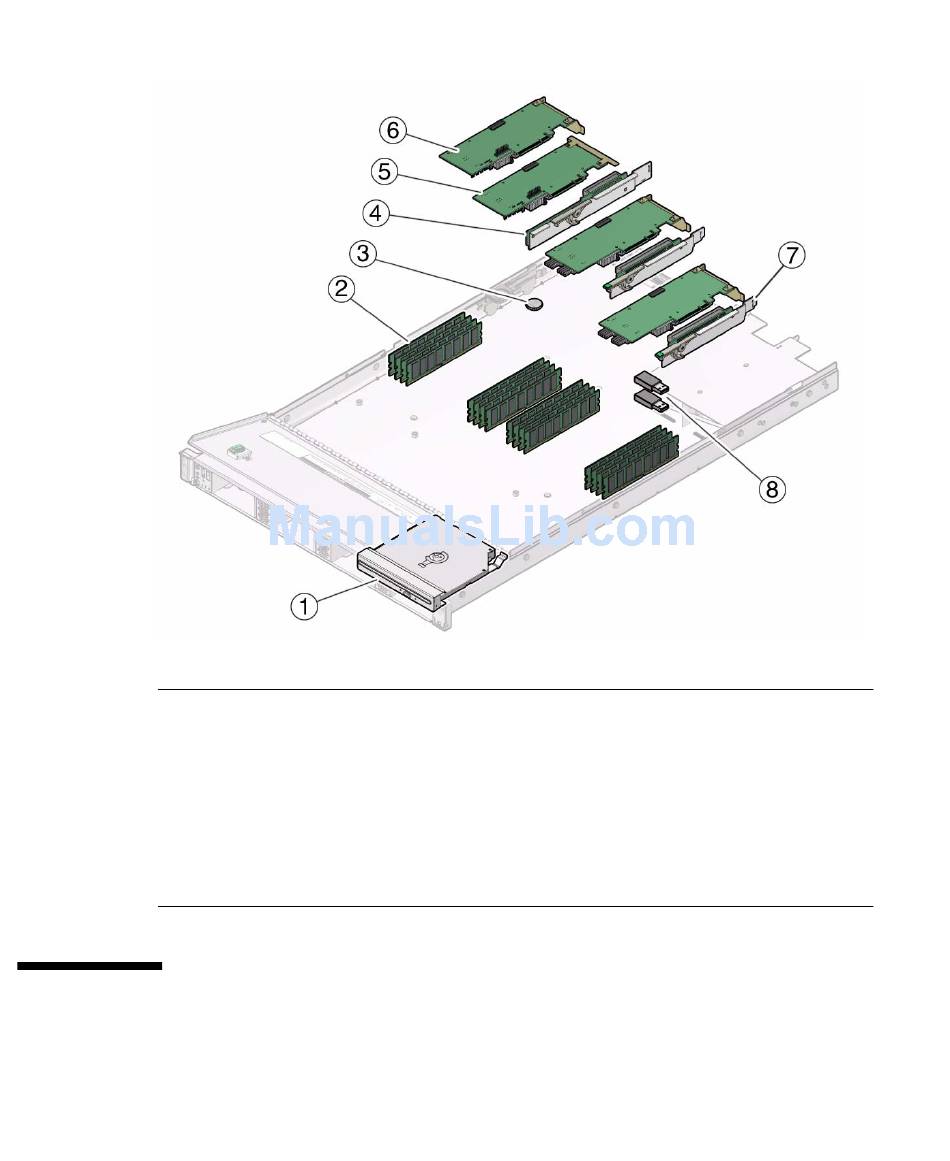

CRU Locations
DVD drive (CRU)
DIMMS (CRUs)
Note: A maximum of eight DIMMs are
supported in single-processor systems and
the DIMMs must be installed in DIMM sockets
associated with the P0 processor socket.
Battery (CRU)
PCIe riser for slots 3 and 4 (CRU)
5 Internal HBA card (CRU) (installs in slot 4 on
PCIe riser for slots 3 and 4)
6 PCIe card (CRU) (installs in slot 3 on PCIe
riser for slots 3 and 4)
7 PCIe riser for slot 1 (CRU) (nonfunctional in
single-processor systems)
8 USB flash drives (CRU)
