Front Panel Controls and Indicators on a System
With Eight 2.5-inch Drives
The following figure shows the controls, status indicators (LEDs), connectors, and
drives on the front panel of a Sun Server X4-2 configured with eight 2.5-inch storage
drives.

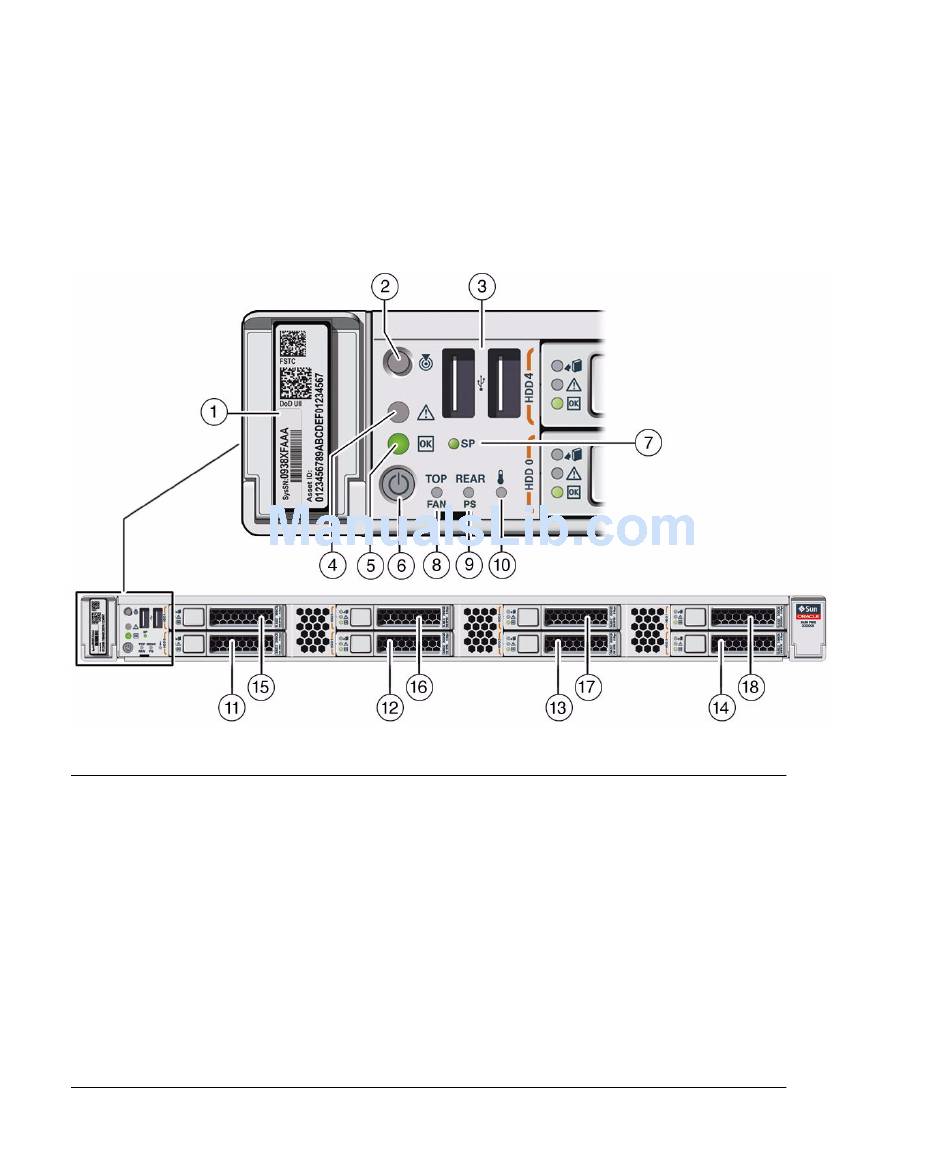

Front Panel View of a Server With Eight 2.5-inch Drives
FIGURE:
Figure Legend
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
2 Locator LED/Locator button: white
3 USB 2.0 connectors (2)
4 Service Required LED: amber
5 Power/OK LED: green
6 Power button
7 SP OK LED: green
8 Top Fan Fault LED: amber
9 Rear Power Supply (PS) Fault LED: amber
10 System Over Temperature Warning LED:
amber
11 Storage drive 0
12 Storage drive 1
13 Storage drive 2
14 Storage drive 3
15 Storage drive 4
16 Storage drive 5
17 Storage drive 6
18 Storage drive 7 (In Oracle Engineered
Systems, storage drive 7 might be populated
with a remote battery module for the host bus
adapter (HBA) card.)
