Identifying the Server Ports

These topics provide the pin descriptions of the server ports.
"USB Ports" on page 89
■
"Alarm Port" on page 90
■
"SER MGT Port" on page 91
■
"NET MGT Port" on page 91
■
"Gigabit-Ethernet Ports" on page 92
■
"Video Port" on page 93
■
Related Information
"Connecting the Server Cables" on page 65
■
"Back Panel Connectors and Ports" on page 66
■

USB Ports

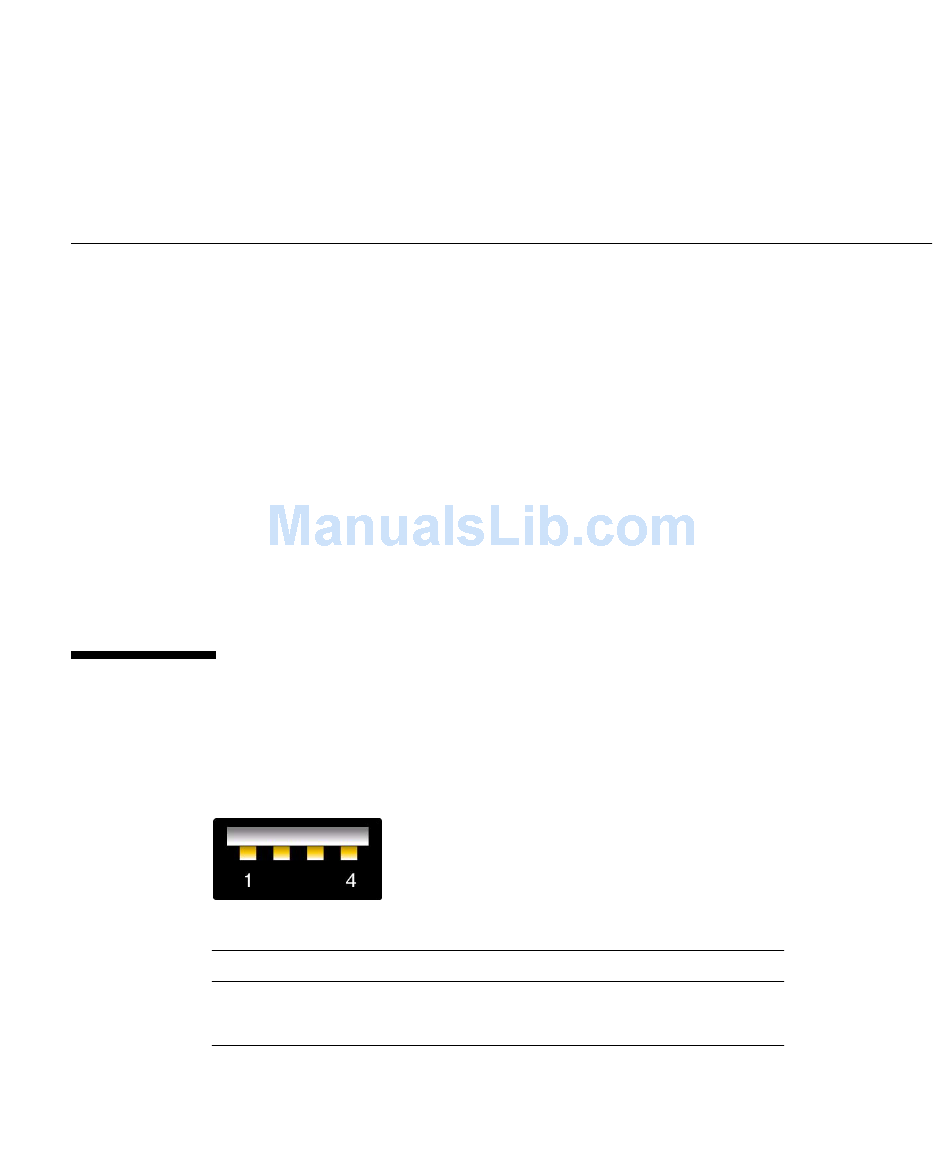

You can access two USB ports from the front of the server and two USB ports from
the back of the server.
Pin Signal Description
1 +5V supply
2 Data -
Pin Signal Description
3 Data +
4 Ground
89
