DIMM and Processor Physical Layout

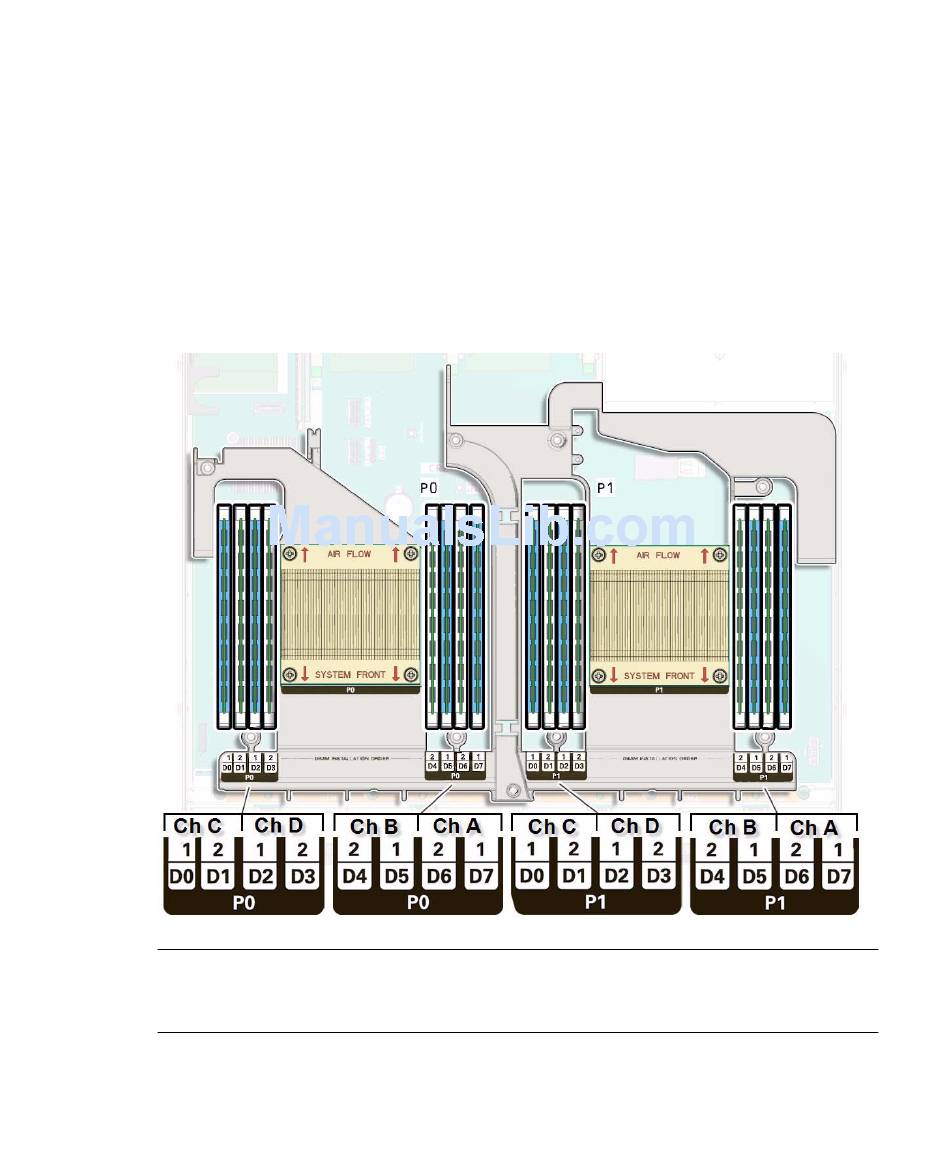

The physical layout of the DIMMs and processor(s) is shown in the following figure.
When viewing the server from the front, processor 0 (P0) is on the left.
FIGURE:
Note – In single-processor systems, the DIMM sockets associated with the processor
1 (P1) socket are nonfunctional and should not be populated with DIMMs or DIMM
filler panels.
64
Sun Server X4-2 Service Manual • May 2014
