DIMM Population Example for Optimal System
Performance
This section provides an example of how to populate the DIMM sockets to achieve
optimal system performance.
Note – Not all possible configurations are shown here.
The following figure shows the order in which the DIMM sockets should be
populated in dual-processor systems. In single-processor systems, you should follow
the same order except that you should not install DIMMs in the DIMM sockets
associated with processor 1 (P1) socket, because the P1 DIMM sockets are
nonfunctional.

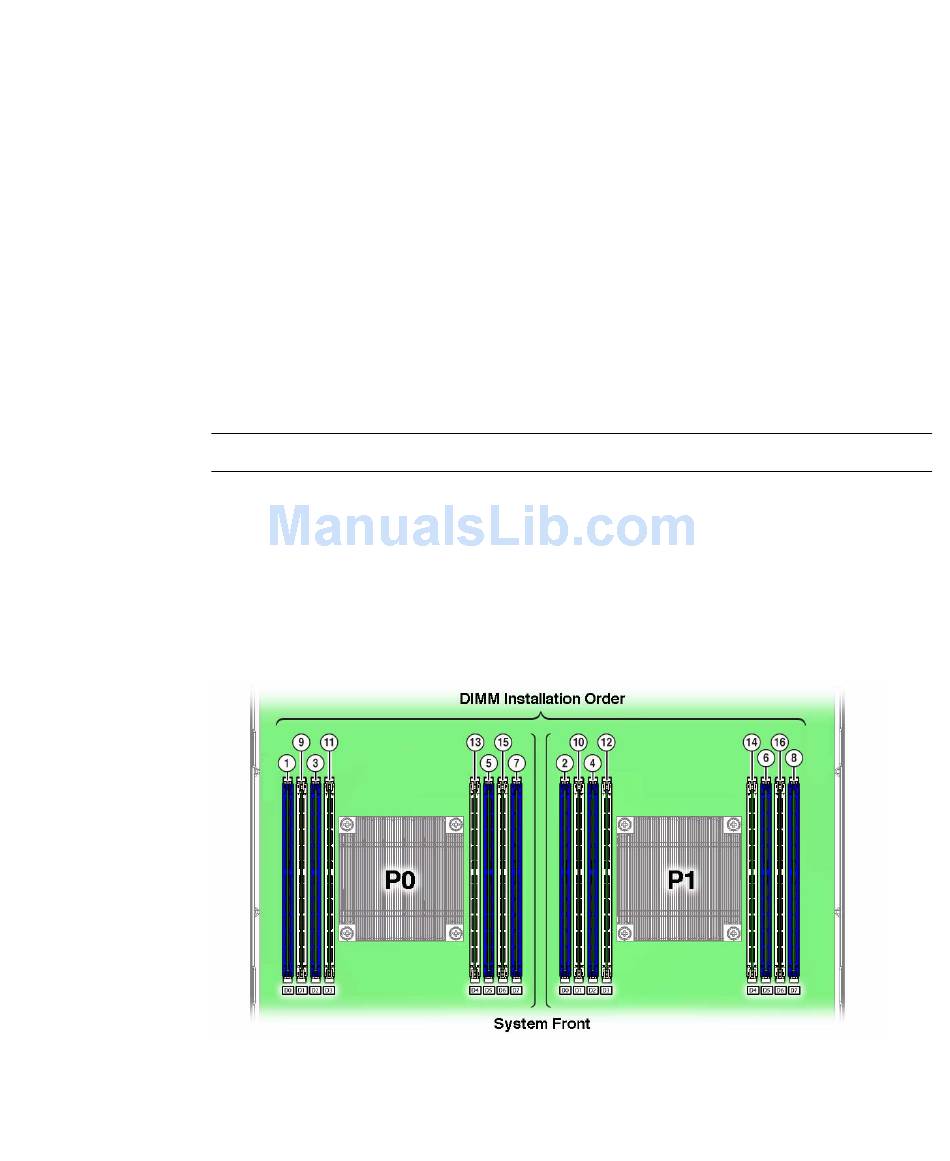

DIMM Population Order
FIGURE:
For more information on populating the DIMMs, see the following sections:
