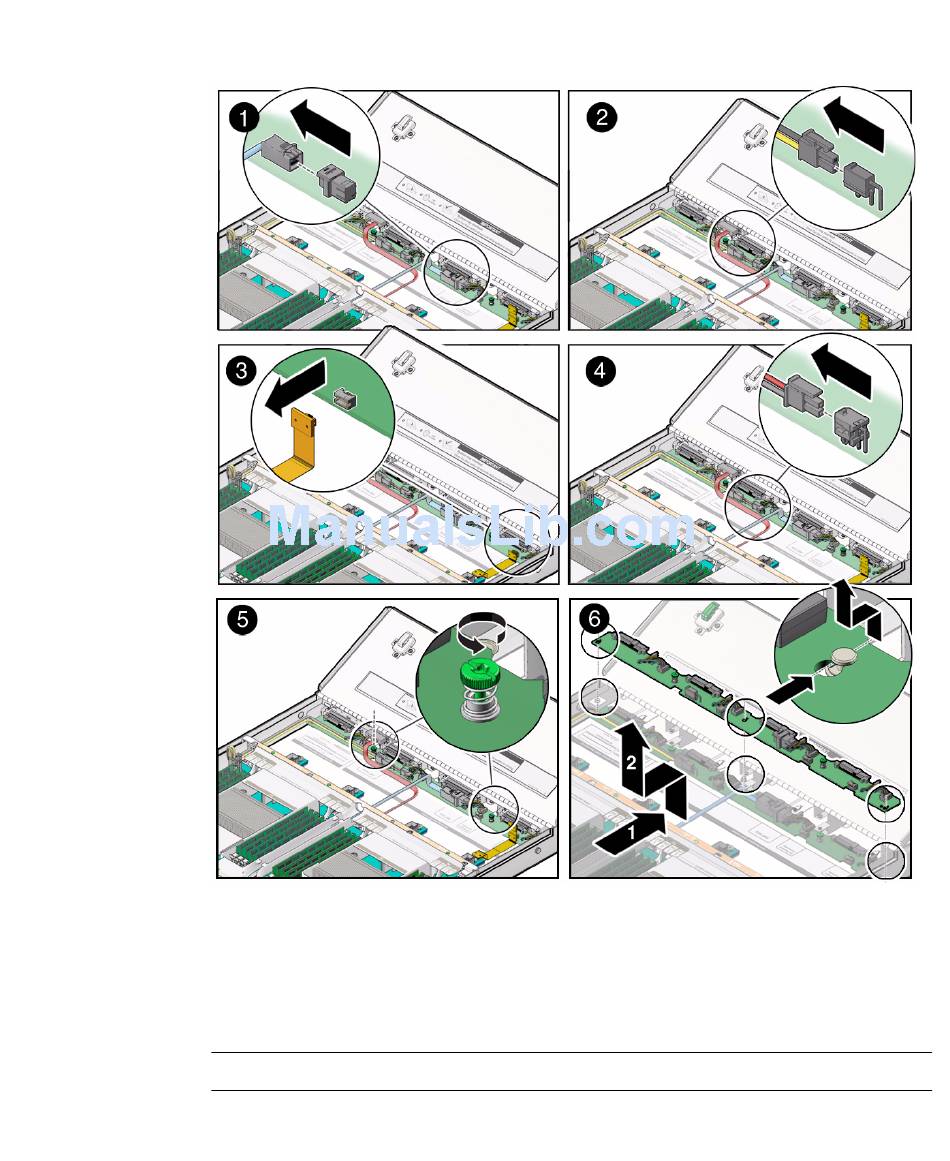

Removing the Disk Backplane
FIGURE:
5. Disconnect the disk backplane power cable from the disk backplane [2].
6. Disconnect the disk backplane LED cable from the disk backplane [3].
7. If the server has a DVD drive, disconnect the DVD drive power cable from the
disk backplane [4].
Note – Servers with a DVD drive have only one disk backplane.
Servicing FRUs
121
