2. Identify the location of the drive that you want to remove.

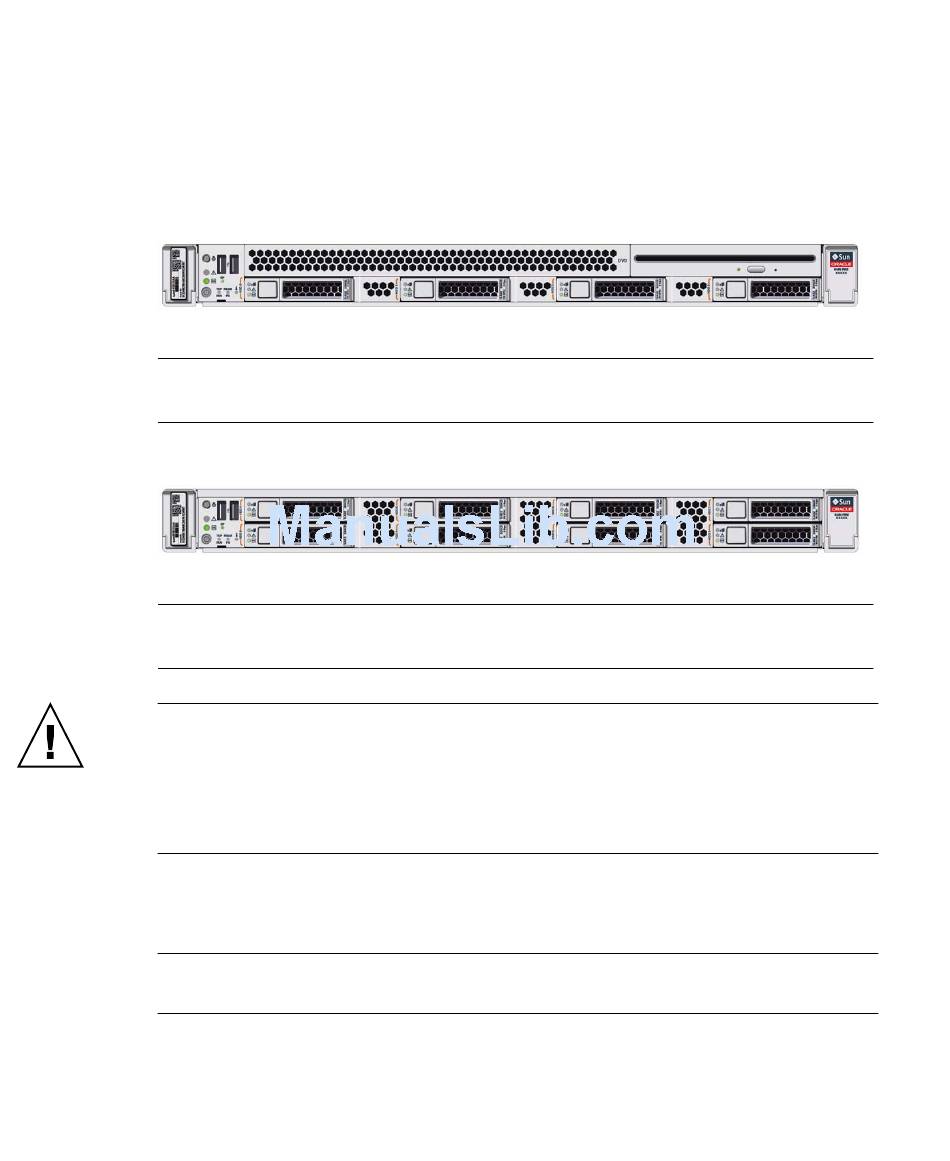

The following illustrations show the location of the drives and the internal system
software designations for the drives.
FIGURE:
HDD0
FIGURE:
HDD4
HDD0
Caution – In Oracle Engineered Systems, storage drive 7 (HDD7) on an eight-drive
system might be populated with a remote battery module for the host bus adapter
(HBA). The battery module is not a customer-replaceable unit (CRU) and should not
be removed or replaced by customers. The battery module should be removed or
replaced only by Oracle field service personnel. For more information, refer to
"Battery Module" on page
3. Type the operating system commands required to stop the server from using the
drive.
Note – The blue OK to Remove LED on the storage drive might not light, as support
for this varies depending on the operating system in use.
The exact commands required depend on the configuration of your drives.
Unmount file systems or issue RAID commands as needed.
48 Sun Server X4-2 Service Manual • May 2014
Drive Location and Numbering on a Server With Four 2.5-inch Drives and a
DVD Drive
HDD1
Drive Location and Numbering on a Server With Eight 2.5-inch Drives
HDD5
HDD1
19.
HDD2
HDD6
HDD2
DVD
HDD3
HDD7
HDD3
