"SER MGT Port" on page 41
■
"NET MGT Port" on page 42
■
"Gigabit Ethernet Ports" on page 43
■
"Video Port" on page 43
■
USB Ports
Two USB ports can be accessed on the server's front panel and two on the rear panel.
Each Each USB port supplies 5V output at 500 mA.

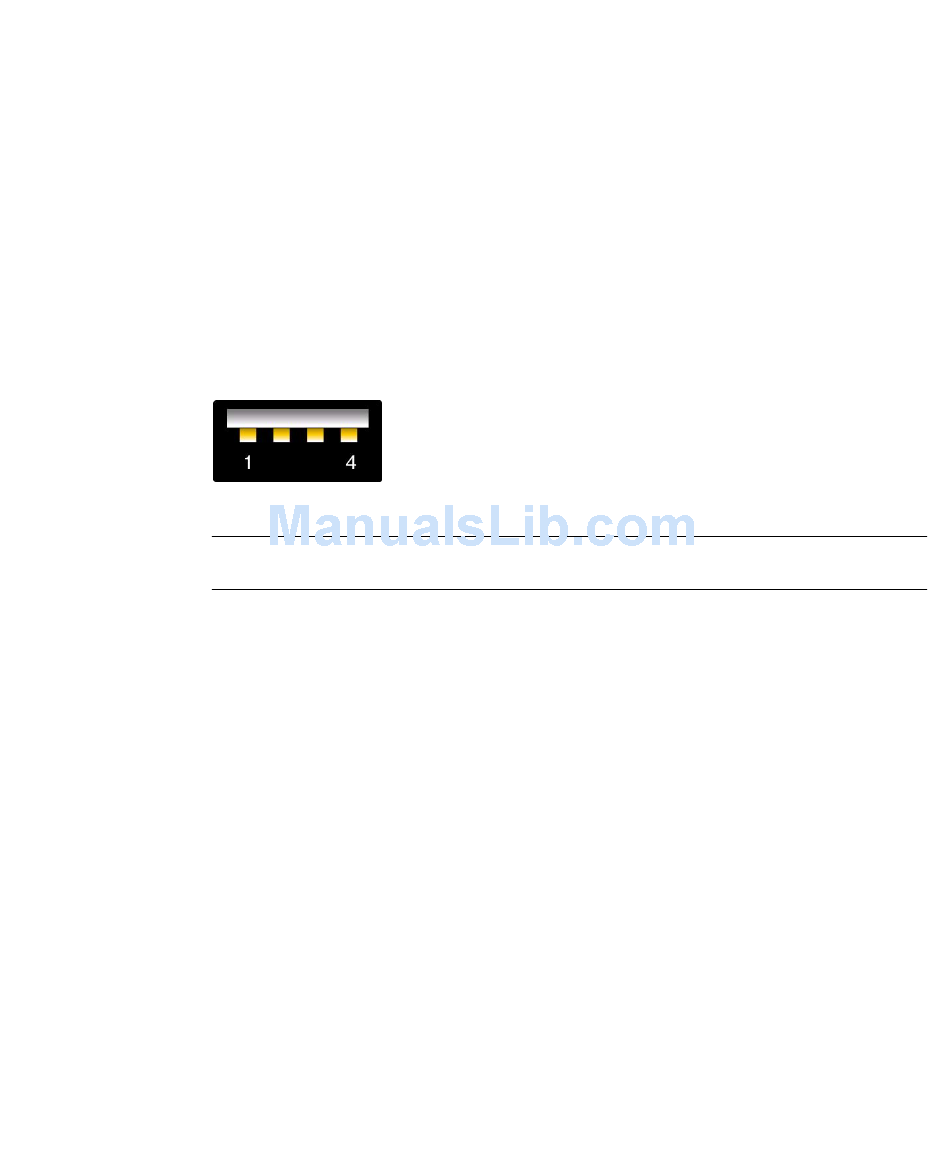

USB Connector
FIGURE:
Figure Legend
1
+5V supply
2
Data -
"Front Panel Components" on page 3
■
"Rear Panel Components" on page 6
■
SER MGT Port
The SER MGT RJ-45 port, located on the rear panel, provides the default connection
to the system console.
3
Data +
4
Ground
41
