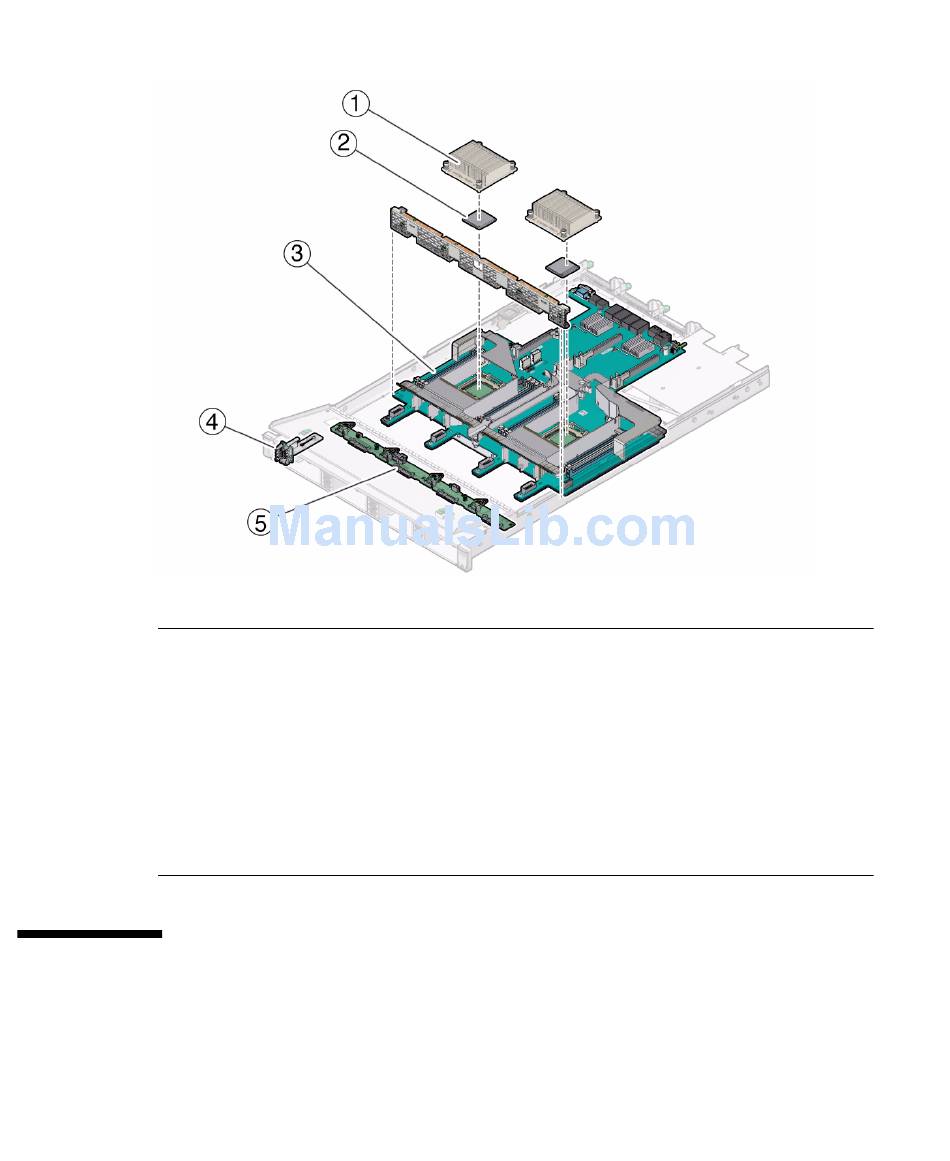

FIGURE:
Figure Legend
1
2
3

Servicing Processors (FRU)

This section describes how to remove and install the processors.
100 Sun Server X4-2 Service Manual • May 2014
FRU Locations
Heatsink(s)
Note: In single-processor systems,
neither a heatsink nor a processor
socket filler are installed in the socket
for processor 1 (P1). To protect the
delicate processor socket pins, the
cover that comes on the motherboard
from manufacturing is left in place.
Processor(s) (FRU)
Note: In single-processor systems, the
processor is installed in socket 0 (P0).
Motherboard (FRU)
4 Front Indicator Module (FIM) (FRU)
5 Disk backplane (FRU)
6 Not applicable
