Pin
1
2
3
4
Related Information
"Rear Panel Components" on page 6
■
"Connect Ethernet Network Cables" on page 76
■

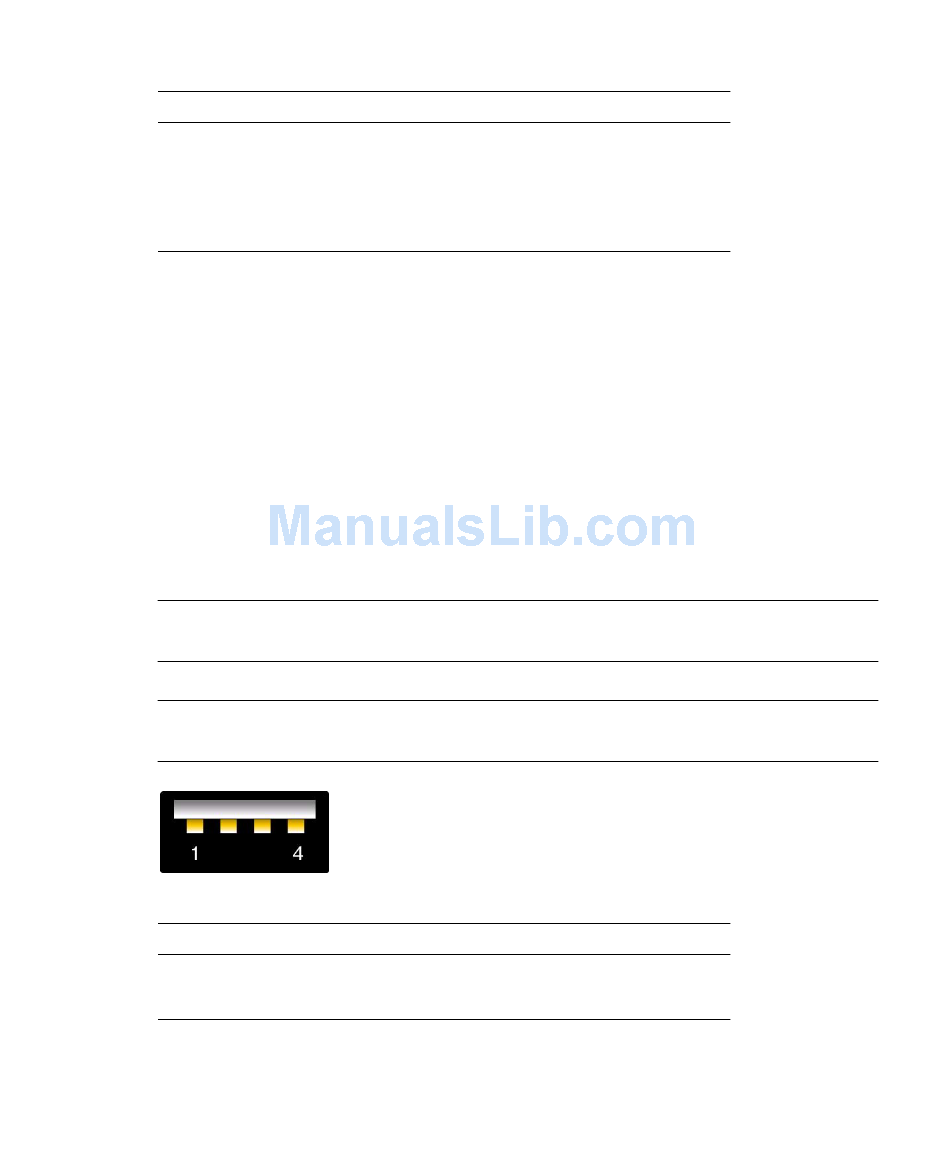

USB Ports
You can access two USB ports from the front of the server and two USB ports from
the rear of the server. The USB ports support hot-plugging. You can connect and
disconnect USB cables and peripheral devices while the server is running, without
affecting server operations.
Note – The maximum USB cable length for connecting to the server's full-speed USB
ports is 5 meters.
Note – You can connect up to 126 devices to each of the four USB controllers (two
ports in front, two ports in rear), for a total of 504 USB devices per server.
Pin
1
2
72
Netra SPARC T4-1 Server Installation Guide • January 2013
Signal Description
Transmit/Receive Data 0 +
Transmit/Receive Data 0 -
Transmit/Receive Data 1 +
Transmit/Receive Data 2 +
Signal Description
+5V supply
Data -
Pin
Signal Description
5
Transmit/Receive Data 2 -
6
Transmit/Receive Data 1 -
7
Transmit/Receive Data 3 +
8
Transmit/Receive Data 3 -
Pin
Signal Description
3
Data +
4
Ground
