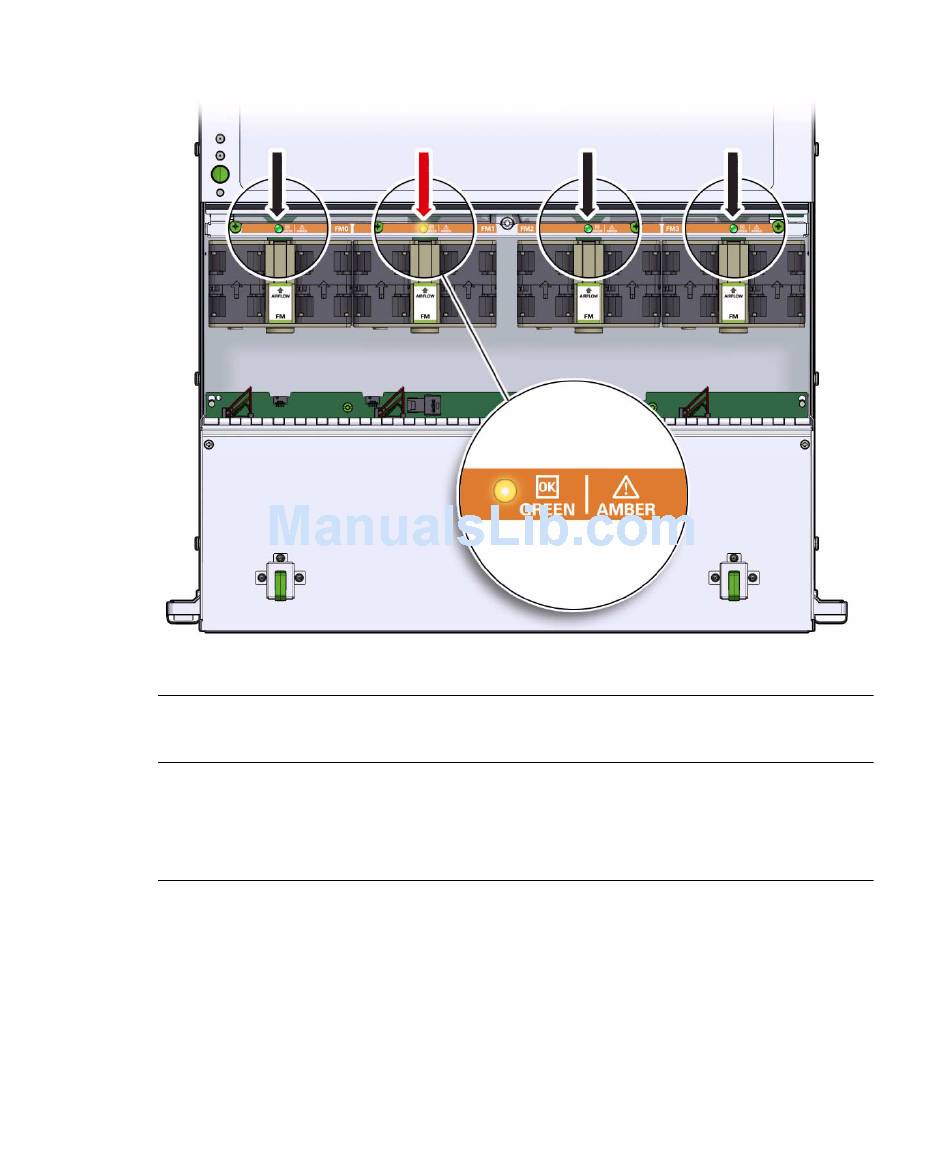

FIGURE:
Status
Indicator
Name
Fan Status
4. Remove the faulty fan module.
a. Using your thumb and forefinger, grasp the fan module in the finger recesses
b. Lift the fan module straight up and out of the chassis.
52
Sun Server X4-2 Service Manual • May 2014
Server Fan Status Indicator
Color
Bicolored:
Amber/Green
located in the plastic between the fans.
State Meaning
• Amber – The fan module is faulty. The front TOP FAN
LED and the front and rear panel Service Required LEDs
are also lit if the system detects a fan module fault.
• Green – The fan module is correctly installed and
operating within specification.
