In any of the above methods, Authentication User name & Password can be send in below format:
http://username:password@URL
[Here we have taken http case as an example]
The custom DHCP option must be in accordance with the one defined in the DHCP server.

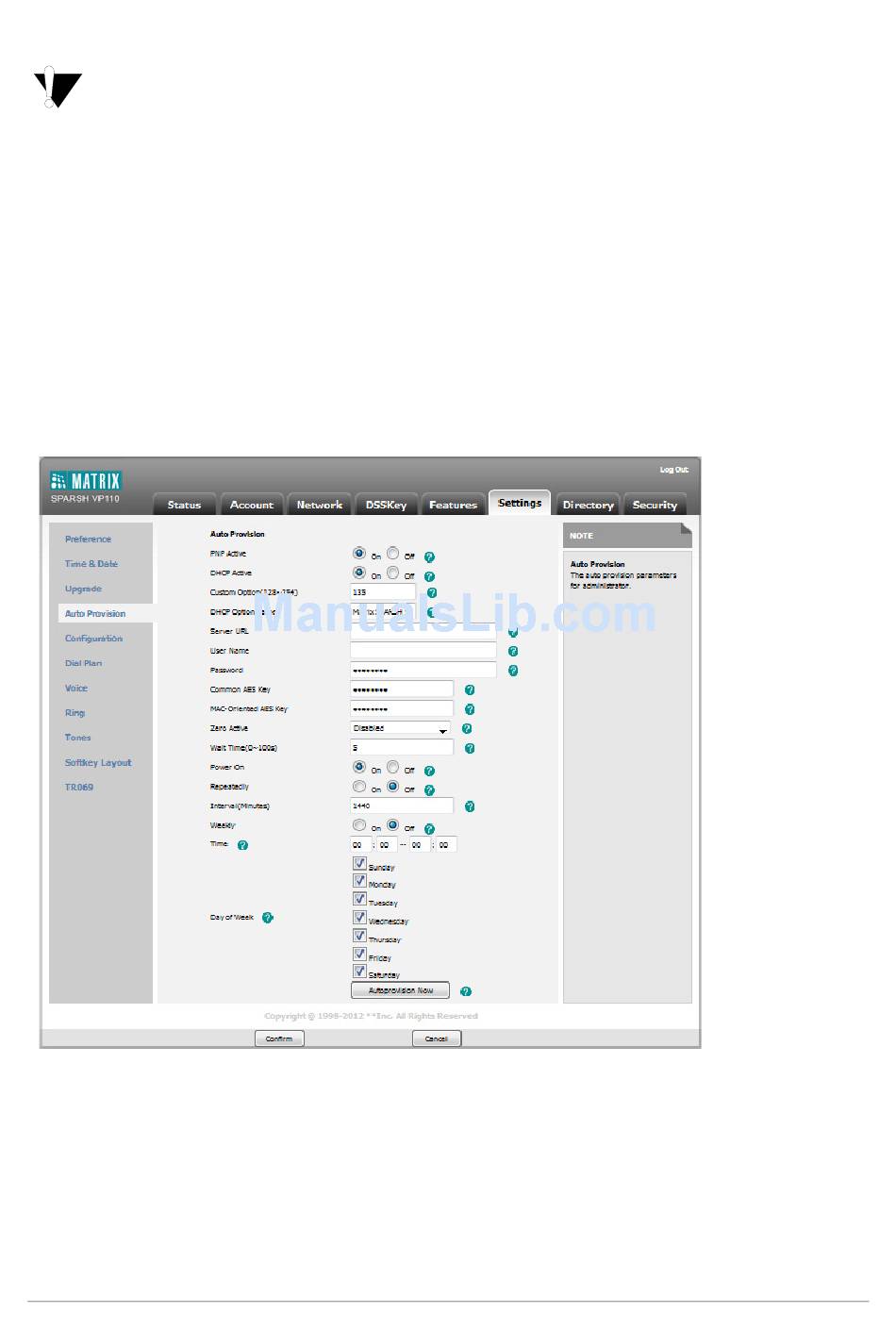

To configure the DHCP option via web user interface:
• Click on Settings -> Auto Provision.
• Select the On check box in the DHCP Active field.
• Enter the desired value in the Custom Option (128~254) field.
• Enter the desired value in the DHCP Option Value field.
The default value is Matrix SPARSH VP110.
• Click Confirm to accept the change.
Phone Flash – Manual Entry
SPARSH VP110 IP phones support obtaining the provisioning server address from the phone flash. To obtain the
provisioning server address by reading the phone flash, make sure the configuration is set properly. These
