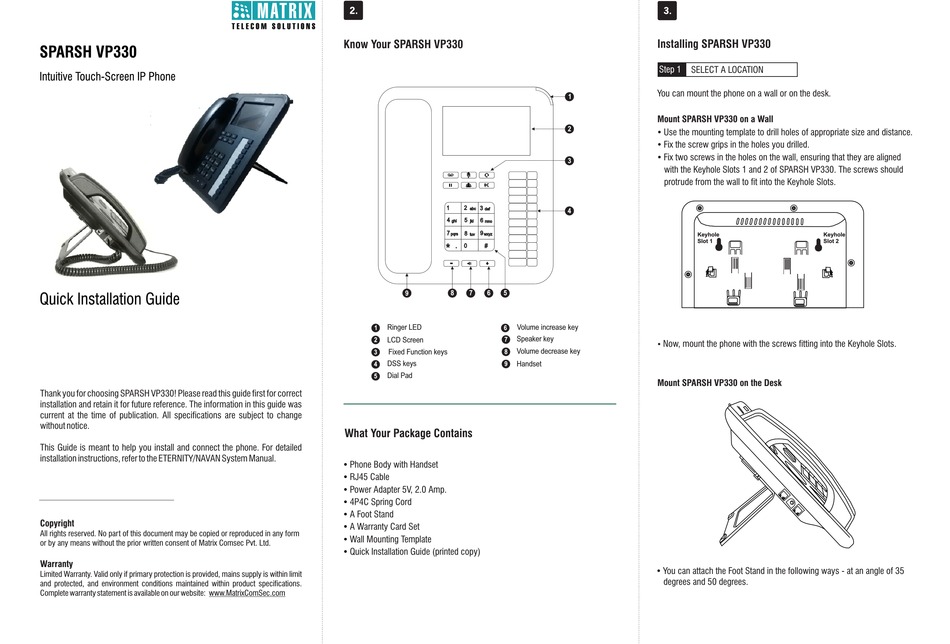

Matrix SPARSH VP330 Quick Installation Manual

Thank you for choosing SPARSH VP330! Please read this guide first for correct
installation and retain it for future reference. The information in this guide was
current at the time of publication. All specifications are subject to change
without notice.
This Guide is meant to help you install and connect the phone. For detailed
installation instructions, refer to the ETERNITY/NAVAN System Manual.
Copyright
All rights reserved. No part of this document may be copied or reproduced in any form
or by any means without the prior written consent of Matrix Comsec Pvt. Ltd.
Warranty
Limited Warranty. Valid only if primary protection is provided, mains supply is within limit
and protected, and environment conditions maintained within product specifications.
Complete warranty statement is available on our website: www.MatrixComSec.com
Know Your SPARSH VP330
1 2 3
abc
def
4 5 6
ghi jkl mno
7 9
8
pqrs tuv wxyz
* 0 #
9 8 7 6 5
Ringer LED Volume increase key
1 6
Speaker key
LCD Screen 7
2
Volume decrease key
Fixed Function keys
3 8
DSS keys Handset
4 9
Dial Pad
5
What Your Package Contains
Ÿ Phone Body with Handset
Ÿ RJ45 Cable
Ÿ Power Adapter 5V, 2.0 Amp.
Ÿ
4P4C Spring Cord
Ÿ A Foot Stand
Ÿ A Warranty Card Set
Ÿ Wall Mounting Template
Ÿ Quick Installation Guide (printed copy)
Installing SPARSH VP330
Step 1
SELECT A LOCATION
You can mount the phone on a wall or on the desk.
1
Mount SPARSH VP330 on a Wall
2
Ÿ Use the mounting template to drill holes of appropriate size and distance.
Ÿ Fix the screw grips in the holes you drilled.
Ÿ Fix two screws in the holes on the wall, ensuring that they are aligned
3
with the Keyhole Slots 1 and 2 of SPARSH VP330. The screws should
protrude from the wall to fit into the Keyhole Slots.
4
Keyhole
Slot 1
Now, mount the phone with the screws fitting into the Keyhole Slots.
Ÿ
Mount SPARSH VP330 on the Desk
Ÿ You can attach the Foot Stand in the following ways - at an angle of 35
degrees and 50 degrees.
Keyhole
Slot 2
