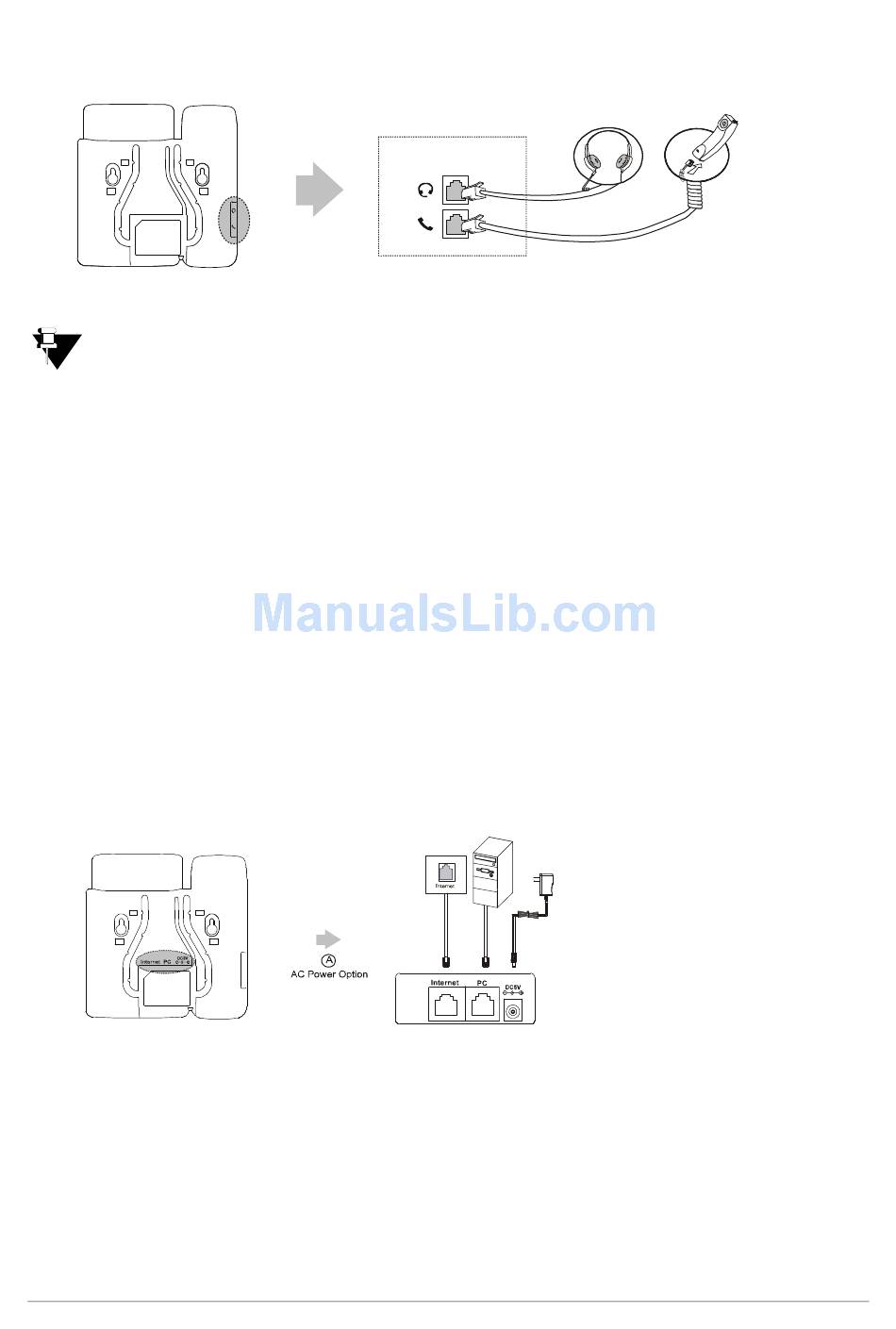

Connect the handset and optional headset.
2.
A headset is not included in the packaging contents. Contact your re-seller/vendor for more information.
Connect the network and power.
3.
You have two options for power and network connections. Your network administrator will advise you for
which one to use.
• AC power
• Power over Ethernet (PoE)
AC Power
To connect the AC power:
• Connect the DC plug on the power adapter to the DC5V port on the phone and connect the other end
of the power adapter into an electrical power outlet.
• Connect the included or a standard Ethernet cable between the Internet port on the phone and the one
on the wall or switch/hub device port.
Power over Ethernet (PoE)
With the included or a regular Ethernet cable, the IP phone can be powered from a PoE-compliant switch
or hub.
To connect the PoE for the IP phone:
Matrix SPARSH VP110 User Guide
PC Connection
(Optional)
Power Adapter
(DC 5V)
21
