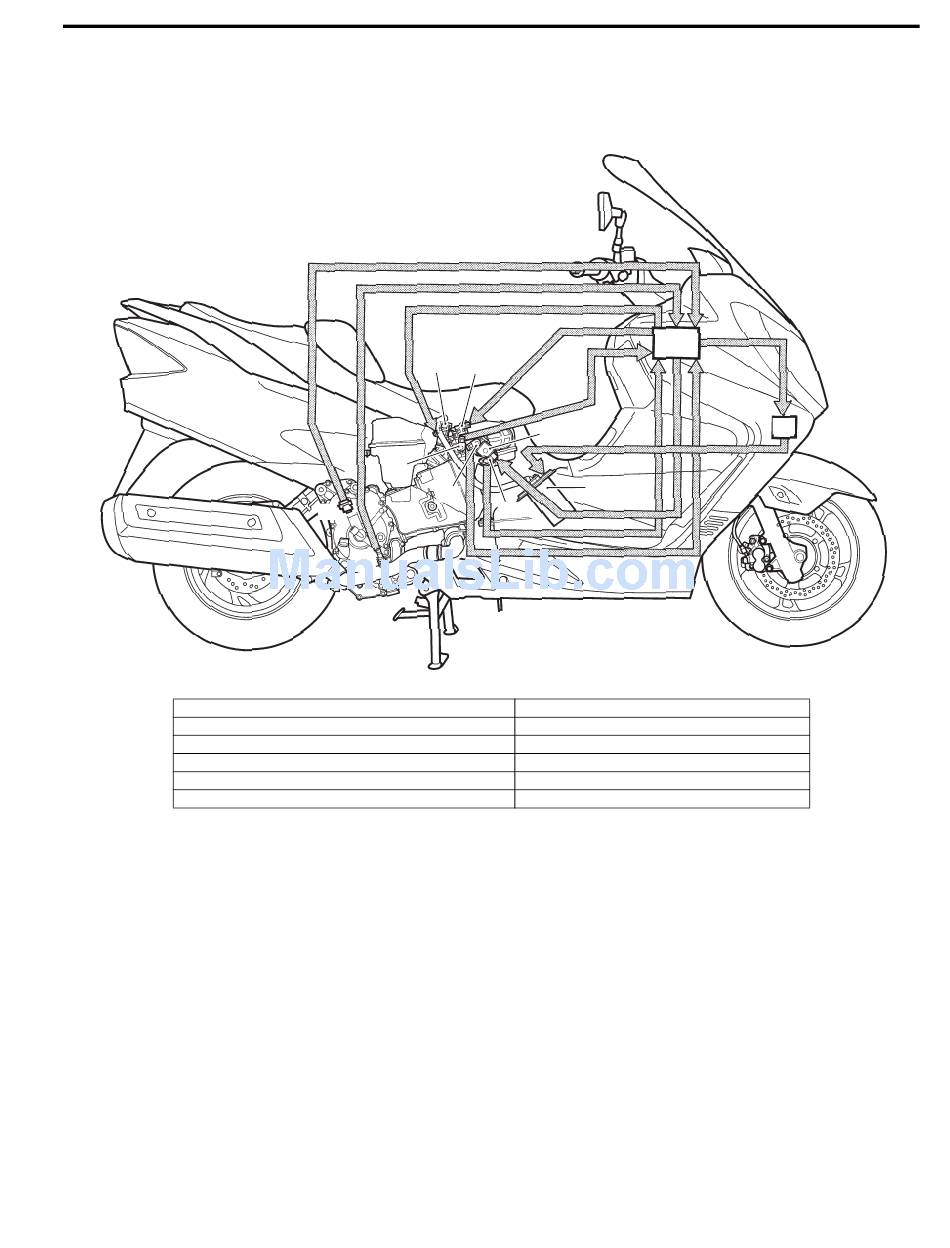

FI System Parts Location
"A": ECM
"B": Fuel injector (FI)
"C": Idle speed control valve (ISC valve)
"D": Throttle position sensor (TPS)
"E": Secondary throttle position sensor (STPS)
"F": Secondary throttle valve actuator (STVA)
Component Location
"B"
"C"
"D"
"E"
"I"
"J"
Engine General Information and Diagnosis:
"A"
"F"
"H"
"G"
"G": Intake air temperature (IATS)
"H": Fuel pump (FP)
"I": Crankshaft position sensor (CKPS)
"J": Heated oxygen sensor (HO2S)
"K": Fuel pump relay (FP relay)
1A-6
B705H11103001
"K"
I705H1110131-01
