Suzuki AN400 Service Manual page 193

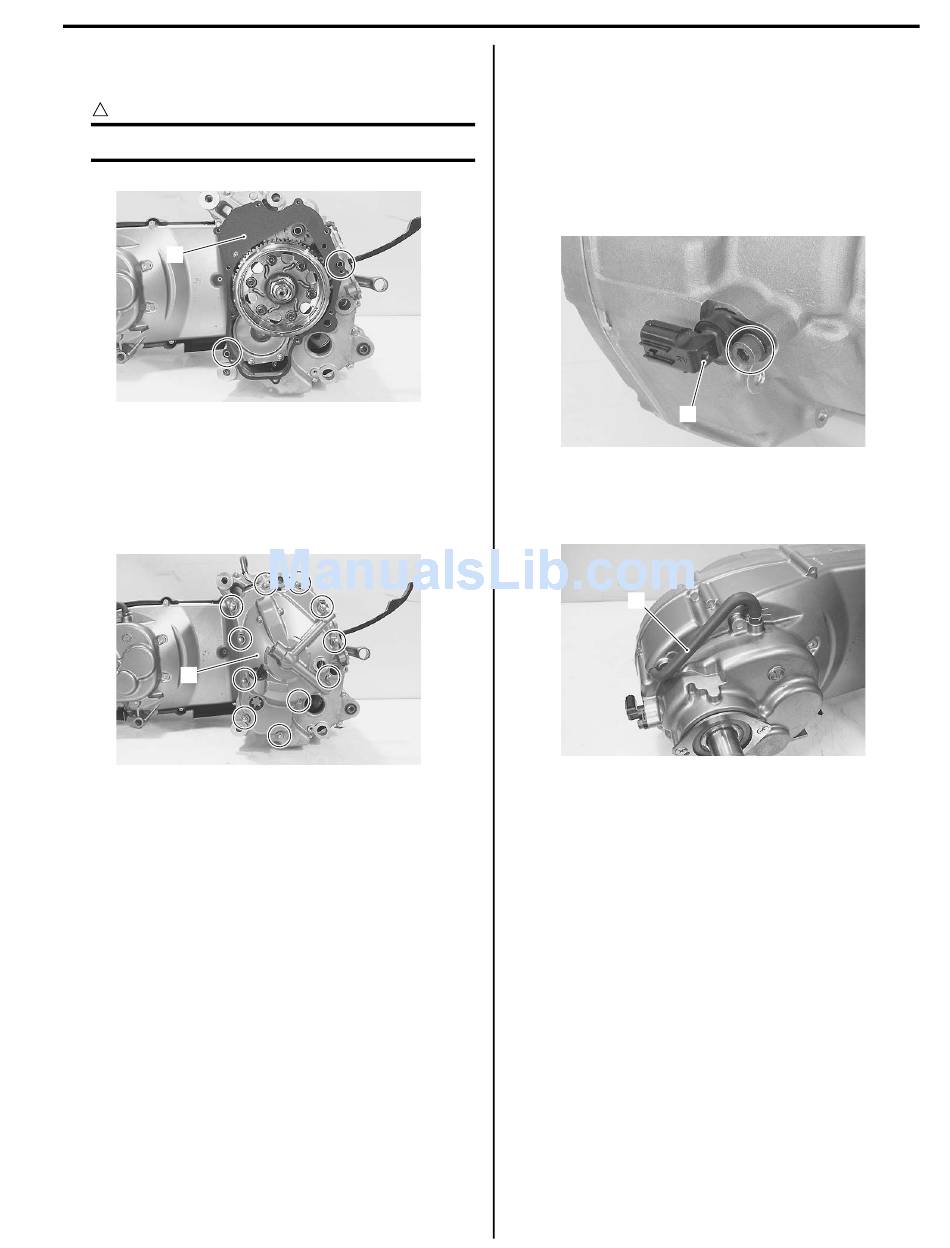

Generator Cover
• Install the dowel pins (1) and gasket (2).
CAUTION
!
Replace the gasket with a new one.
2
• Install the generator cover (3).
• Tighten the generator cover bolts to the specified
torque.
Tightening torque
Generator cover bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
3
• Install the final gear assembly. Refer to "Final Gear
Assembly Removal and Installation in Section 3A
(Page3A-3)".
• Install the clutch and movable driven face. Refer to "V-
belt Type Continuously Variable Automatic
Transmission Removal and Installation in Section 5A
(Page5A-3)".
Water Pump
Refer to "Water Pump Removal and Installation in
Section 1F (Page1F-14)".
Speed Sensor
• Install the speed sensor (1).
Tightening torque
Speed Sensor: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
I705H1140230-01
Final Reducation Gear Breather Hose
• Install the final reducation gear breather hose (1).
I705H1140231-03
Engine Mechanical:
1
1
1D-49
I705H1140077-01
I705H1140076-04
