EPSON AcuLaser C1100

4.7.2 CLEANER ASSY

REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove the 2 screws (silver, with flange, 10mm) fastening GUIDE-ROS CLN to
the main unit.
3. Remove GUIDE-ROS CLN from the main unit.
4. Remove CLEANER ASSY from the main unit.
REINSTALLATION
1. Align CLEANER ASSY with the rails on the main unit, and insert.
2. Match the boss on GUIDE-ROS CLN with the hole on the main unit, and attach.
3. Fasten GUIDE-ROS CLN to the main unit with the 2 screws (silver, with flange,
10mm).
4. Attach COVER ASSY RH. (p.301)
DISASSEMBLY AND ASSEMBLY

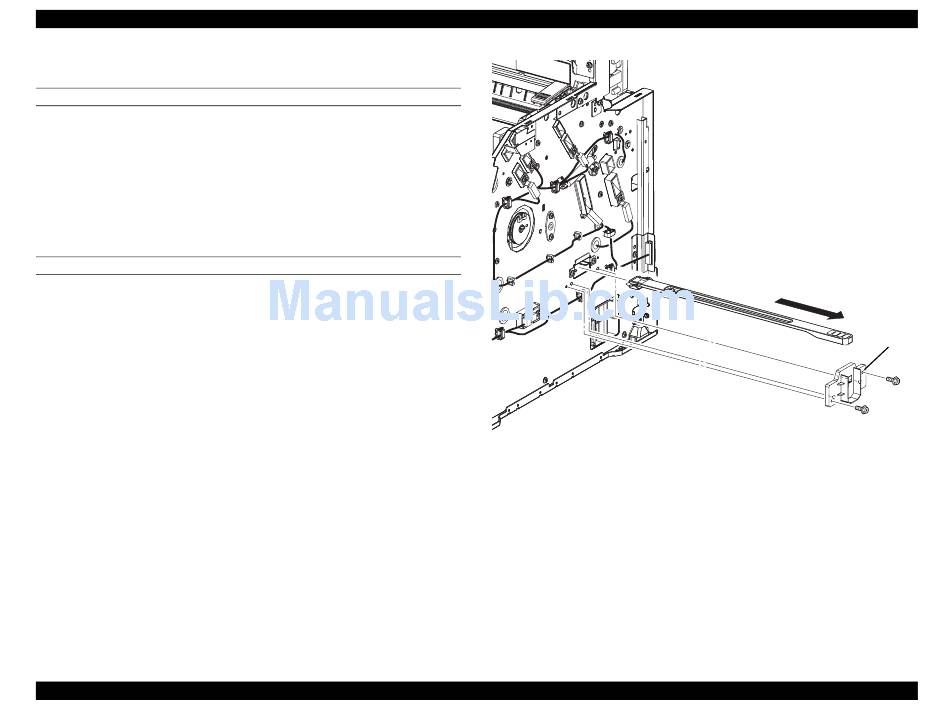

Figure 4-87. Removal of CLEANER ASSY
ROS
Revision B
4)
3)
2)
2)
Leg_Sec03_087EB
377
