EPSON AcuLaser C1100

4.8.2 ANTENNA ASSY-CTRG

Step numbers with [ ] in the figure indicate the step of
C A U T I O N
reinstallation.
REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove ANTENNA CTRG. (p.380)
3. Remove the 2 screws (silver, with flange, tapping, 8 mm) fastening ANTENNA
ASSY-CTRG to the main unit.
4. Press the boss fastening ANTENNA ASSY-CTRG to the main unit, and remove
ANTENNA ASSY-CTRG.
REINSTALLATION
1. Remove the toner cartridge overlaying the attachment position of ANTENNA
ASSY-CTRG.
2. Match the boss on ANTENNA ASSY-CTRG with the attachment position, and
attach to the main unit.
3. Press ANTENNA ASSY-CTRG from the inside of the main unit (hole on FRAME
ASSY-ROTARY), and firmly insert the boss on ANTENNA ASSY-CTRG into
the hole on the main unit.
4. Fasten ANTENNA ASSY-CTRG to the main unit with the 2 screws (silver, with
flange, tapping, 8 mm).
5. Attach ANTENNA CTRG. (p.380)
6. Attach COVER ASSY RH. (p.301)
DISASSEMBLY AND ASSEMBLY
[3)]
4)-2

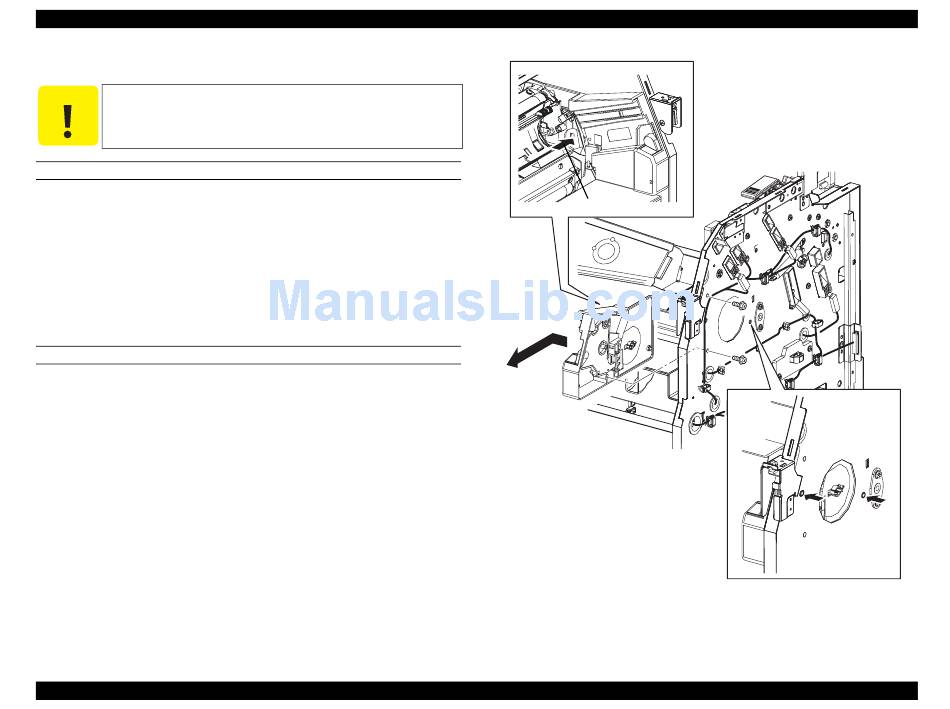

Figure 4-89. Removal of ANTENNA ASSY-CTRG
DEVE
Revision B
3)
3)
4)-1
4)-1
Leg_Sec03_089EB
379
