EPSON AcuLaser C1100

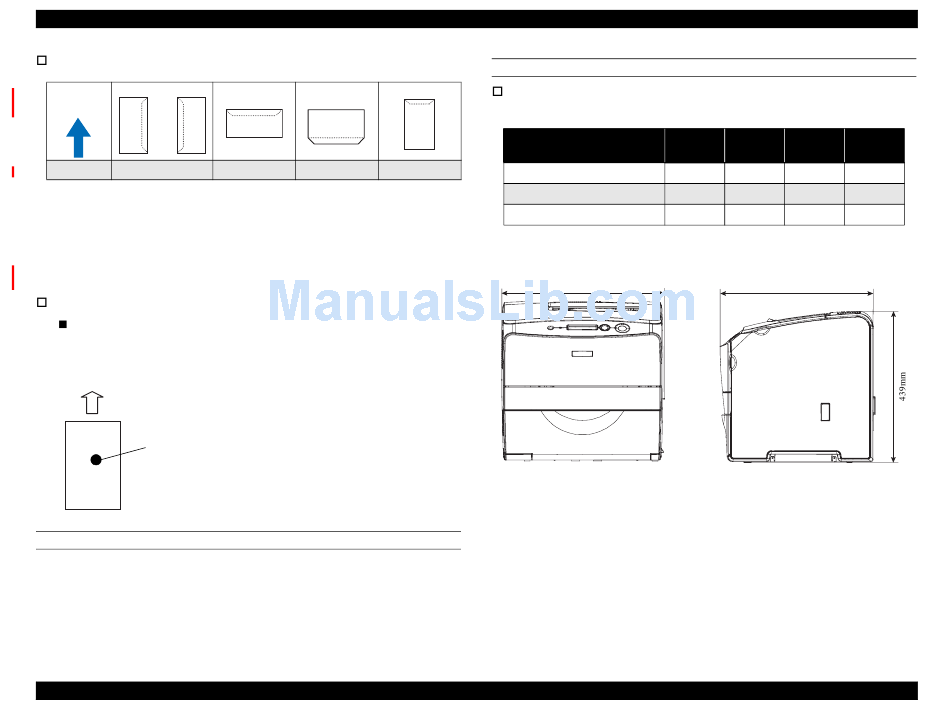

Envelope orientation
Paper feed
direction
Envelope type Com-10
NOTE 1: Set envelopes with its print surface facing up
2: Image quality and feed is not guaranteed when printing on the back side (flap side) of
envelopes.
Note *1: Envelopes with adhesive or tape are not available.
*2: Be sure to set it with its flap opening, but the flap width is 110mm or less, the
enbelope cannot be fed.
The printing surface set direction
Set paper with printing surface facing up
(Both MP tray and 500-sheet cassette)
Paper feed direction
Printing surface
PAPER EJECT CAPACITY
250 sheets, Face down only
NOTE: Conditions of the capacity: 22 ºC/55% RH, standard paper
(simplex/duplex printing).
The print ratio is 5% for both B/W and color printing
(With color printing, 5% for each color)
PRODUCT DESCRIPTION
*1 *2
DL / C6 MONARCH C5 / ISO-B5
DIMENSIONS AND WEIGHT
Dimensions and weight of each unit
Main unit
500-sheet cassette unit
Duplex unit
NOTE 1: Manufacturing tolerance is ± 5 mm in dimensions and ± 0.5 kg in weight.
2: Consumables are not included in the main unit weight (including controller).
445mm
Basic Specifications
Table 1-9. Dimensions and weight
Width Depth
(mm) (mm)
445 445
440 446
435 210
445mm
Figure 1-1. Dimensions (Main Unit)
Revision B
Height Weight
(mm) (kg)
25
439
130 8
470 4
26
