Erasing a block

Note:
To erase a block:
1. On Screen Painter, place the cursor over one corner of the block, and select Erase
block .
The cursor returns to its original position, and the following message is displayed on
the status line:
Move cursor to define opposite corner of block, press RETURN .
2. Move the cursor to the opposite corner of the block. The block should include all fields
and text you want to erase.
The block is highlighted as you move the cursor. (See the following figure.)

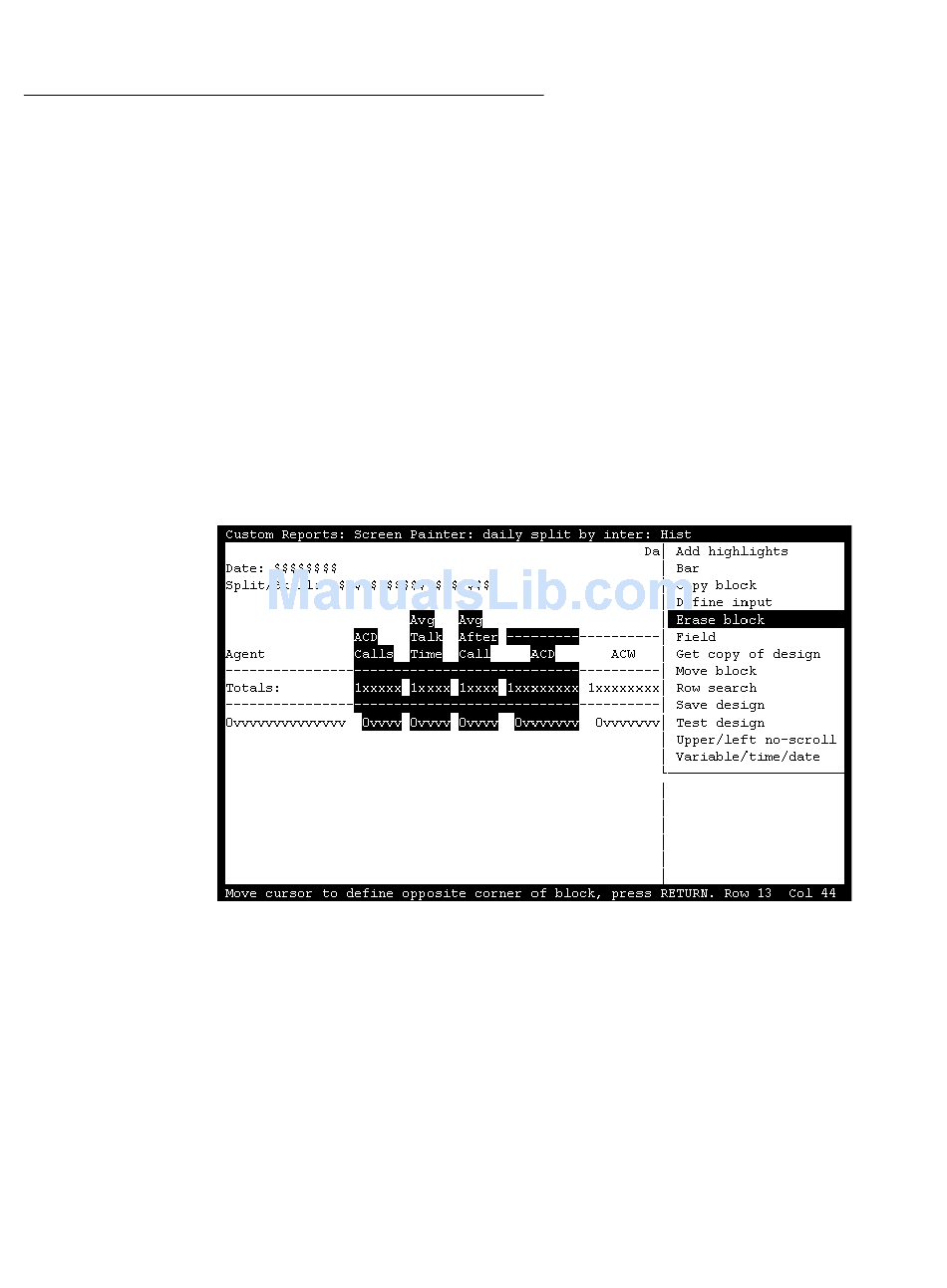

Defining a block to erase
In the sample above, we want to erase the middle section of the copied report design.
To accomplish that (see previous figure), we have scrolled horizontally to the middle
section and defined the block we want to erase.
3. Press
An acknowledgment window is displayed.
4. Enter y , and press
All fields and text within the block are removed. (See the following figure.)
Prior to completing a block erase, you can press
erasure.
Return
Return
Editing a report with blocks
to cancel the
Ctrl+c
Issue 3.0 May 2002 49
