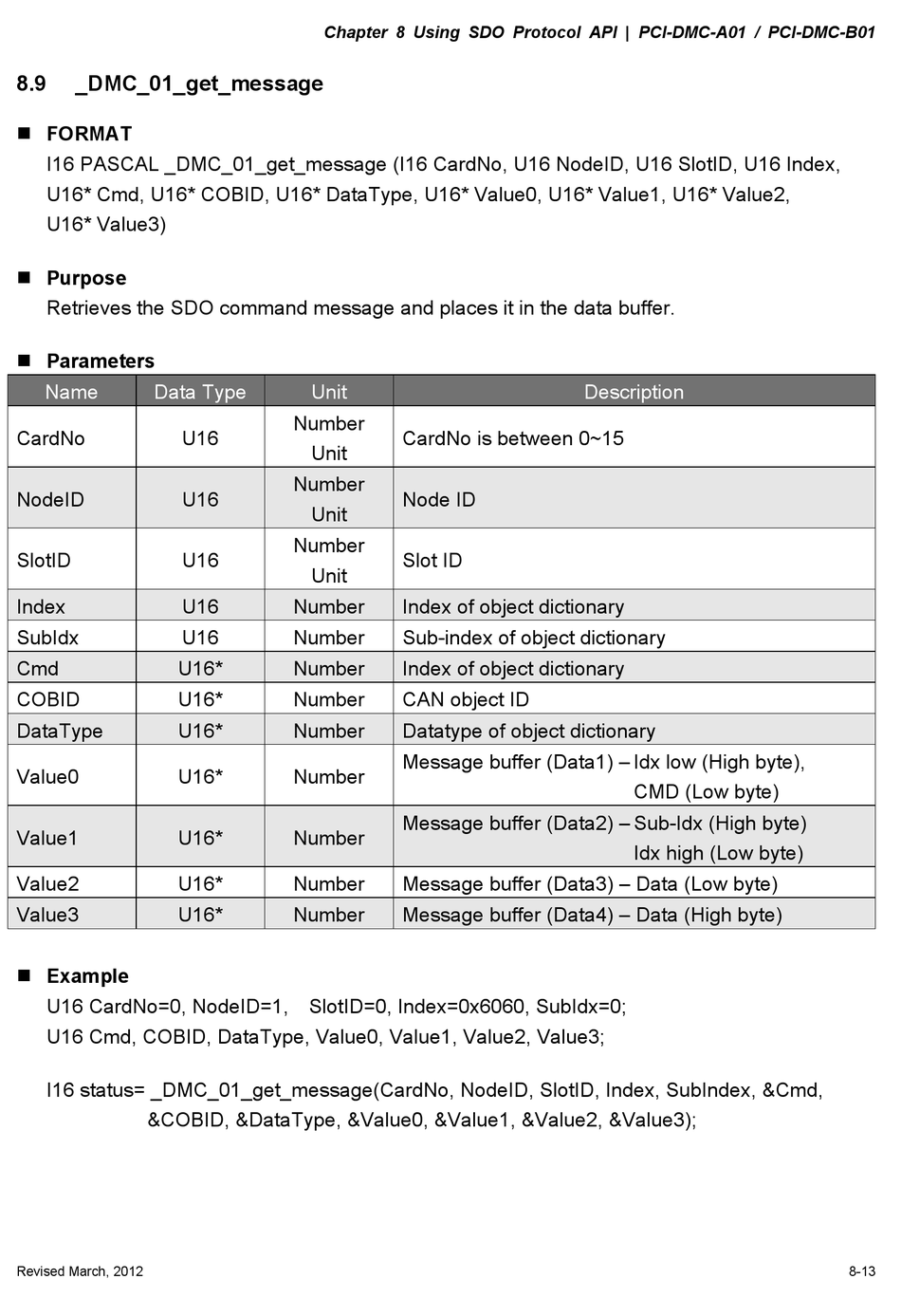

8.9 _DMC_01_get_message
 FORMAT
I16 PASCAL _DMC_01_get_message (I16 CardNo, U16 NodeID, U16 SlotID, U16 Index,
U16* Cmd, U16* COBID, U16* DataType, U16* Value0, U16* Value1, U16* Value2,
U16* Value3)
 Purpose
Retrieves the SDO command message and places it in the data buffer.
 Parameters
Name Data Type
CardNo U16
NodeID U16
SlotID U16
Index U16
SubIdx U16
Cmd U16*
COBID U16*
DataType U16*
Value0 U16*
Value1 U16*
Value2 U16*
Value3 U16*
 Example
U16 CardNo=0, NodeID=1, SlotID=0, Index=0x6060, SubIdx=0;
U16 Cmd, COBID, DataType, Value0, Value1, Value2, Value3;
I16 status= _DMC_01_get_message(CardNo, NodeID, SlotID, Index, SubIndex, &Cmd,
&COBID, &DataType, &Value0, &Value1, &Value2, &Value3);
