3 1/2-inch Hard Disk Drive Removal

Remove the 3 1/2-inch hard disk drive as follows.
1. Remove the top cover as previously described.
Unplug the hard disk drive power cable and signal cable from the hard disk drive
2.
(see Figure Section 6-14).

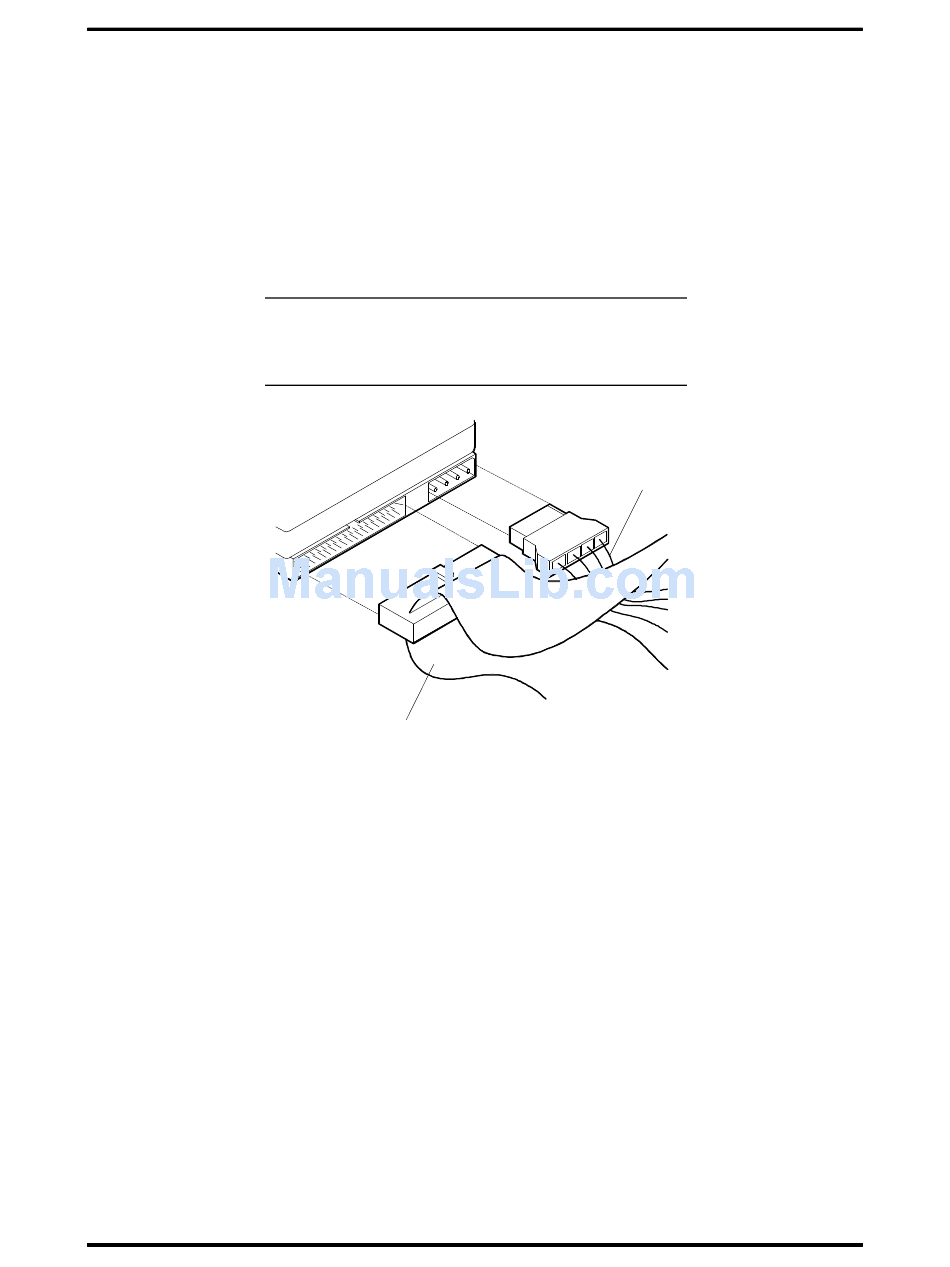

Figure Section 6-14 3 1/2-Inch Hard Disk Drive Cables
3. Remove the three screws holding the device cage to the rear of the chassis (see
Figure Section 6-16).
NOTE: When reinstalling the drives, note that
all power cables are keyed to fit only in the cor-
rect position.
IDE
Cable
Minitower Repair
Power
Cable
6-13
