3 1/2-inch Hard Disk Drive Removal

Remove the 3 1/2-inch hard disk drive as follows.
1. Remove the side panel as previously described.
Unplug the hard disk drive power and signal cables from the hard disk drive (see
2.
Figure Section 5-17).

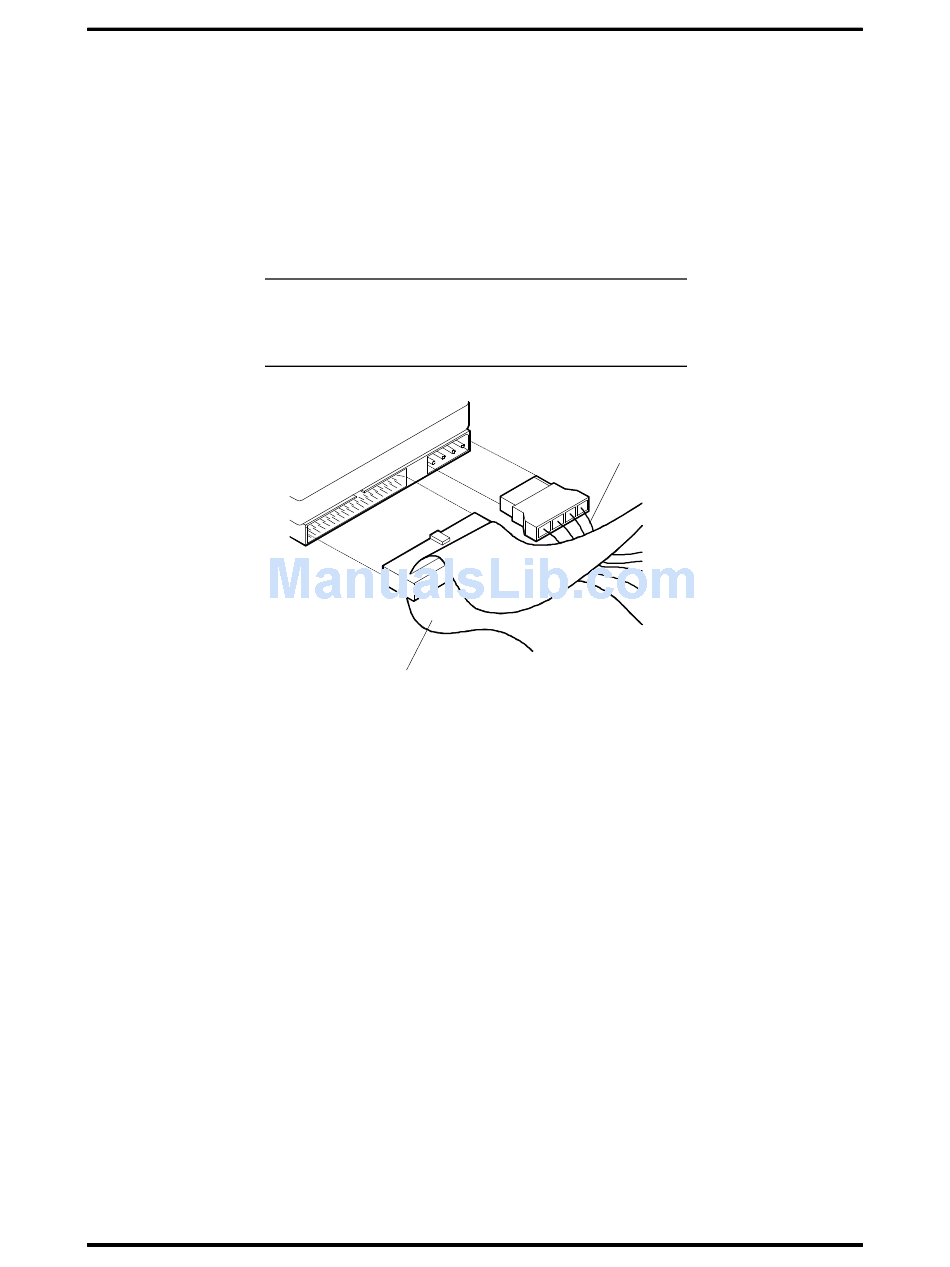

Figure Section 5-17 3 1/2-Inch Hard Disk Drive Cables
NOTE: When reinstalling the drives, note that
all power cables are keyed to fit only in the
correct position.
IDE
Cable
Repair
Power
Cable
5-11
