ETC Obsession User Manual page 333

Appendix B DIP switch and jumper settings

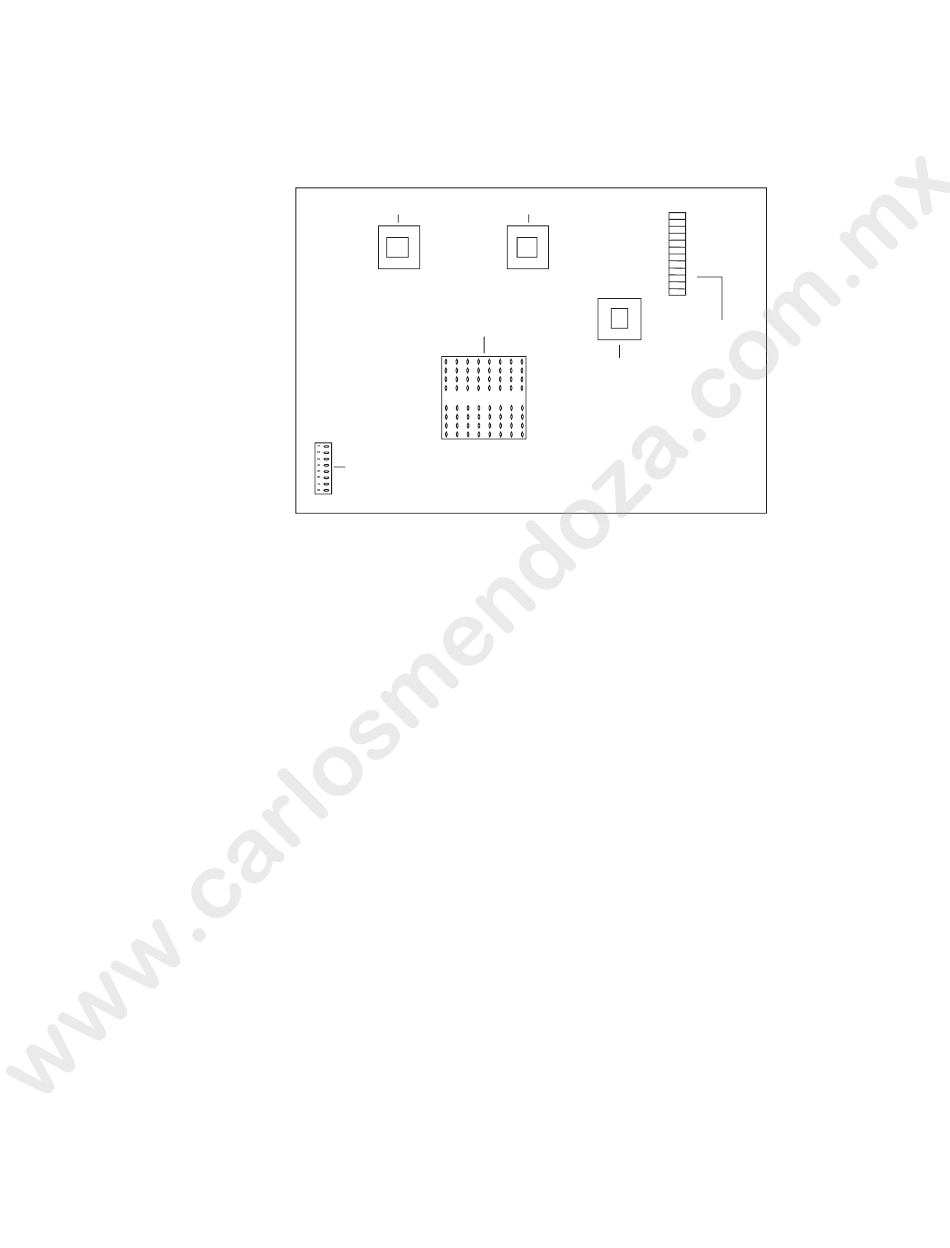

Serf Board - Revision C
The Revision C Serf Board appears in older Obsession consoles
and Processor Units. It contains one 8-switch DIP switch unit and
a set of 12 jumpers.
4052B4011 REV. C
copyright 1992 ETC, Inc.
MADE IN THE U.S.A.
Main DIP
switches
To enable the console for use on t e ETCNet network, adjust the
settings of jumpers on the console s logic board.
1. Locate Net jumpers 1 thr ugh 12, at the back right corner of
the main circuit board near the fans). See illustration above.
2. If your ETCNet c ble is plugged into the BNC (ThinNet) con-
nector, install only jumpers 1 through 6.
3. If your ETCNet c ble is plugged into the RJ45 (Twisted Pair)
connect r or
jumpers 7 hrough 12.
Back
Video card Video card
Main Processor
Front
e DB15 (ThickNet) connector, install only
333
1
2
3
4
5
6
7
8
9
10
11
12
Net
jumpe s
ETCNet card
