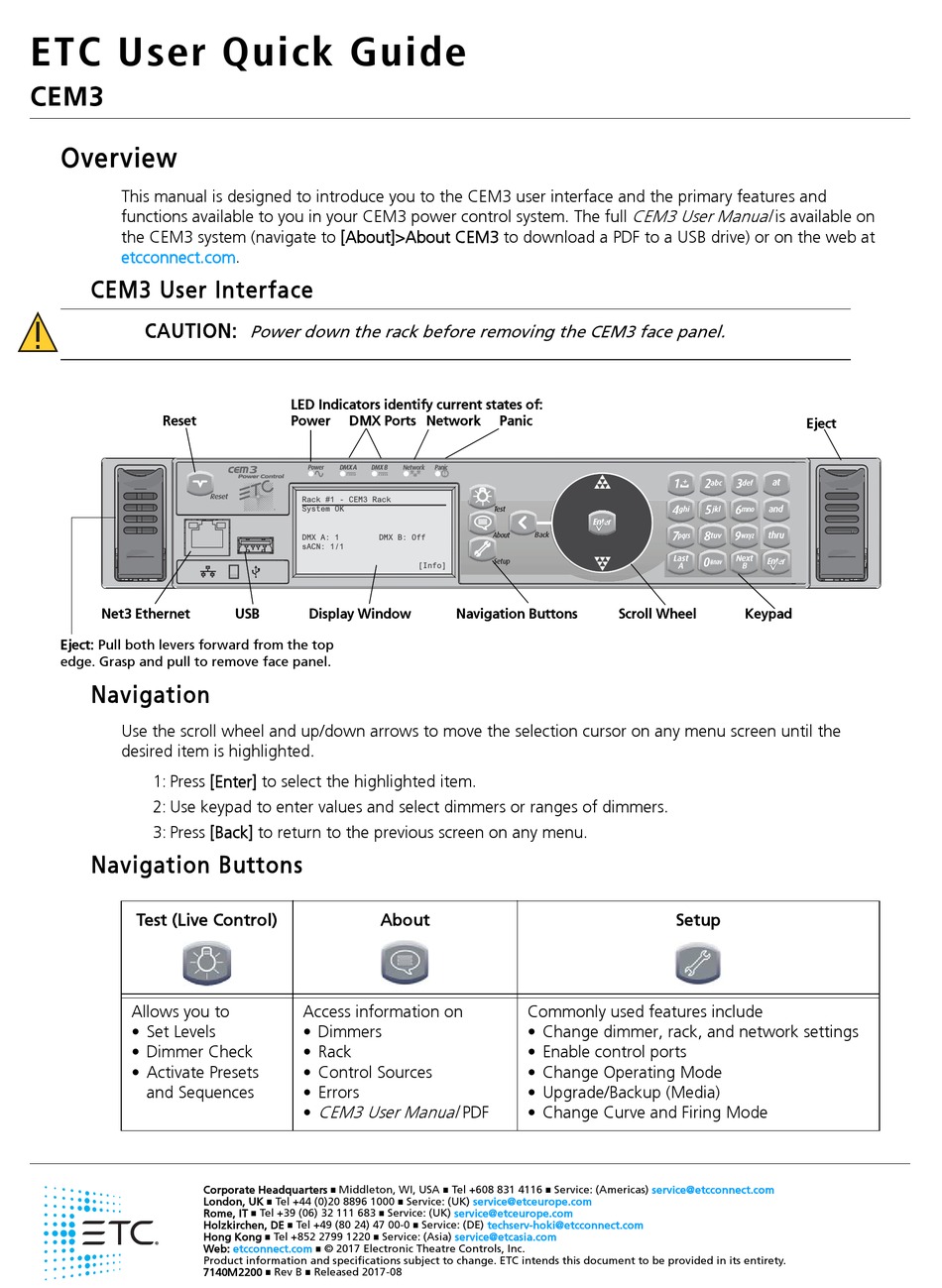

ETC User Quick Guide
CEM3
Overview
This manual is designed to introduce you to the CEM3 user interface and the primary features and
functions available to you in your CEM3 power control system. The full
the CEM3 system (navigate to [About]>About CEM3 to download a PDF to a USB drive) or on the web at
etcconnect.com.
CEM3 User Interface
CAUTION:
Reset
Net3 Ethernet
Eject: Pull both levers forward from the top
edge. Grasp and pull to remove face panel.
Navigation
Use the scroll wheel and up/down arrows to move the selection cursor on any menu screen until the
desired item is highlighted.
1: Press [Enter] to select the highlighted item.
2: Use keypad to enter values and select dimmers or ranges of dimmers.
3: Press [Back] to return to the previous screen on any menu.
Navigation Buttons
Test (Live Control)
Allows you to
• Set Levels
• Dimmer Check
• Activate Presets
and Sequences
Corporate Headquarters
London, UK
Rome, IT
Holzkirchen, DE
Hong Kong
Web:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7140M2200
Power down the rack before removing the CEM3 face panel.
LED Indicators identify current states of:
Power
DMX Ports Network
Rack #1 - CEM3 Rack
System OK
DMX A: 1
DMX B: Off
sACN: 1/1
USB
Display Window
About
Access information on
• Dimmers
• Rack
• Control Sources
• Errors
CEM3 User Manual
•
Middleton, WI, USA
Tel +44 (0)20 8896 1000
Service: (UK)
Tel +39 (06) 32 111 683
Service: (UK)
Tel +49 (80 24) 47 00-0
Tel +852 2799 1220
Service: (Asia)
etcconnect.com
© 2017 Electronic Theatre Controls, Inc.
Rev B
Released 2017-08
Panic
[Info]
Navigation Buttons
Commonly used features include
• Change dimmer, rack, and network settings
• Enable control ports
• Change Operating Mode
• Upgrade/Backup (Media)
PDF
• Change Curve and Firing Mode
Tel +608 831 4116
Service: (Americas)
service@etceurope.com
service@etceurope.com
Service: (DE)
techserv-hoki@etcconnect.com
service@etcasia.com
CEM3 User Manual
is available on
Scroll Wheel
Keypad
Setup
service@etcconnect.com
Eject
