Operating Guide | VLT® AQUA Drive FC 202

3.6.3 Local Control Panel (LCP)

Status
A1.1
0 RPM 0.00 A
A1.2
0.0 Hz
Off Remote
B1
Quick
Status
Menu
B2
C1
On
D1
Warn.
D2
Alarm
D3
Hand
E1
Off
On
E2

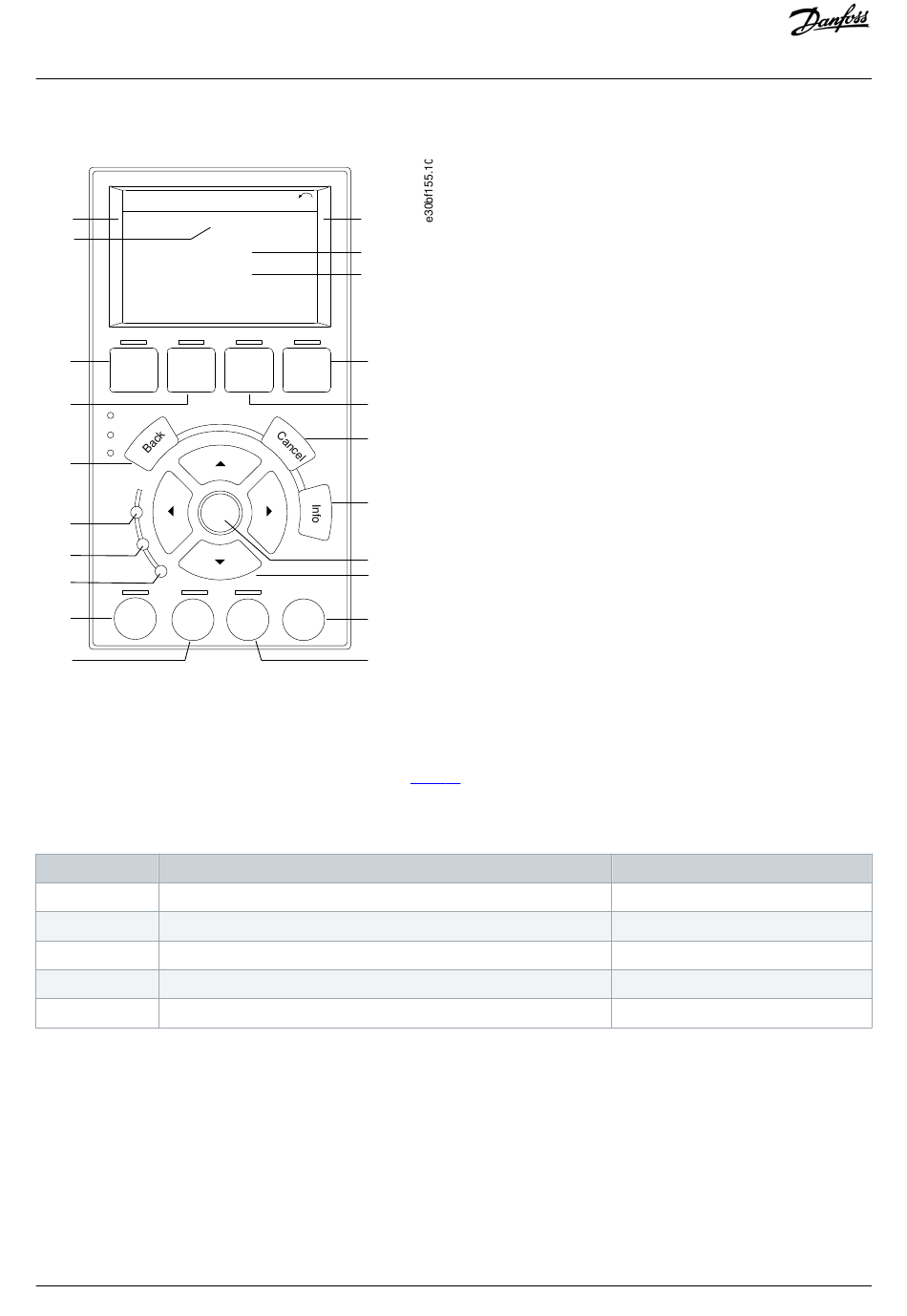

Illustration 9: Graphical Local Control Panel (LCP)
A. Display area
Each display readout has a parameter associated with it. See
specific applications. Refer to My Personal Menu in the LCP Menu section.
Table 15: LCP Display Area
Callout Parameter
A1.1 Parameter 0-20 Display Line 1.1 Small
A1.2 Parameter 0-21 Display Line 1.2 Small
A1.3 Parameter 0-22 Display Line 1.3 Small
A2 Parameter 0-23 Display Line 2 Large
A3 Parameter 0-24 Display Line 3 Large
B. Menu keys
Menu keys are used to access the menu for setting up parameters, toggling through status display modes during normal operation,
and viewing fault log data.
Danfoss A/S © 2018.10
1(1)
A1.3
0.00 kW
A2
0.0 %
A3
Stop
B4
Main Alarm
Menu Log
B3
C2
C3
OK
C4
C5
Auto
E3
Reset
On
E4
table 15. The information shown on the LCP can be customized for
Product Overview
Default setting
Reference [Unit]
Analog input 53 [V]
Motor current [A]
Frequency [Hz]
Feedback [Unit]
