4 Programming

4.1 Local Control Panel (LCP)

For detailed information on programming, see VLT® Micro DriveFC 51 Programming Guide.
The drive can also be programmed from a PC via RS485 com-port by installing the MCT 10 Set-up Software.
-
This software can either be ordered using code number 130B1000 or downloaded from the Danfoss web site:
foss.com.
1
Setup 1
2
Status
Menu
3
4
On
Warn
5
Alarm
Hand
On

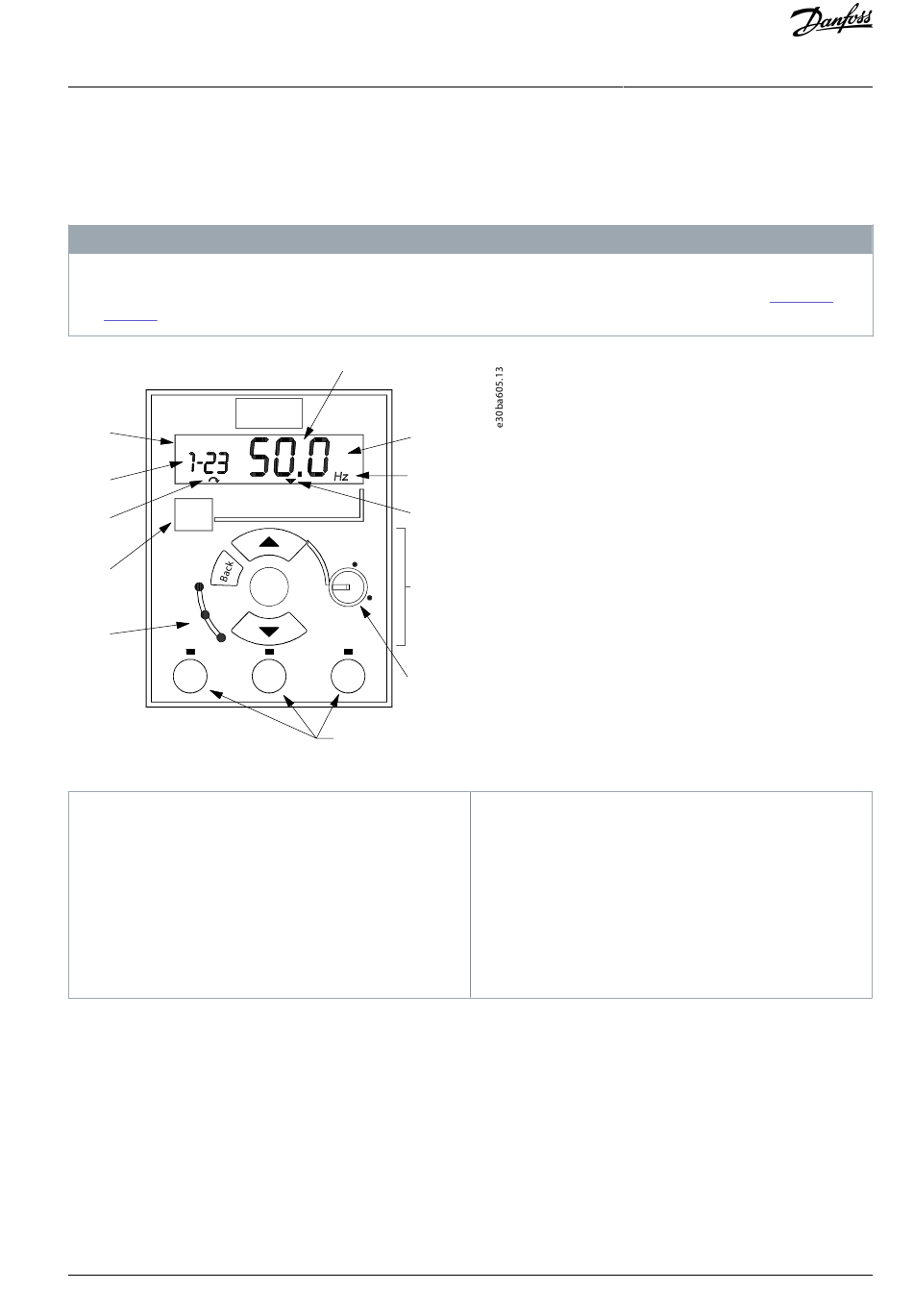

Illustration 7: Description of LCP Keys and Display
1 Set-up number
2 Parameter number
3 Motor direction
4 Menu key
5 Indicator lights
6 Operation keys and LED
Press [Menu] to select 1 of the following menus:
Status
For readouts only.
Quick Menu
For access to Quick Menus 1 and 2.
Main Menu
For access to all parameters.
Navigation keys
[Back]: For moving to the previous step or layer in the navigation structure.
[▵] [▿]: For manoeuvring between parameter groups, parameters, and within parameters.
[OK]: For selecting a parameter and for accepting changes to parameter settings.
Danfoss A/S © 2020.09
N O T I C E
12
11
10
Quick Main
Menu Menu
9
OK
8
Off Auto
Reset On
7
6
7 Potentiometer (LCP 12)
8 Navigation keys
9 Selected menu
10 Unit
11 Numeric display
12 Value
