4 Programming

4.1 Local Control Panel (LCP)

The drive can be programmed from the LCP or from a PC via the RS485 COM port by installing the MCT 10 Setup Software.
The LCP is divided into 4 functional sections.
• A. Display
• B. Menu key
• C. Navigation keys and indicator lights
• D. Operation keys and indicator lights
1
2
1-20 Motor Power
3
A
[5] 0.37kW - 0.5HP
Setup 1
4
Status
B
Menu
6
Com.
C
10
On
7
Warn.
8
Alarm
9
Hand
D
On
13

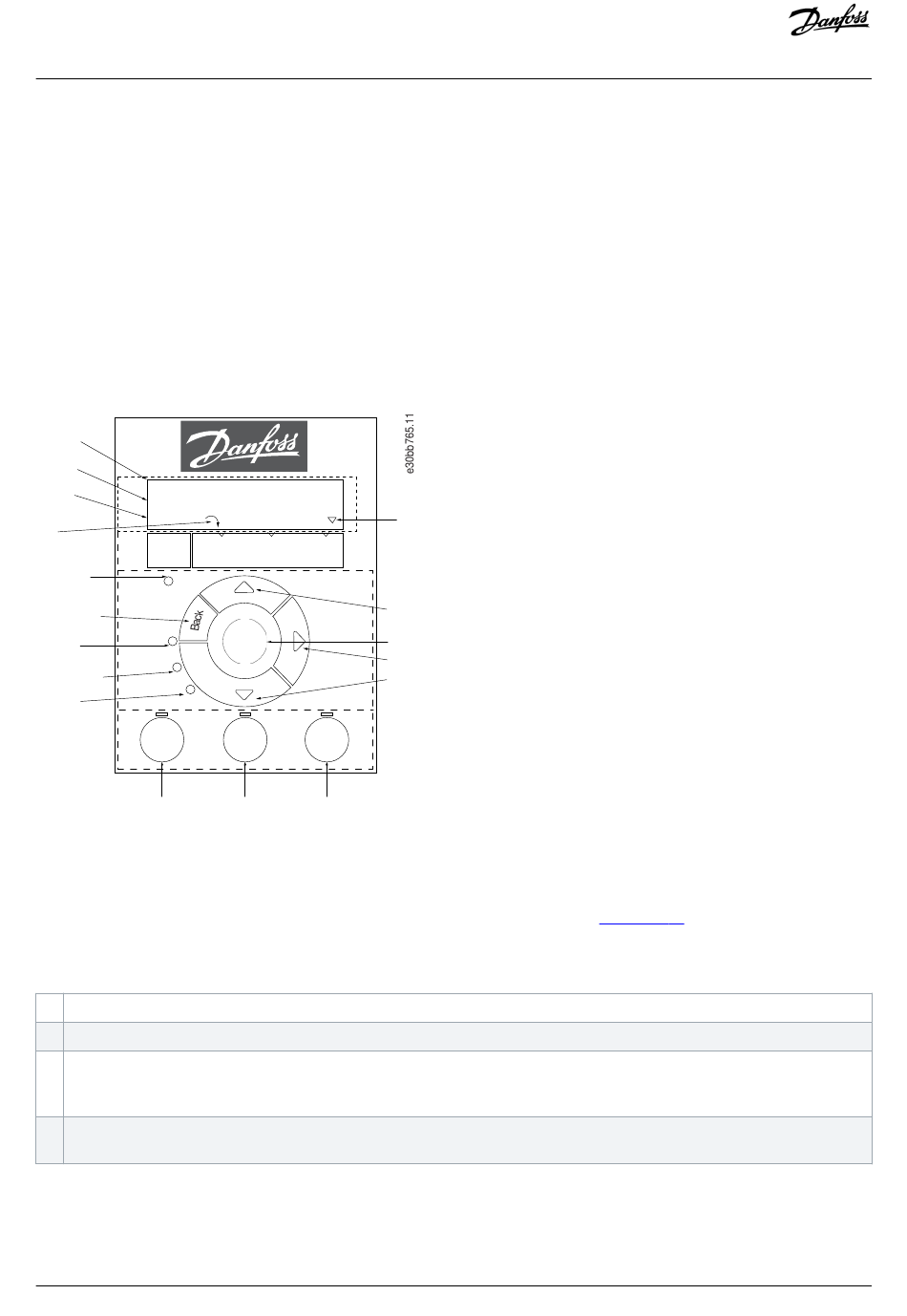

Illustration 13: Local Control Panel (LCP)
A. Display
The LCD-display is illuminated with 2 alphanumeric lines. All data is shown on the LCP. The
that can be read from the display.
Table 12: Legend to Section A
1 Parameter number and name.
2 Parameter value.
3 Setup number shows the active setup and the edit setup. If the same setup acts as both active and edit setup, only that setup
number is shown (factory setting). When active and edit setup differ, both numbers are shown in the display (setup 12). The
number flashing indicates the edit setup.
4 Motor direction is shown to the bottom left of the display – indicated by a small arrow pointing either clockwise or counter-
clockwise.
