Operating Guide | VLT® AQUA Drive FC 202

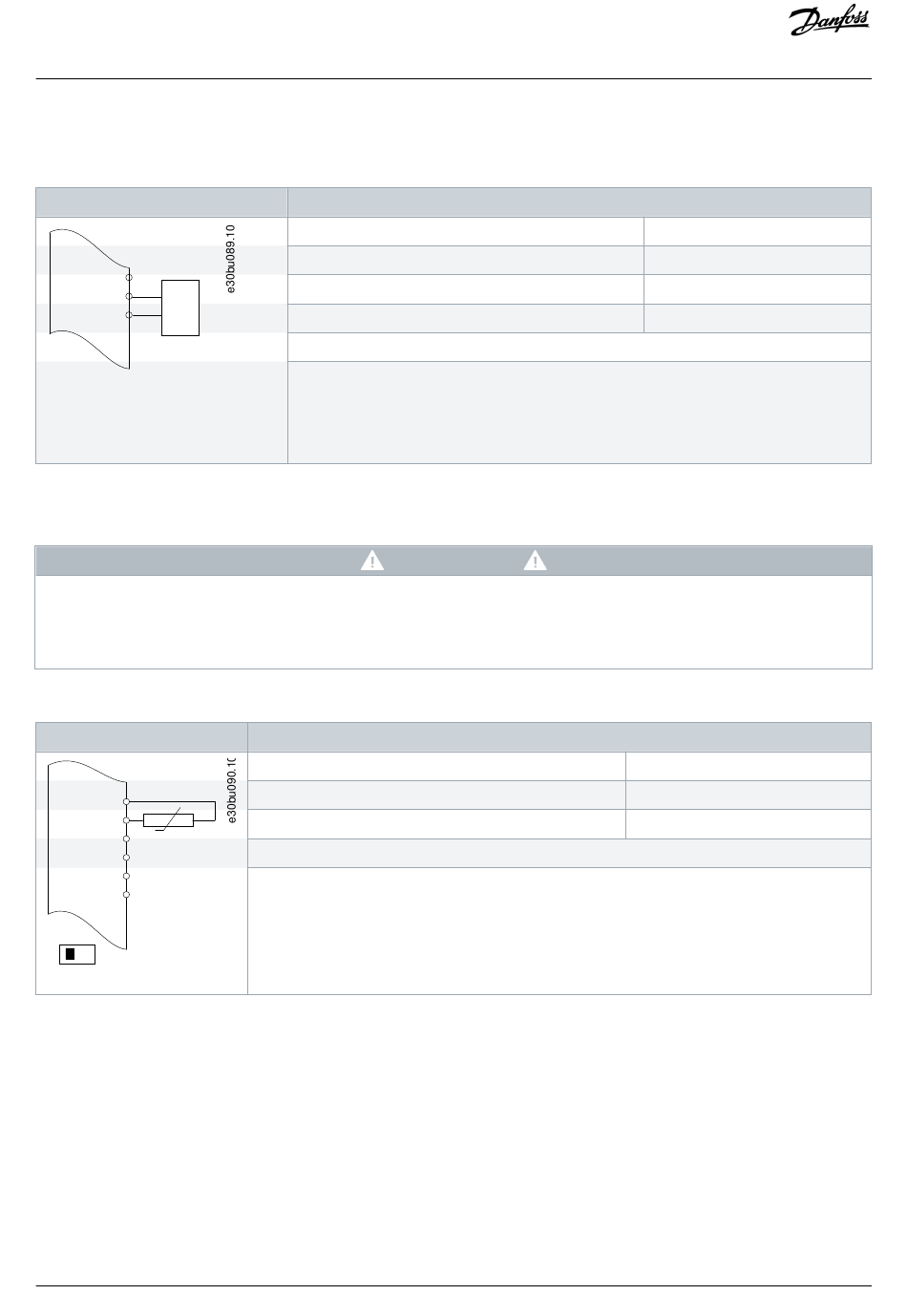

8.1.8 Wiring Configuration: RS485

Table 65: Wiring Configuration for RS485 Network Connection
RS485
XD2.10
+
XD2.11
XD2.12
-

8.1.9 Wiring Configuration: Motor Thermistor

THERMISTOR INSULATION
Risk of personal injury or equipment damage.
Use only thermistors with reinforced or double insulation to meet PELV insulation requirements.
-
Table 66: Wiring Configuration for Motor Thermistor
+10 V XD2.6
A IN XD2.7
A IN XD2.8
COM XD2.9
A OUT XD2.5
COM XD2.4
U - I
A53
120 | Danfoss A/S © 2018.10
Parameter
Function
Parameter 8-30 Protocol
Parameter 8-31 Address
Parameter 8-32 Baud Rate
*=Default value
Notes/comments:
Select protocol, address, and baud rate in the above-mentioned parameters.
D IN 37 is an option.
C A U T I O N
Parameters
Function
Parameter 1-90 Motor Thermal Protection
Parameter 1-93 Thermistor Source
* = Default value
If only a warning is required, set parameter 1-90 Motor Thermal Protection to [1] Thermistor warn-
ing.
D IN 37 is an option.
Input 53 in the parameter corresponds to terminal XD2.7 in the control compartment.
Wiring Configuration Examples
Setting
FC*
1*
9600*
Setting
[2] Thermistor trip
[1] Analog input 53
AQ262141056213en-000101 / 130R0882
