Danfoss VLT AQUA Drive FC 202 Operating Manual page 90
110-800 kw, enclosures d9h-d10h and e5h-e6h
Hide thumbs
Also See for VLT AQUA Drive FC 202:
- Installation manual ,
- Programming manual (770 pages) ,
- Design manual (228 pages)
Table of Contents
Advertisement
Operating Guide | VLT® AQUA Drive FC 202
Example:
1
2
3
1 Cabinet screen (upper)
3 Factory-installed power cables from the drive module
5 Motor terminals

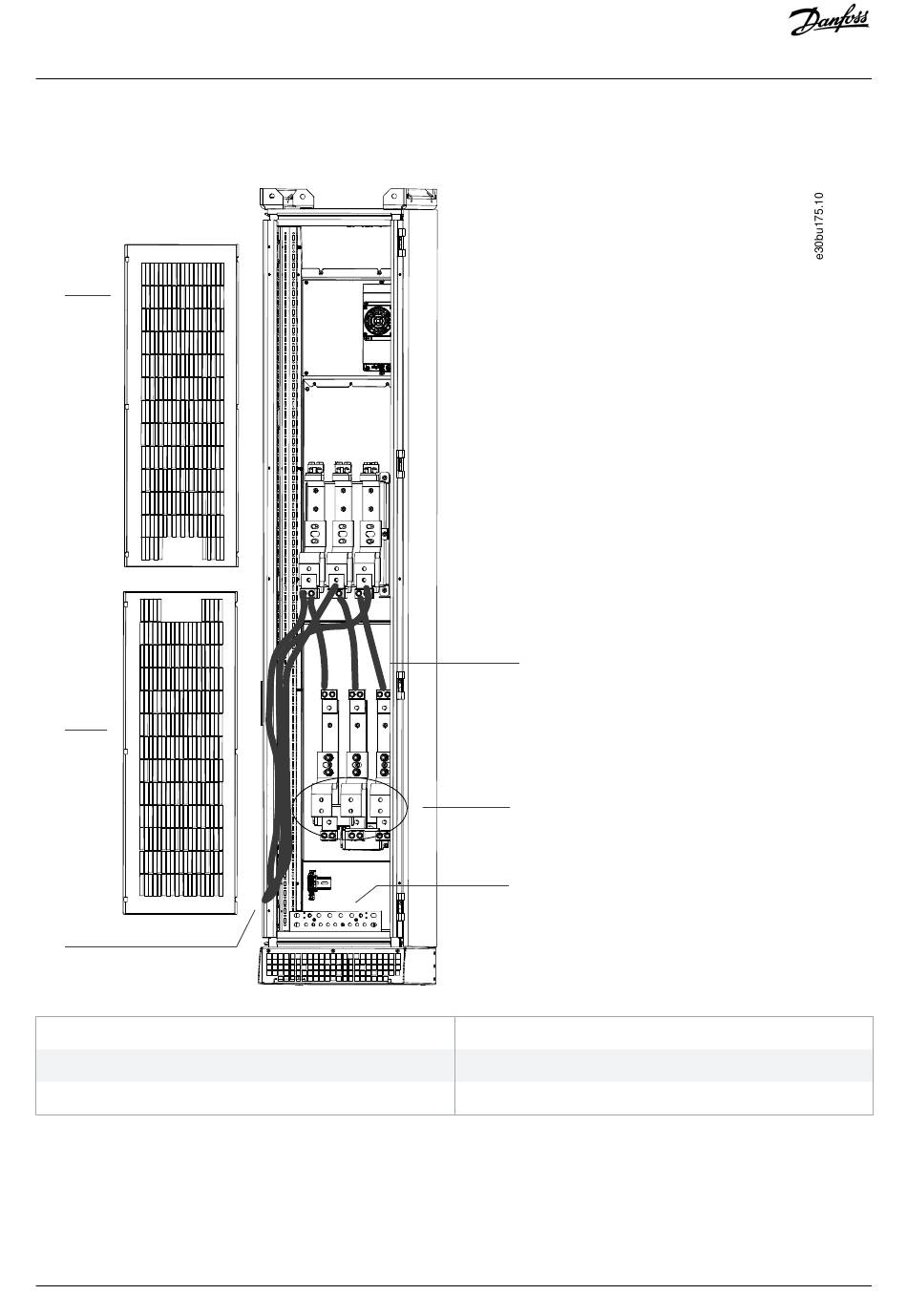

Illustration 54:
Connection Points for the dU/dt Filter to Motor
90 | Danfoss A/S © 2018.10
4
5
6
2 Cabinet screen (lower)
4 Factory-installed cables
6 Grounding bar
Electrical Installation
AQ262141056213en-000101 / 130R0882
