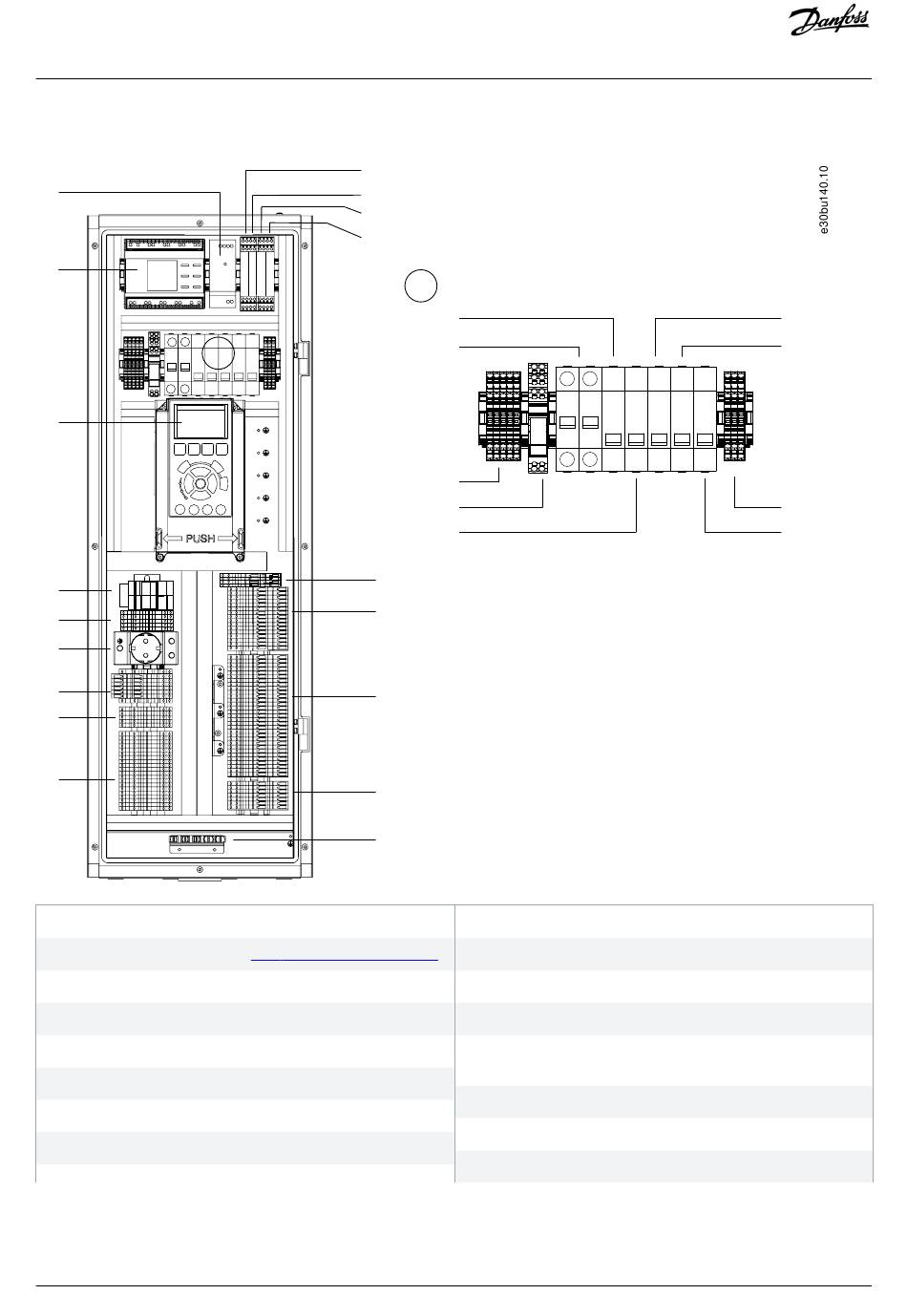

5.7.2 Control Compartment Interior View

1
2
3
4
5
6
7
8
9
1 24 V DC supply (-TB7)
3 Local control panel (LCP). See
5 Protection terminal block set (-XD11)
7 Contactor control circuit terminal block (-XD0)
9 Customer terminal block/option C0 terminal block (-XDW)
11 Thermal trip indicator relay, output filter cabinet (-KFJ.2)
13 PHF capacitor connect/disconnect contactor relay (-QAF)
15 AC circuit protection MCB (-FC6)
