3.6.3 Local Control Panel (LCP)

Status
A1.1
0.00 A
0 RPM
A1.2
0.0 Hz
0.0 %
Off Remote Stop
B1
Quick
Status
Menu
B2
C1
On
D1
Warn.
D2
Alarm
D3
Hand
E1
Off
On
E2

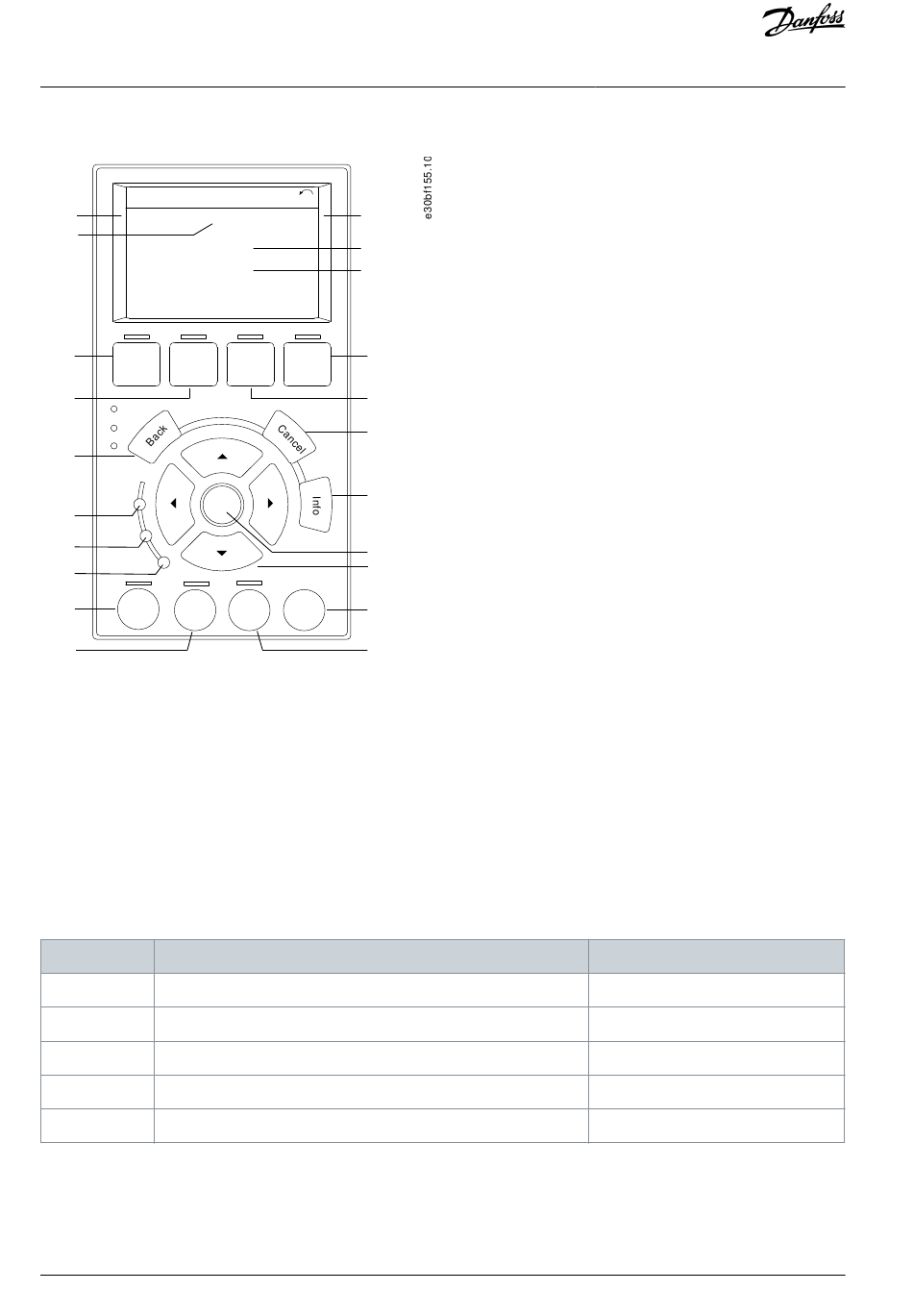

Illustration 9: Graphical Local Control Panel (LCP)
The local control panel (LCP) is the combined display and keypad on the front of the drive. The LCP is used to:
• Control the drive and motor.
• Access drive parameters and program the drive.
• Show operational data, drive status, and warnings.
A numeric local control panel (NLCP) is available as an option. The NLCP operates in a manner similar to the LCP, but there are
differences. For details on how to use the NLCP, see the product-specific programming guide.
A. Display area
Each display readout has a parameter associated with it. The information shown on the LCP can be customized for specific applica-
tions. Refer to My Personal Menu in the LCP Menu section.
Table 33: LCP Display Area
Callout Parameter
A1.1
Parameter 0-20 Display Line 1.1 Small
A1.2
Parameter 0-21 Display Line 1.2 Small
A1.3 Parameter 0-22 Display Line 1.3 Small
A2 Parameter 0-23 Display Line 2 Large
A3
Parameter 0-24 Display Line 3 Large
B. Menu keys
Menu keys are used to access the menu for setting up parameters, toggling through status display modes during normal operation,
and viewing fault log data.
