Operating Guide | VLT® AQUA Drive FC 202
1
2
3
-XD11.1
4
-XD4.1
1 Additional terminal connections
3 DC-link harness to fan supply in drive cabinet
5 Motor cables (U/V/W) to motor terminals (U/V/W) in drive
cabinet

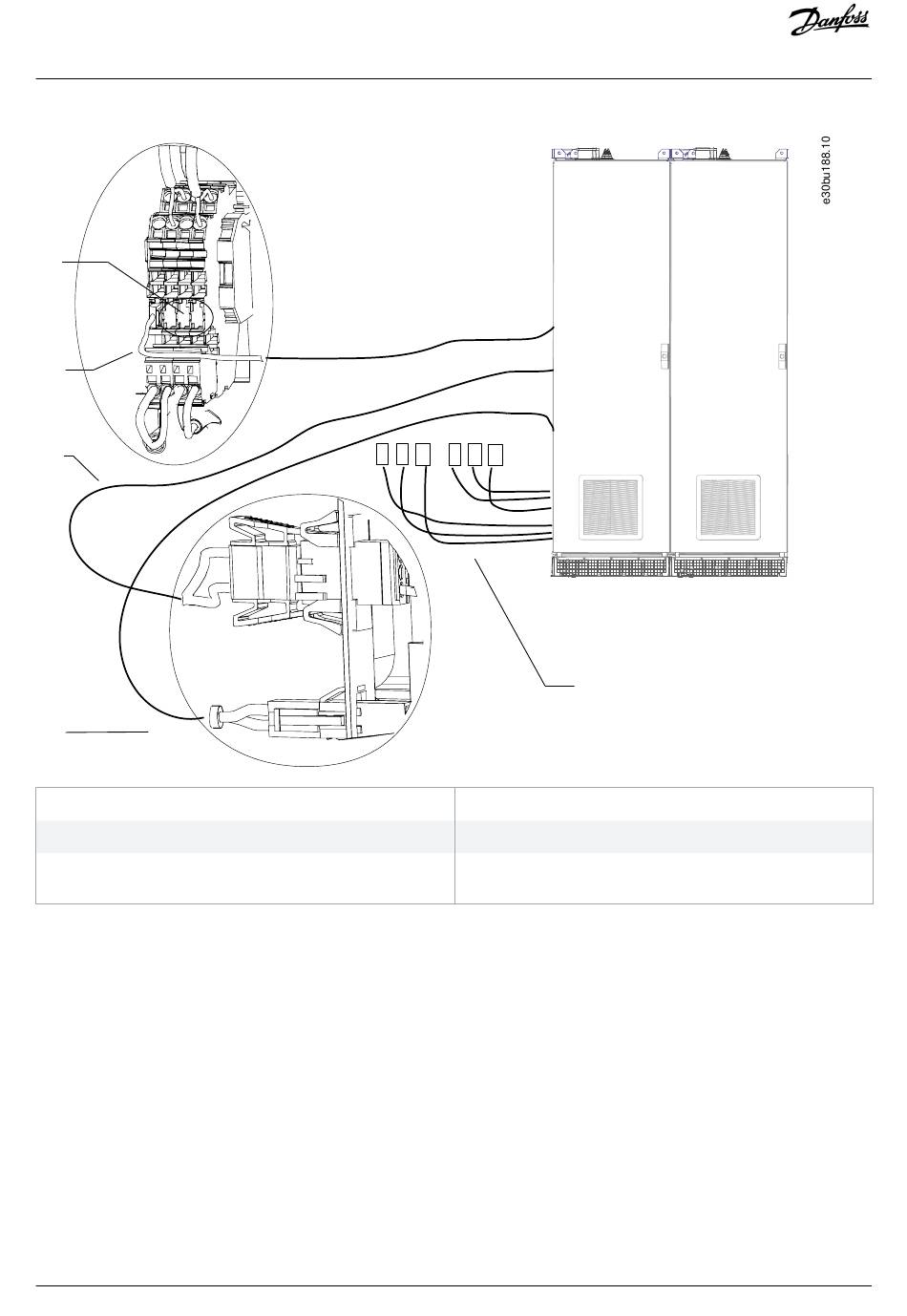

Illustration 31:
Split Shipment Electrical Connections (E5h/E6h Sine-wave Cabinets)
Danfoss A/S © 2018.10
-XDL.1
U
V
W
U
V
W
5
2 Thermal protection wiring harness to drive cabinet
4 Cabinet heater supply harness to drive cabinet
AQ262141056213en-000101 / 130R0882 | 57
Electrical Installation
